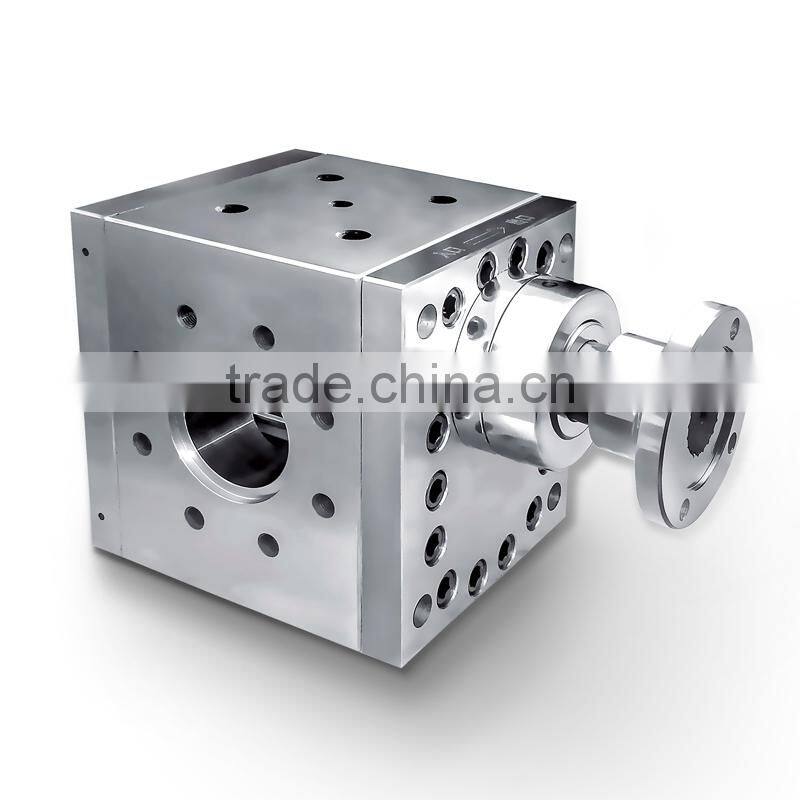

Batte stainless steel high temperature tool steel spinning machine pump
- 100 Set / Sets per Month
- China main port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Batte stainless steel high temperature tool steel dosing pump
-
Batte stainless steel high temperature tool steel extrusion pump
-
Batte stainless steel high temperature tool steel pump
-
Batte stainless steel high temperature tool steel rubber pump
-
Batte stainless steel high temperature tool steel chemical pump
-
Batte stainless steel high temperature tool steel metering pump
Product Details
Place of Origin | Henan, China | Brand Name | BATTE | |
Model Number | ZB | Theory | Rotary Pump | |
Structure | Gear Pump | Usage | Other, thermoplastic transportation | |
Power | Electric | Standard or Nonstandard | Standard | |
Fuel | Other, with motor drive | Pressure | High Pressure | |
Application | Metering |
Product Description
Batte Machinery Zhengzhou Co.,Ltd is a professional manufacture for melt pump, screen changer and feeder product. Batte integrates production development, research, sales and after-sale services.Our experienced and innovative technical team successfully develop multiple practical screen changer based on technology accumulation for many years. Batte is one of few enterprise to master non-stop screen changing technique. Our company has long-term cooperation with many enterprises, and enjoy great honor from home and abroad.
All raw material and spare parts of products are selected carefully and assembled with skilled experience. Pre-delivery debugging of melt pump is the best quality assurance before they are leaving the factory.
Standard Standard or Nonstandard and High Pressure Pressure Screw Pump

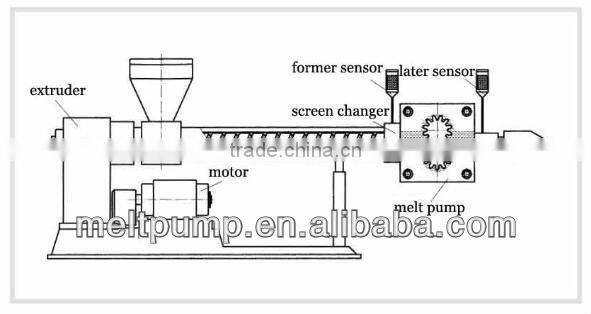

Batte Melt Pumps: Extrusion Line Synchronization Made Easy
You can eliminate extruder surge and screw beat at the die by installing an melt pump between your extruder and die. Our melt pumps are extremely efficient at building pressure and metering polymer to the die at a highly consistent rate and pressure.
Batte Melt pumps come in a variety of types and sizes to fit the needs of your extrusion, compounding or polymer production process.
Batte machinery components, systems and know how in plastics can help you reduce costs, increase output and/or improve product quality in your extrusion operation.
1.Strengthen your technology by drawing on the extrusion expertise of Batte for equipment and processing recommendations.
2. Streamline your supply chain by relying on Batte for more of the key components of your process
melt pump for extrusion
Technical data:
1.Rotate speed: ≤60rpm(Adjustable)
2.Temperature: 400°C (max.)
3.Max.Outlet pressure: 350Bar
4.Max.Differential pressure: 275Bar
5.Heating method: Stainless Steel Cartridge Heater
6.Fastening parts: 12.9 high-strength screws
7.Voltage: 380V(Others are optional)
8.Frequency: 50Hz(Others are optional)
melt pump for extrusion
Pump Mode | Deliver Capacity | Output | Heat Power | Drive Power |
Melt pump | cc/rpm | L/H | Kw | Kw |
ZB-0.2 | 0.2 | 0.1-1 | 0.5 | 0.37 |
ZB-1 | 1 | 0.5-5 | 1 | 0.5 |
ZB-2 | 2 | 1-10 | 1 | 0.75 |
ZB-5 | 5 | 2.5-25 | 1 | 1.1 |
ZB-10 | 10 | 5-50 | 1 | 1.5 |
ZB-20 | 20 | 10-100 | 2 | 2.2 |
ZB-31.5 | 31.5 | 15-145 | 2 | 3 |
ZB-50 | 50 | 25-225 | 2 | 4 |
ZB-100 | 100 | 50-450 | 3 | 5.5 |
ZB-150 | 150 | 75-675 | 4 | 7.5 |
ZB-200 | 200 | 100-900 | 4 | 11 |
ZB-250 | 250 | 125-1125 | 5 | 15 |
ZB-315 | 315 | 155-1415 | 6 | 18.5 |
ZB-500 | 500 | 250-2000 | 10 | 22 |
ZB-800 | 800 | 400-2880 | 15 | 30 |
ZB-1000 | 1000 | 500-3600 | 18 | 37 |
ZB-1500 | 1500 | 750-5000 | 20 | 45 |
melt pump for extrusion
Melt Pump Parameter:
Max Outlet Pressure: 700Bar
Max Inlet Pressure: 20Bar
Max Pressure Deviation: 500Bar
Viscosity:20000Pa.s
Temperature: 510°C
We also can design special pump size according to customers’need.

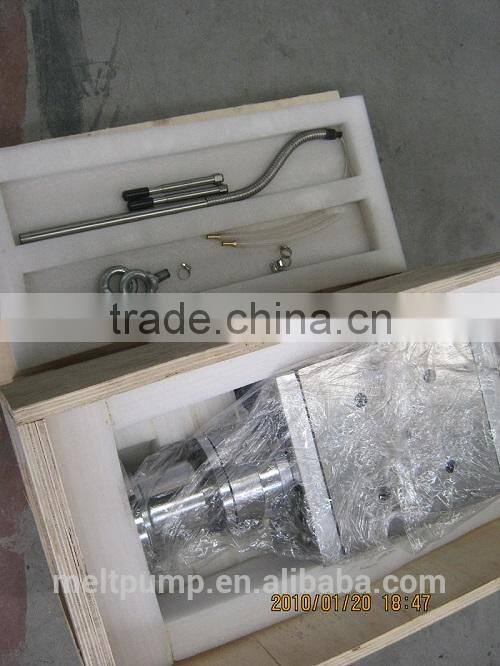

Packaging: polywood cases
Shipping
Customer can choose air transportation or sea transportation.
1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technicia
team, and we own adequate experience for production line transformation project.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
When we choose the model of melt pumps, we should know your information.
1.Customer's equipment, extrusion line, reactor or pipeline.
2.What is the material of customer production line?
3.If your equipment is extrusion line, Is it twin extruder or single extruder, what is the capacity?
4.What is the temperature of production line?
5.What is the material viscosity? The viscosity will effect the speed of melt pump.
6.How much the pressure of production ine, input pressure and output pressure?
You give us the above information, we can select melt pump and give you quotation as soon as we get your inquiry.
