China Low Price Automatic Mini Dosing Screw Feeder for Pigment

China Low Price Automatic Mini Dosing Screw Feeder for Pigment photo-1

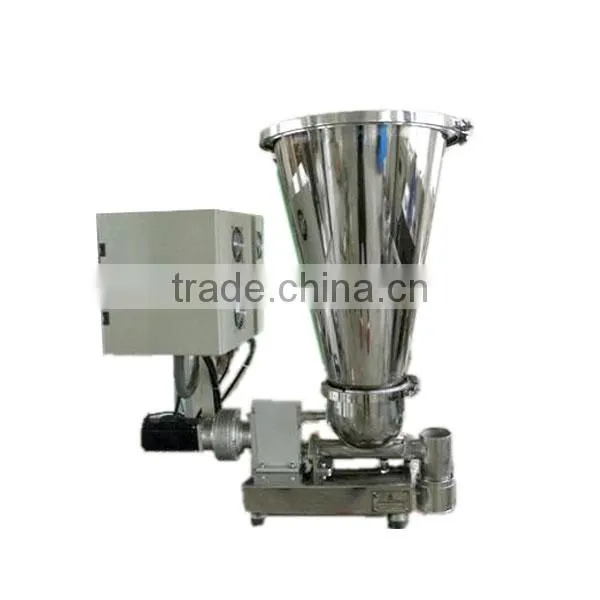

China Low Price Automatic Mini Dosing Screw Feeder for Pigment photo-2
China Low Price Automatic Mini Dosing Screw Feeder for Pigment photo-3

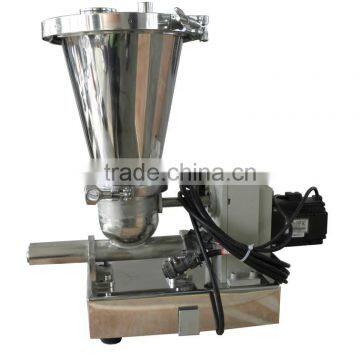

China Low Price Automatic Mini Dosing Screw Feeder for Pigment photo-4
US$ 9,200 - 9,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Plastic Industry
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Main Ports of China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Plastic Industry
Place of Origin Henan, China
Brand Name Batte
Model Number BAT-MF-SS28
Voltage Usual
Power(W) 1.1kw
Dimension(L*W*H) loss in weight feeder
Weight loss in weight feeder
Certification BV CE
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

China low price automatic mini dosing screw feeder for pigment

Product Description



1. Introduction of BAT-MF-SS28 mini dosing screw feeder

Batte is a professional manufacturer of weightlessness feeding equipment. Batte feeding system with high accuracy can totally satisfy the fields of pharmaceutical industry, chemical industry, food, plastic and rubber and so on.

BATTE single screw loss-in-weight feeder product is widely applied in the filed of plastic, rubber, chemical, food, pharmaceutical industry, etc.



2. Features of BAT-MF-SS28 mini dosing screw feeder

With the core technology and independence R&D capacity, loss-in-weight feeder has rich application experience in many field and industries. With the advantages as following:

1). Wide range of application, suitable for plastic granules, power, calcium carbonate, talcum powder, resin membrane powder, flour, starch and so on.

2). Convenient assembly and disassembly, easy to clean up.

3). Technical strength, German original technical equipment, performance pre-sales guidance service.

4). Stable discharging performance, high precision, wide range of output capacity.

5). The static accuracy of loo-in-wight can reach 0.1%, repetitive dynamic accuracy can reach 0.3%.

6). The control instrument of weight loss scale choose RWC-800CF, high precision, high anti-interference performance and more real-time.



3. Parameters of BAT-MF-SS28 mini dosing screw feeder

Type

Screw

specification

Capacity

(L/H)

Driving power

(kw)

Hopper

(optional)

Feeding

 accuracy

BAT-MF-SS 28

28

10-100

1.1

40-80

±0.2%

BAT-MF-SS 38

38

30-300

1.1

40-100

±0.2%

BAT-MF-SS 46

46

40-400

1.5

40-120

±0.2%

BAT-MF-SS 64

64

50-500

2.2

40-150

±0.2%

4. Working Principle of BAT-MF-SS28 mini dosing screw feeder

The whole control system is closed-loop system. The system operates real-time collection for material weight at 5 frequency per second with speed accuracy 1/2 million, calculates the material flowing rate at real time, and adjusts the driving part speed to amend the real-time flowing rate so as to achieve stable and accurate feeding purpose.

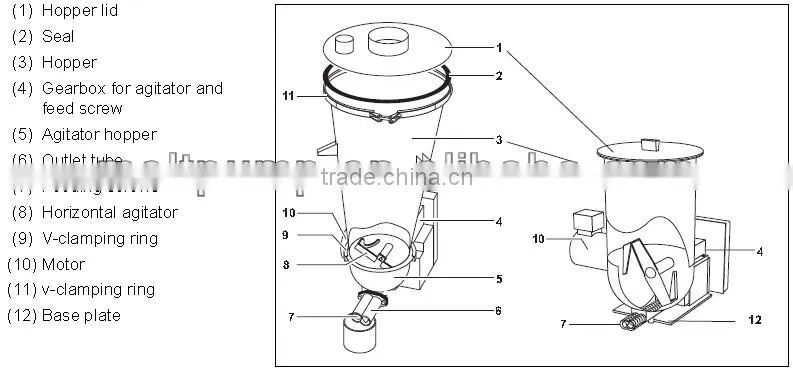

China low price automatic mini dosing screw feeder for pigment



China low price automatic mini dosing screw feeder for pigment

Application



China low price automatic mini dosing screw feeder for pigment



Successful Case



China low price automatic mini dosing screw feeder for pigment

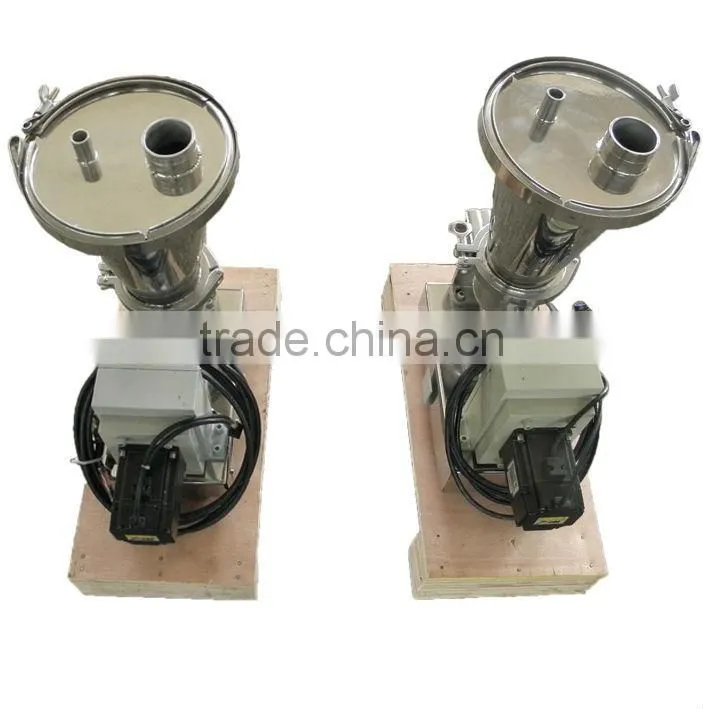

Packaging & Shipping

China low price automatic mini dosing screw feeder for pigment





Our Services

Batte persists in the business philosophy that technology goes with quality: technology is the root, innovation is the soul, customers come first.

1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance.

2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.

  • When trainning your operators, our engineers will give them advice on how to operate the machines correctly;
  • We will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
  • Call us at any time if you have problems about our equipment;
  • If needed, we will send engineers to your site to solve your problems.

3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.

4. Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;



Company Information

Batte is high-tech company which integrate R&D, design and manufacture. Batte’s main product includes high-qualified screen changer, metering gear pump, extrusion dies. Batte has advanced processing equipment and rich experience in production, has a perfect quality control system and perfect after-sale service system. Batte has right to import and export.

Batte have extra years experience in melt filtration system. And Batte make our products multivariate, long lived, with high degree of accuracy, leak-proof, and so on, to stand out in our profession and take leading position so that we are welcomed and trusted by the market. And combination with the practical requirements of customers, continuously improve the quality of products and using function to meet customers’ demand for products of high quality.

Our product are exported to Taiwan, Japan, USA, Turkey, Mexico, Brazil, Russia, India, Malaysia, Vietnam, Iran, and other countries and regions and received high praised by our customer.

Our advantages:

1. we have CE,ISO,SGS and BV certificate;

2. we have 11-year experience;

3. we are a leading brand in China;

4. we have over 100 workers to ensure quick delivery;

5. we have 10 engineers to design special concrete plants for our customers;

6. we have after sales service like: installation, debugging, operator trainning and spare parts supply.



FAQ

1. Which melt pump size we can use?

Before recommending our proper melt pump model for you, we need to confirm with you the following points:

1.1. The production line and the final product;

1.2. The material you deal with;

1.3. The viscosity of your material;

1.4. The hourly output;

1.5. The working temperature;

1.6. The working pressure;



2. What is your MOQ;

At present, our MOQ is 1 set;



3. How long is the delivery time?

In general, the delivery time is 4-5 weeks.



4. What is your guarantee term?

The warranty period for our products is one year.During the warranty period, the seller is responsible for replacing free damageable parts , while the buyer pays for freight.



5. How about the oversea installation and debugging?

Our engineer can be assigned for installation and debugging. Or we can use long-distance technical assistance based on Industry 4.0.
