Specifications
autoclave machine1.German technology
2.Hi-tech, high capacity and efficiency
3.Export to 20 foreign contries
4.CE,ISO

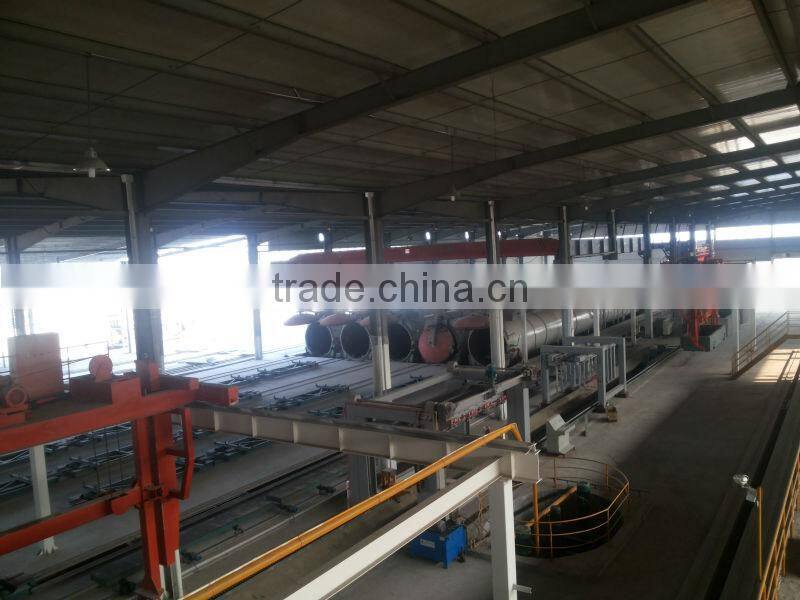

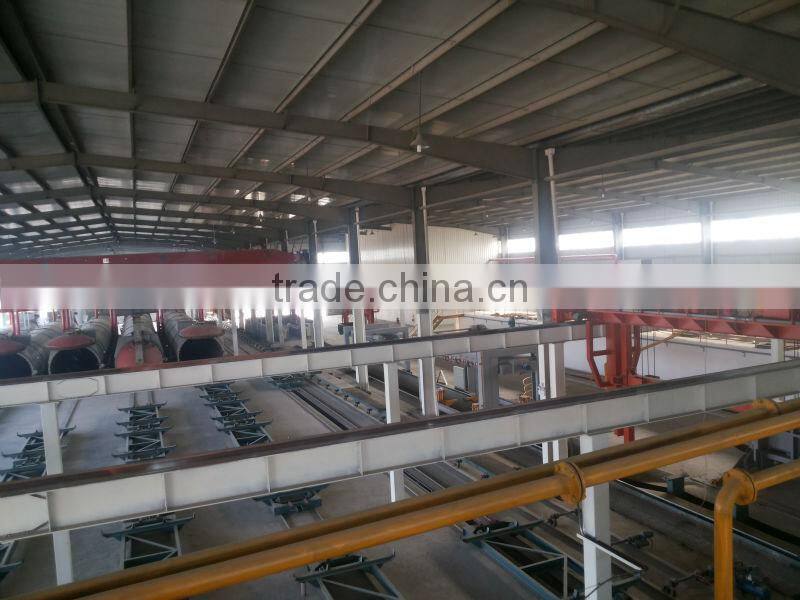

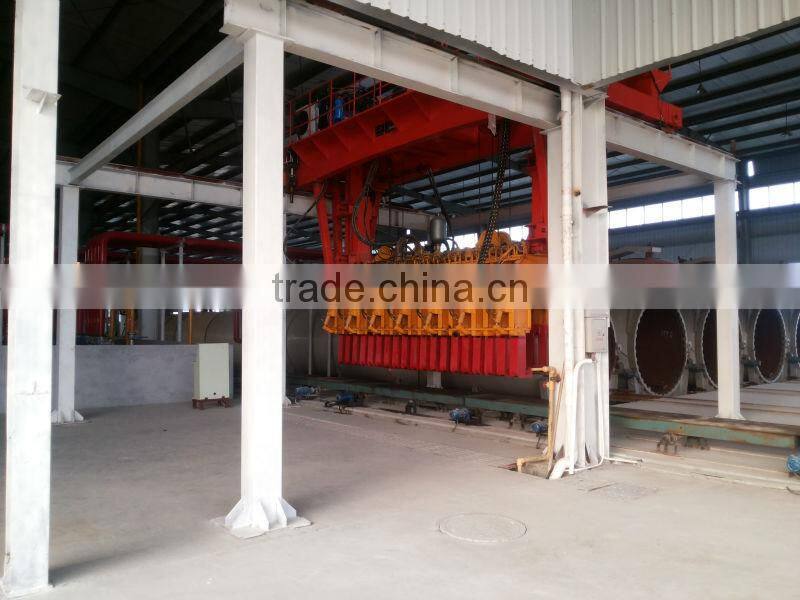

AUTOCLAVE for AAC PLANT
Introduction to this machine
This product is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, metallurgy, military industry. Convenient operation, security and reliable are its advantages.
Autoclave belongs to pressure vessel which has explosion risk. According to the supervision regulation on safety technology for pressure vessel on divide standard of pressure vessel, the product is part of first and second class pressure vessel. Before putting into operation, the end-user must register in the local boiler and pressure vessel safety supervision organization and acquire the operation permit, at the same time it must accept supervision and inspection.
This product is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, metallurgy, military industry. Convenient operation, security and reliable are its advantages.
Autoclave belongs to pressure vessel which has explosion risk. According to the supervision regulation on safety technology for pressure vessel on divide standard of pressure vessel, the product is part of first and second class pressure vessel. Before putting into operation, the end-user must register in the local boiler and pressure vessel safety supervision organization and acquire the operation permit, at the same time it must accept supervision and inspection.
Item | Type | ||||||
FGZSS1.5-1.65*L | FGZCS1.5-2*L | FGZSS1.5-2.5*L | FGZSS1.5-2.68*L | FGZSS1.5-2.85*L | FGZCS1.5-3*L | FGZCS1.5-3.2*L | |
Inner diameter | Ø 1.6m | Ø 2m | Ø 2.5m | Ø 2.68m | Ø 2.85m | Ø 3m | Ø 3.2m |
Length*1 | L | L | L | L | L | L | L |
Designed pressure | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa |
Designed temperature*2 |
204°C |
204°C |
204°C |
204°C |
204°C |
204°C |
204°C |
Max operation pressure | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa |
Max operation temperature | 201°C | 201°C | 201°C | 201°C | 201°C | 201°C | 201°C |
Medium | Saturated steam | ||||||
Track gauge/height | 600mm/ 150mm | 600mm/ 150mm | 800mm/ 200mm | 800mm/ 250mm | 963mm/ 280mm | 1220mm/320mm | 1220mm/ 320mm |
Corrosion allowance | 2mm | 2mm | 2mm | 2mm | 2mm | 2mm | |
