Specifications
concrete Blockmaking machine1.SIMENS &ABB motor
2.ISO9001/CE/SGS/ famous trademark
3 Competitive price with large capacity

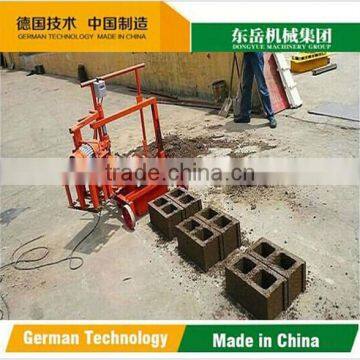

Features & Advantages of QT40-3C cement brick making machine
a. Superior vibratory effect: The vibration method of QT 40-3C block making machine is simultaneous vibration. so the blocks produced are of good quality, large density and high strength.
b.Solid and Strong Machine Body:We use the best steel Q235B, which is featured by
high efficiency and high strength. The usage of CO2 gas protective welde makes the
plate unable to break.
c.High Quality Mould: All mould use heat treatment.
d.Less Worker Force:There are two vibrators in up and down mould for simultaneous
vibration.
e.Low cost and user-friendly:Qt 40-3C does not need pallet. So It is easy to operate,
reducing labor force.
f.Durable and cost-effective: Our motor use German brand Siemens.switch is schneider brand,so we can provide u with higher quality product with competitive price than other Chinese manufacturers.
g.Perfect after-sale service:Our machine is guaranteed for one year and our staff is
available 24 hours a day,7 days a week. u can get pre-installation support, project
report support
Material Proporation of QT 40-3C cement brick Making Machine
1. 8-10% cement, 30-40 % sand , 50-60% crushed stone.
2. 8-10% cement, 30% flyash, 60% sand or stone powder
We can provide you:
Technical Parameter of QT40-3C cement brick Making Machine
| Dimension of host machine | 920×800×1260mm |
| Voltage | 380V or adapt to your local voltage |
| Moulding peiod | 40-50s |
| The size of the pallet | no need pallet |
| Weight of the machine | About 0.2T |
| Host Machine Power | 1.5KW |
| Vibration Force | 30KN |
| Capacity | 1200pieces/shift |
| Mixer Model | JD350 |
| Workshop Area | 60m2 |
Theoretical Production Capacity of QT40-3C cement brick making machine
QT40-3C egg laying block making machine is available in
different color. such as blue, yellow, red etc...
QT40-3C concrete Block making machine is put into LCL
1. Long History with Rich experience
Dongyue Machinery Group, located in Linyi city, Shandong Province includes 7 subsidiaries.With registered asset of 174 million RMB, total assets of 754 million RMB and building area of 300,000 square meters, Dongyue Machinery Group covers an area of 700 acres.With 20 years experience, our customers come from Middle East,South East Asia , Africa, South American and we has exported more than 40 countries.Our block machine has provided more than 1,000 sets of block machines to different customers to make huge profit.
Our company's personnel
Layout Chart of our Factory
2.Sincere Service Return to Customer
We always adhere to the principle of " lean management, pursuit of excellence" and has the courage to challenge the summit of science and technology
3. Certificate with Honours
1.Donyue Machinery Group is the first one to get the famous trade mark of China among the
enterprises of same industry in China.
2.The company was the first in the industry to get ISO9001:2000 certification and theCE marking
4. Active existence in various exhibition
Every year we attend many professional exhibitions for example concrete shows .Bauma
exhibition,construction shows etc

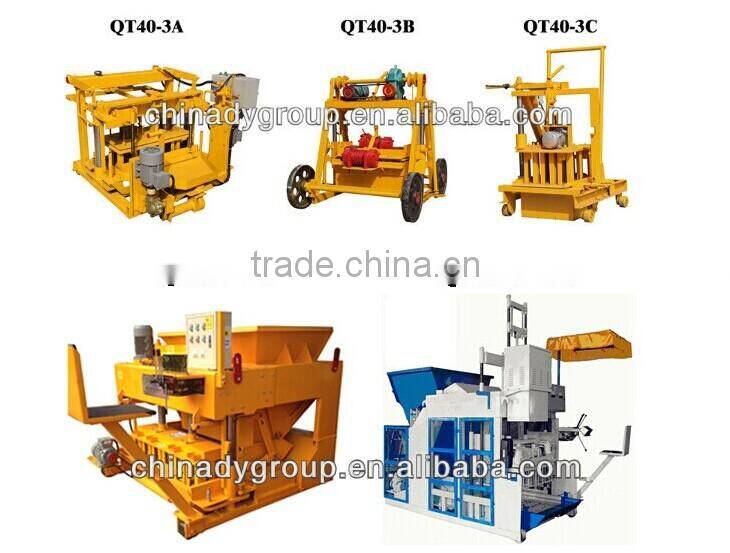

Video Links of QT 40-3c Block Making Macine and Other types of Block Making Machine Of Dongyue Brand
QT40-3c /programs/view/YGGsLDLQjvA/
For more information, just contact us without hesitation.
Website:
Contact: Sara Zhang
Mobile: +8618306522565
(Whatsapp, Viber and Wechat)
Skype: Sara Zhang
