Specifications
hot-blast boiler1.ISO9001/ASME certification
2.100 percent of heat conversion efficiency
3.excellent quality
1.Product features:

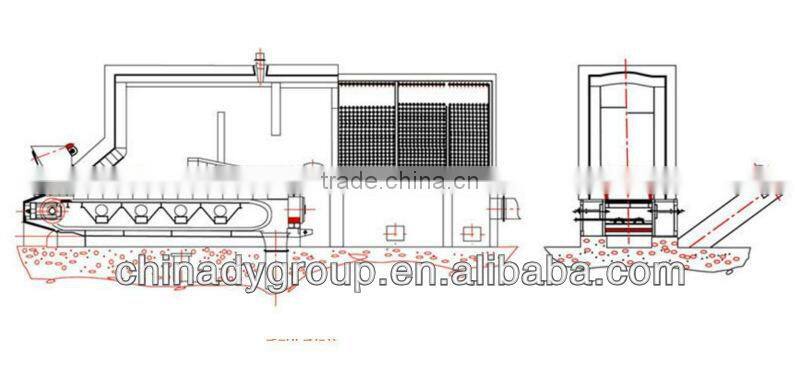

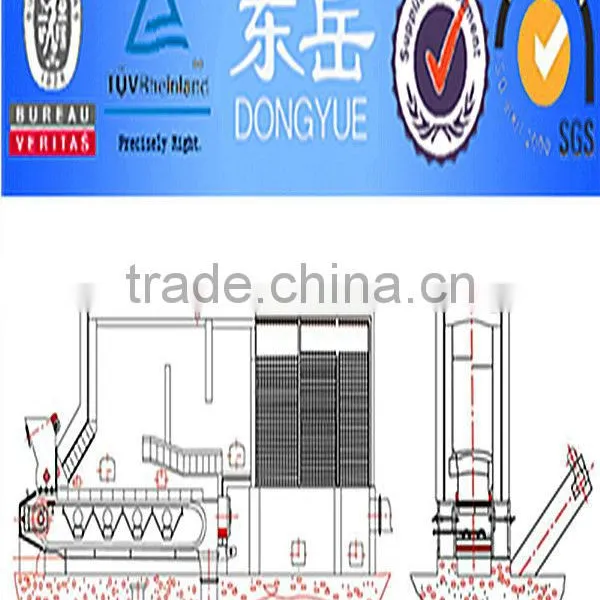

Because it shall be another new product of research and development, absorbing the advantages of SZL series
coalfired boiler and belonging to a type of heating equipment of mechanical coal supply, mechanical deslagging
with the application of chain grate combustion, the JRL series hot blast boiler shall reduce the labor intensity of
stokers. At the same time, the application of most refractory products masonry to the boiler resulted in long
boiler life, steady combustion, as well as 80 per cent thermal efficiency. The series product shall be used widely
on chemical, food, and construction industry.
2.Main Specifications of JRL Series Hot-blast Stove
boiler model items | JRL-180 | JRL-240 | JRL-300 | JRL-360 | JRL-420 | JRL-480 | JRL-600 | JRl-720 | JRL-840 | JRL-900 |
rated heat output ( MJ/h ) | 7500 | 10000 | 12000 | 15000 | 18000 | 20000 | 25000 | 30000 | 35000 | 38000 |
thermal efficiency % | >78 | >78 | >78 | >78 | >78 | >78 | >78 | >78 | >78 | >78 |
coal consumption ( Kg/h ) | 400 | 533 | 667 | 800 | 950 | 1067 | 1333 | 1630 | 1900 | 2040 |
blast capacity ( m 3 /h ) | 35000 | 40000 | 55000 | 70000 | 80000 | 100000 | 120000 | 135000 | 150000 | 180000 |
