Specifications
EXTRUDER barel1.High speed steel screw
2.50~1500kg/h
3.easy operation
4.CE;ISO9001
Dear friend, welcome to Haisi!
Details:
1) Screw diameter : 22~133mm. L/D= 28~68
2)Main drive motor :AC 5.5~550kw,speed regulated by ABB transducer inported from switzerlad
3)Screw rotary speed:50~800rpm
4)Screw shaft is made of high-strength alloy 40CrNiMoA.
5) Barrel is totally 6~17 pieces of barrels
6)The 1st barrel is the main feeding vent,Genarally speeking,the 5th is for degassing,8th is vacuum section,and the others are closed barrels.
7)Casting copper heaters for 2.3th barrels.The others are equipped with casting aluminum heaters
8)Reducing and distributing gearbox:
The gearbox reduces the motor speed to the speed of the screw shafts and distributes it to the 2 output shafts,
this gearbox output torque can reach 7.5T/A3
The gearbox consists of:
l Involute gear teeth couplings between the output shaft and screw shafts
l Integrated thrust bearing assembly,radial bearings of the output axis are NSK products
l Bottom part of casing designed as oil sump

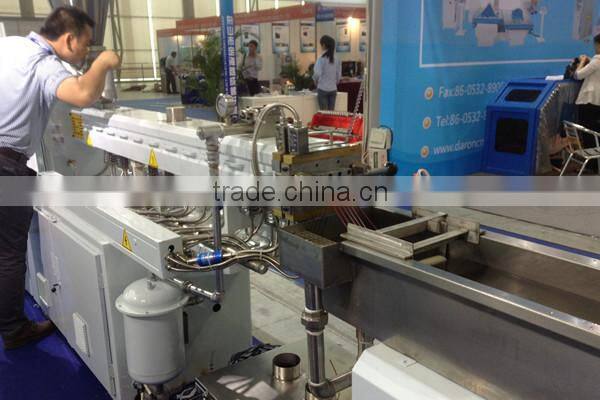

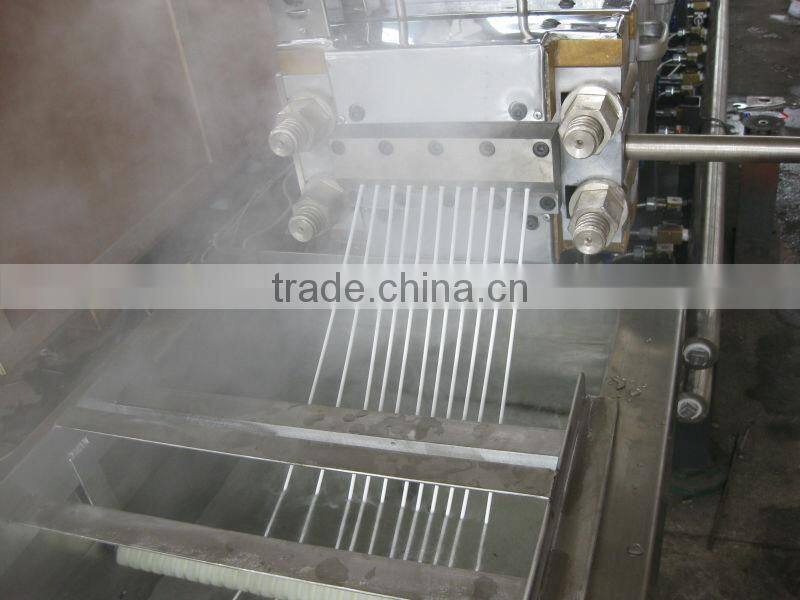

Technical data of TSE twin screw extruder water cooling pelletizng system
| Mode | Diameter (mm) | L/D | Screw rotary speed (r/min) | Motor power(kw) | Torque(N.m) | Capacity(kg/h) |
| TSE-20 | 22 | 32-44 | 600 | 5.5 | 43 | 1-10 |
| TSE-30A | 31 | 32-48 | 500 | 11 | 105 | 5-30 |
| TSE-30B | 31 | 32-48 | 600 | 15 | 119 | 5-40 |
| TSE-40A | 41 | 32-52 | 600 | 15 | 119 | 65-110 |
| TSE-40B | 41 | 32-52 | 400 | 22 | 263 | 90-150 |
| TSE-52B | 51.5 | 32-64 | 600 | 75 | 597 | 225-250 |
| TSE-65B | 62.4 | 32-64 | 600 | 90 | 716 | 250-300 |
| TSE-75B | 71 | 32-64 | 600 | 132 | 1050 | 350-550 |
| TSE-75D | 71 | 32-64 | 600 | 220-250 | 1990 | 500-1000 |
| TSE-95A | 93 | 32-64 | 500 | 250 | 2387 | 600-1000 |
| TSE-95B | 93 | 32-64 | 600 | 315 | 2506 | 800-1200 |
| TSE-135 | 133 | 32-64 | 500 | 750 | 7162 | 1500-2250 |

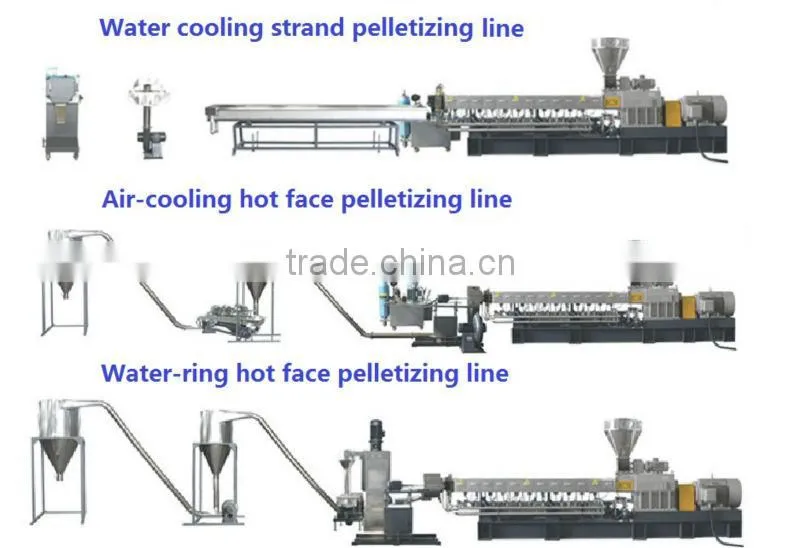

Other Typical applications: extrusion pelletizing machine for plastic
1, Fibre reiforcement : glass fibre, carbon fibre reinforced PP, PA, PBT, ABS, PC, POM, PPS, PET, etc.
2, Polymer blending:blending of PC/ABS, PA/ABS, CPE/ABS, PP/EPDM, PA/EPDM, PP/SBS,etc.
3, Incorporation of Fillers: Caco3, Talc, TiO2, carbon black,filled PE, PP, or EVA, etc.
4, Cable Compounds: cable sheath, cable insulation compounds of LDPE, HDPE, LLDPE, MDPE; radiation-crosslinkable compounds, optical fibre protection compounds, heat-shrinkable polymer compounds.
5, Special Compounds: PPR pipe compounds, PE compounds for crosslinked pipes, tobacco filter compounds, etc.
6, High Concentration Color Masterbatches: PE, ABS, PS, EVA, PP,etc. with high concentration of pigments and other processing aids.
7, Masterbatches with Flame-retardants: PE, ABS, PS, EVA, PET, PP, etc. with flame retardants and other additives.
CE SIO9001 TUV Certification
Good service engineers can speak english for machine errection in the world.
Develivery for customer
Contact person : Mr.Leo
Skype(Leo.nanjing)
+86 18251933105
