Specifications
small single screw extruder1.high tool steel 38CrMoALA or W6Mo5Cr4V2
2.easy maintenance
3.strong aftersevic
4.CE, ISO9001

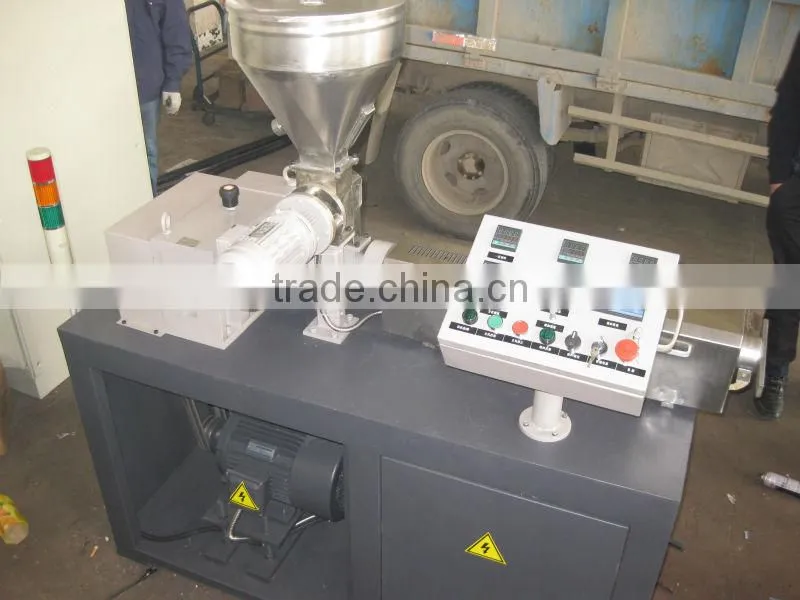

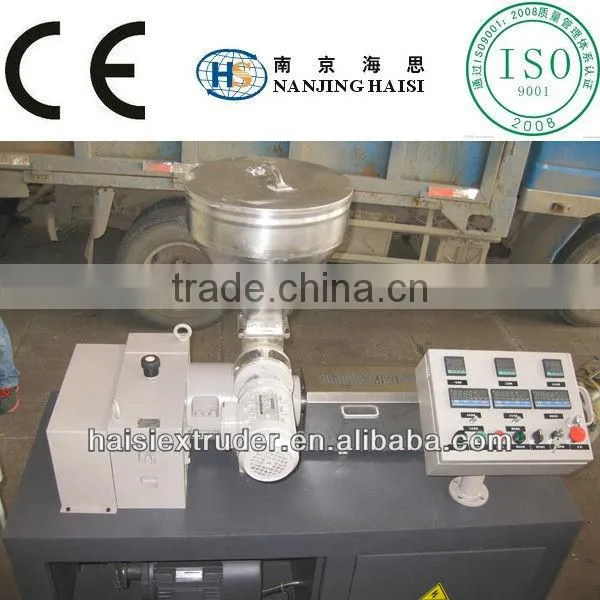

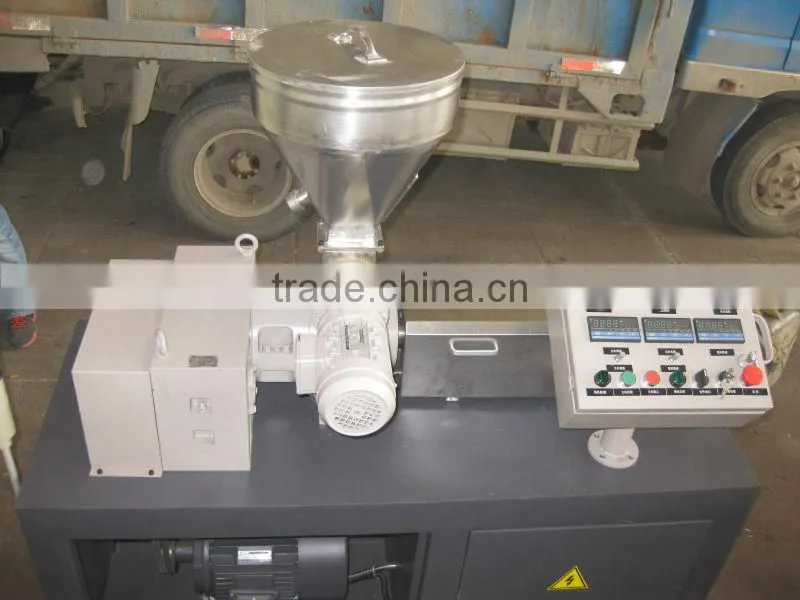

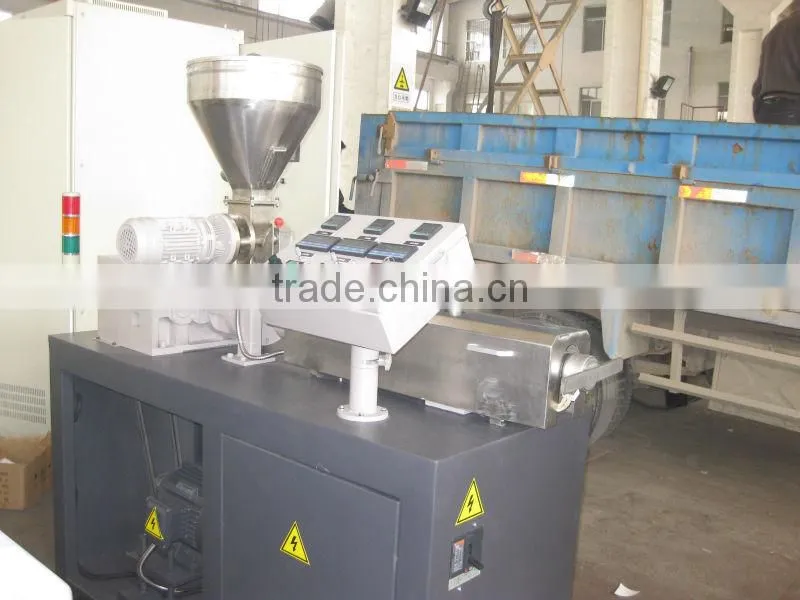

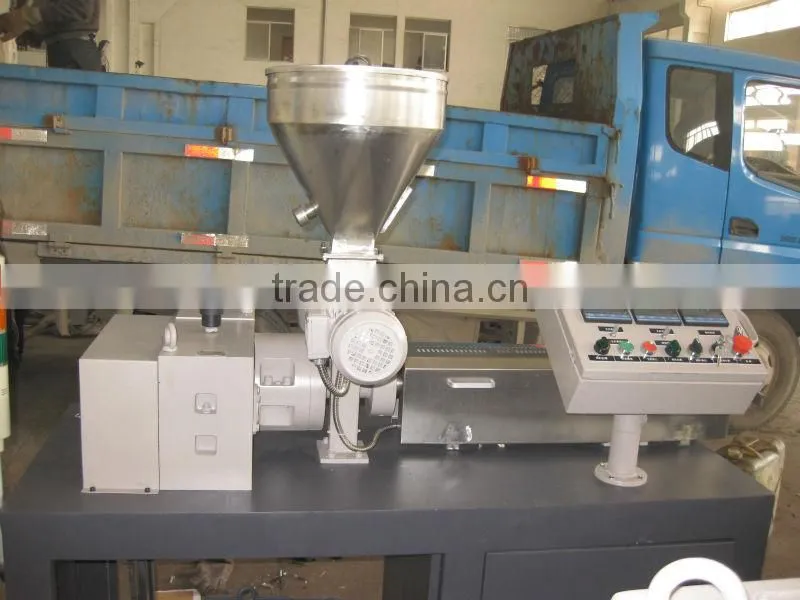

TSE-30A extrusion machinery:
characteristics of the extruder:
1.Euro-style rectangle barrel makes temperature difference in C areas smaller
2.Innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of the heater
3.Acocording to the material and special technical demands, the material cylinder can use high quality nitrided steel
4.Various modes of pelletizing: water-cooling srtand,air-cooling pelletizing,water-ring pelletizing,under water pelletizing.etc
5.The screw elements are designed accuratly and made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heater treatment.
6.The screw configuration,barrel setup,L/D or mode of feeding and venting,screen changing,way of granulating,and control mode can be adjusted according to different material properties.
7.Various modes of feeding:single screw,twin screw,hollow screw,forced-feeding,side feeding,liquid-adding system etc
Technical data:
| Model | Screw diameter | L/D | Screw rotary | Main motor power | Torque | Output |
| TSE-30B | 30mm | 32-48 | 600r/min | 15kw | 85N.m | 5-40kg/h |
Repetitive material
Mixing nature-changing:PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA+Silicon rubber,etc
PE,PA,PC,CPE+ABS(alloy),ABS+TPU,PBT+PET,PP+PE,etc
Filling nature-changing:PE,PP,EVA,etc.+Calcium carbonate,talcum powder,titanic powder,ABS,
PC,PS,etc.+aluminum hydroxide,magnesium hydroxide,antimony oxide
PP,PA,ABS+ferrous powder,sulphuric powder,ceramic powder
Functional machine pellets:PP,PA,ABS,PBT+anti-burning agent and other auxiliary agents
Combustion-supporting machine pellets
PE,PP,PS+starch,de-composing machine pellets
PE+fog-preventing dipper,stabilizer,dual-prevention machine pellets
PE,EVA,ABS+carbon black,black machine pellets
Colored machine pellets:PP,PE,AS,ABS,PA,EVA,PET+pigment and auxiliary
Intensified glass fibres and carbon fibres:PP,PBT,ABS,AS,PA,PC,POM,PPS,PET+long fires,small
fibres,carbon fibres,crystals and so on,etc
Various cables: HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP,etc.Insulating cables,coatings,PE
peroxide,silicon alkyl crossing cables,radialization crossing cables
Special materials: EVA heat-melting glue,polyurethane,fluorin rubber,fluorine plastics,PP cigarette
filtering material and TPR sole material
Reaction extruding:Polyamide condensate,polyamide melting polymerization,polyamide
polythene-adding,polycarbonate condensate,etc.
Exhausting and volatilization: polystyrene oxide,high-absorbing resin,chlorine sulphur polyethene
Powder paint: polyester,ring oxide,lactide,polyurethane,acrylate
Package
