Help CenterStarch pp Dinnerware Making Machine
Related Products
Specifications
starch pp dinnerware making machine1.High speed steel screw
2.50~300kg/h
3.easy operation
4.CE;ISO9001
starch pp dinnerware making machine
Dear friend, welcome to Haisi!
Details:
1) Screw diameter : 22~133mm. L/D= 28~68
2)Main drive motor :AC 5.5~550kw,speed regulated by ABB transducer inported from switzerlad
3)Screw rotary speed:50~800rpm
4)Screw shaft is made of high-strength alloy 40CrNiMoA.
5) Barrel is totally 6~17 pieces of barrels
6)The 1st barrel is the main feeding vent,Genarally speeking,the 5th is for degassing,8th is vacuum section,and the others are closed barrels.
7)Casting copper heaters for 2.3th barrels.The others are equipped with casting aluminum heaters
8)Reducing and distributing gearbox:
The gearbox reduces the motor speed to the speed of the screw shafts and distributes it to the 2 output shafts,
this gearbox output torque can reach 7.5T/A3
The gearbox consists of:
l Involute gear teeth couplings between the output shaft and screw shafts
l Integrated thrust bearing assembly,radial bearings of the output axis are NSK products
l Bottom part of casing designed as oil sump
Technical data of TSE twin screw extruder water cooling pelletizng system
| Mode |
Diameter (mm) |
L/D |
Screw rotary speed (r/min) |
Motor power(kw) | Torque(N.m) | Capacity(kg/h) |
| TSE-20 | 22 | 32-44 | 600 | 5.5 | 43 | 1-10 |
| TSE-30A | 31 | 32-48 | 500 | 11 | 105 | 5-30 |
| TSE-30B | 31 | 32-48 | 600 | 15 | 119 | 5-40 |
| TSE-40A | 41 | 32-52 | 600 | 15 | 119 | 65-110 |
| TSE-40B | 41 | 32-52 | 400 | 22 | 263 | 90-150 |
| TSE-52B | 51.5 | 32-64 | 600 | 75 | 597 | 225-250 |
| TSE-65B | 62.4 | 32-64 | 600 | 90 | 716 | 250-300 |
| TSE-75B | 71 | 32-64 | 600 | 132 | 1050 | 350-550 |
| TSE-75D | 71 | 32-64 | 600 | 220-250 | 1990 | 500-1000 |
| TSE-95A | 93 | 32-64 | 500 | 250 | 2387 | 600-1000 |
| TSE-95B | 93 | 32-64 | 600 | 315 | 2506 | 800-1200 |
| TSE-135 | 133 | 32-64 | 500 | 750 | 7162 | 1500-2250 |

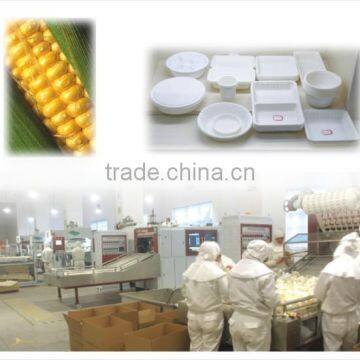

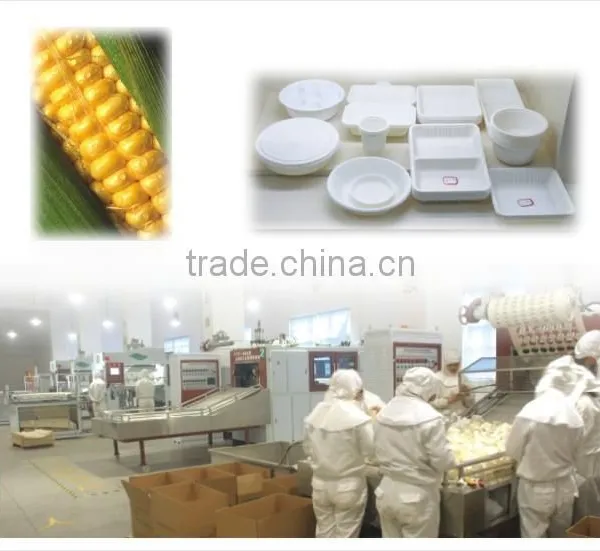

Typical applications: extrusion compounding for plastic with starch
biodeagradable sheet line : starch, corn starch with PP, PE to make sheet
CE SIO9001 TUV Certification
Good service engineers can speak english for machine errection in the world.
Develivery for customer
Contact person : Mr.Leo
Skype(Leo.nanjing)
+86 18251933105
