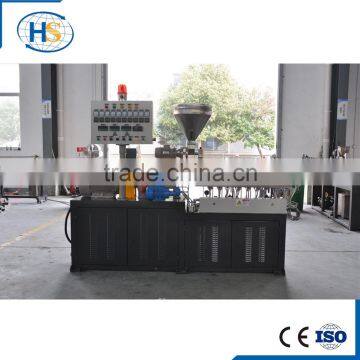

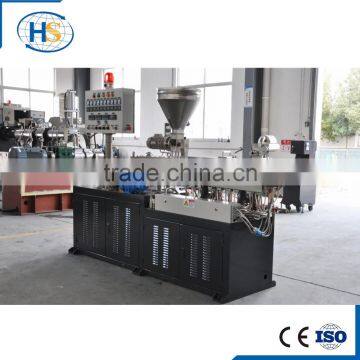

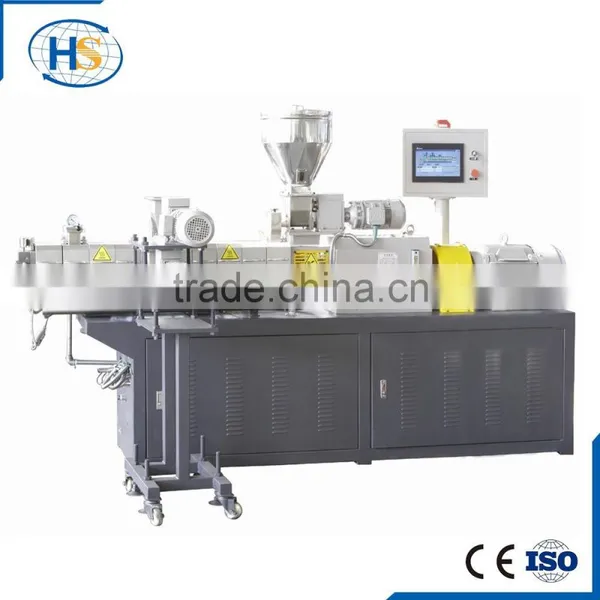

eva compounds granulating extruder plastic extrusion machinery
1.The Technical Data :
Mode | Screw Diameter(mm) | Screw Length/Diameter | Screwspeed N(r/min) |
Main motor power(kw)
| Screw torque(N.m) |
Torque ratingT/N^3
|
Output(kg/h)
|
| TSE-30A | 31 | 34-48 | 500 | 11 | 105 | 5.9 | 5-30 |
| TSE-30B | 31 | 34-48 | 600 | 15 | 119 | 6.7 | 5-40 |
| TSE-35A/B | 35.6 | 32-52 | 600 | 15-22 | 119 | 4.4 | 20-60 |
2.Application of compound extruder
-Mixing nature-changing: PE,PP,PS+SBS;PA+EPDM;PP+NBR;EVA+Silicon rubber,etc
-Filling nature-changing: PE,PP,EVA etc+aluminum hydroxide,magnesium hydroxide,antimony oxide.
-Colored machine pellets: PE,PP,ABS,AS,PA,EVA,PET etc+long fires,small fibres, carbon fibres, crystals and so on, etc.
3.Features of plastic extruder:
(1) Barrel
euro-style rectangle barrl, reflux refrigeration channel is optimized and disposed,which makes temperature difference in D areas smaller.
(2) Screw
the screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat-treatment , which is possessed with high corrosion-resistat and high functions.
(3)Metering feeders
various metering feeders --- single screw ,twin screw ,hollow screw,forced-feeding, side- feeding.
(4) New-style gear transmission system
new-style project of parallel three-axises driving makes the conve axis,convey chain,decelerate and torque get together ,which keep it compact ,and the key bearings are imported soakage
(5)Electric control cabinet
adopting imported PLC(OMRON or SIMES) to achieve optimized process control. stronger function,steady performance and much higher accurancy
(6) Pelletizing system for compound
---various modes of pelletizing,such as water-cooling strand,air-cooling pelletizing,water-ring pelletizing,under water pelletizing.
1.Quality guaranteed
2.Support factory visit
3.Technology supports
4.We are the manufactuer
Welcome to Nanjing Haisi Extrusion Equipment CO., Ltd.
Our products are single screw extruders, co-rotating twin-screw compounding extruders,two-stage compounding extruders, auxiliary equipment, etc.
Believe yourself, and cooperating with HAISI is your wise decision; believe us ,since "high quality and service" is our promise forever!
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
