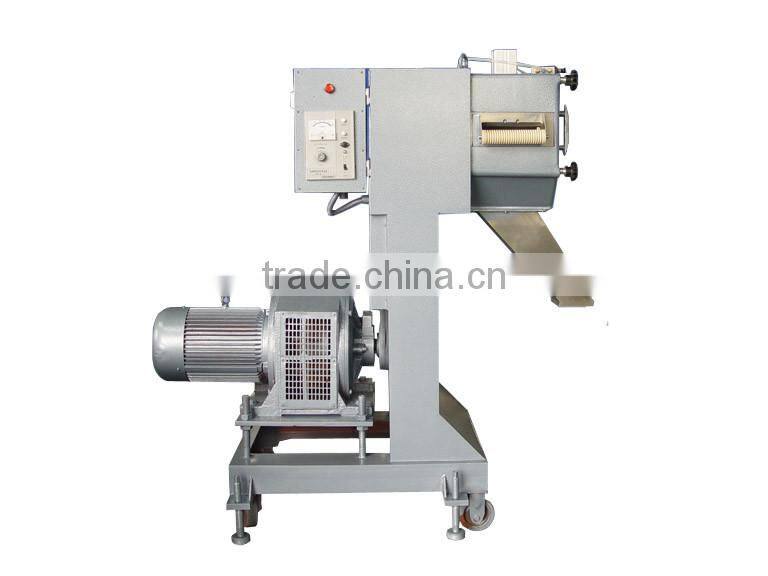

High Quality Plastic Pelletizer for PE/PP/PVC Granules at Low Price
Characteristics of the Plastic Pelletizer/Cutter/Granulator Machine
High quality & reasonable price
Low noise
Easy operation
Available for various plastic raw material, like PP, PA, PBT , ABS, AS, PC, POM, PPS, PET, etc.
Produced as customer required
Motor can be controlled by Frequent Inverter control to meet customer productivity demand.
Parameter Table of Various Pelletizer/Cutter/Granulator Machine
Model |
HS-LQ 60 |
HS-LQ 300 |
HS-LQ 500 |
HS-LQ 900 |
Max output |
60kg/hr |
300kg/hr |
500kg/hr |
900kg/hr |
No. of strand |
6 |
15 |
625 |
42 |
Standard pellet |
3*3mm |
3*3mm |
3x3mm |
3x3mm |
|
Cutter dimension (L*W*H) |
120x60mm, 14 tooth |
120x100mm, 32 tooth |
200x200mm, 32 tooth |
200x300mm, 32 tooth |
Effective rotation speed |
350-1000rpm |
350-1000rpm |
350-1000rpm |
350-1000rpm |
Haul off speed |
0-36m/min |
0-96m/min |
0-96m/min |
0-96m/min |
Motor power |
1.5kw |
3kw |
5.5kw |
11kw |
Rotated cutter clearance |
0.06-0.12mm |
0.08-0.12mm |
0.08-0.12mm |
0.08-0.12mm |
Leading roller |
PU |
PU |
PU |
PU |
Driver control |
Frequency inverter |
|||
AC motor |
3 Phase / 380 V / 50 Hz |
|||
Material of cutter |
High-speed Steel / Hard Alloy |
|||

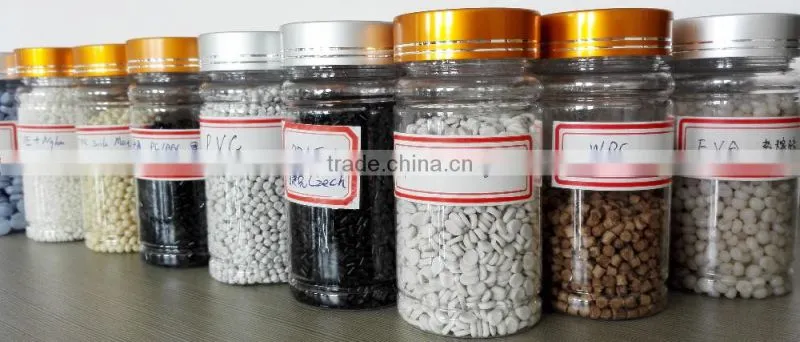

The Pellets Application
Mixing Nature-Changing → PE/PP+SBS;PP+NBR;EVA+Silicon RubberPP+ABS(Alloy) ; PP+PEProcess → Representative Materials
Filling Nature-Changing→PP/PE/EVA+Calcium Carbonate/Talcum Powder/Titanic Powder ;
ABS+Aluminum Hydroxide/Magnesium Hydroxide/Antimony Oxide ;
PP/ABS+Ferrous Powder/Sulphuric Powder/Ceramic Powder
Functional Machine Pellets → PP/ABS+Anti-Burning Agent and Other Auxiliary Agent
PE/PP+Starch ; PE+Frog-Preventing Dlipper/Stabilizer ; PE/EVA/ABS+Carbon Black
Colored Machine Pellets → PE/PP/ABS/EVA+Pigment and Auxiliary
Intensified Glass Fibres and Carbon Fibres → PP/ABS+Long Fibre/Small Fibre/Carbon Fibre/Crystals
Various Cables → EVA/PVC/PP Lnsulating Cables; PE peroxide
Special Materials → EVA Heat-Melting Glue; PP Cigarette Filterial
Heat-Susceptible Plastics → PVC Cables;EVA Sole; PE Peroxide Crossing Cables
PE Silicon Alkyl Crossing Cables; PE Crossing Piping; PE/EVA Crossing Shield
Our machine is fisrt painted with anticorrosive oil, and then wrapped in the plastic film before it is finally packed in the wooden case.
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.
2. Q: What's Haisi capacity?
R: Our company is in strict accordance with CE and ISO9001 quality certification system. there are over 200 models of extruders and spare parts.
3. Q: What's the delivery time?
R: For regular size, we have finished stock and semi-finished stock, 2 weeks max are enough for customized, normally 3~4 weeks.
4. Q: Where is Haisi factory and how to reach there?
R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.
5. Q: How to contact with us?
R: Plz reply to me directly if you have any question.
