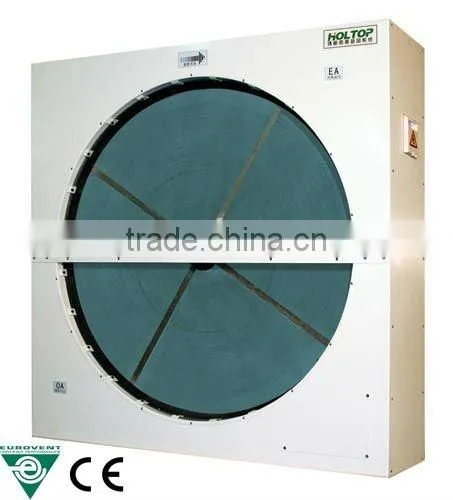

Energy Conversion Aluminum Air Rotary Heat Exchanger

Specifications

Energy Conversion Aluminum Air Rotary Heat Exchanger
1. CE/ Eurovent certificated
2. High efficiency of energy recovery

Energy Conversion Aluminum Air Rotary Heat Exchanger

Specifications

5. 3A molecular sieve coating



Rotary heat exchanger (wheel) is mainly used in building ventilation or in the air supply/discharge system of air conditioning equipment. The wheel transfers the energy (cold or heat) contained in exhaust air to the fresh air supplied to indoor. It’s one important equipment and key technology in the field of construction energy-saving.

Sensible heat exchanger. It generally recovers no latent heat unless condensing water occurs and it recovers part of the latent heat.



About Holtop

Holtop is the No. 1 manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 2002, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Beijing Olympic and Shanghai Expo 2010. We cooperate with world famous brands in heat recovery wheel including YORK, McQuay, Carrier, DB, TRANE and SINKO.





Working principle of  Eurovent certified 3A molecular sieve ERV rotary  exchanger



The aluminum covering 3A molecular sieve rotor diameter 500-5000mm hygroscopic heat wheel  is composed of alveolate heat wheel, case, drive system and sealing parts. The exhaust and outdoor air pass through half of the wheel separately, when the wheel rotates, the heat and moisture are exchanged between the exhaust and outdoor air. The energy recovery efficiency is up to70% to 90%.





  Selection Program

  Selection Chart

Specifications and dimensions

Model	Rotor diameter(mm)	Wheel length(mm)	Wheel width(mm)	Wheel height(mm)	Vot./Hz	Power(Kw)	Kg
HRT-500	500	600	340	600	380v/50Hz	0.09	42
HRT-600	600	700	340	700	380v/50Hz	0.09	59
HRT-700	700	800	340	800	380v/50Hz	0.09	71
HRT-800	800	900	340	900	380v/50Hz	0.09	82
HRT-900	900	1030	340	1030	380v/50Hz	0.09	102
HRT-1000	1000	1130	340	1130	380v/50Hz	0.09	130
HRT-1100	1130	1230	340	1230	380v/50Hz	0.09	151
HRT-1200	1230	1330	340	1330	380v/50Hz	0.18	169
HRT-1300	1330	1430	340	1430	380v/50Hz	0.18	190
HRT-1400	1430	1530	340	1530	380v/50Hz	0.18	205
HRT-1500	1530	1630	340	1630	380v/50Hz	0.18	220
HRT-1600	1630	1730	340	1730	380v/50Hz	0.18	239
HRT-1700	1730	1830	340	1830	380v/50Hz	0.25	266
HRT-1800	1830	1930	340	1930	380v/50Hz	0.25	293
HRT-1900	1930	2030	340	2030	380v/50Hz	0.25	320
HRT-2000	2030	2130	340	2130	380v/50Hz	0.25	370



Model	Rotor diameter(mm)	Wheel lengt(mm)	Wheel width(mm)	Wheel height(mm)	Vot./Hz	Power(Kw)	Weight(Kg)
HRT-2200	2230	2400	340	2400	380v/50Hz	0.37	420
HRT-2400	2430	2600	340	2600	380v/50Hz	0.37	500
HRT-2600	2630	2800	340	2800	380v/50Hz	0.37	570
HRT-2800	2830	3000	340	3000	380v/50Hz	0.37	860
HRT-3000	3030	3200	340	3200	380v/50Hz	0.55	950
HRT-3200	3230	3400	340	3400	380v/50Hz	0.55	1039
HRT-3400	3430	3600	340	3600	380v/50Hz	0.55	1110
HRT-3600	3630	3800	340	3800	380v/50Hz	0.55	1220
HRT-3800	3830	4000	340	4000	380v/50Hz	0.55	1360
HRT-4000	4030	4200	340	4200	380v/50Hz	0.75	1500
HRT-4200	4230	4400	340	4400	380v/50Hz	0.75	1645
HRT-4400	4430	4600	340	4600	380v/50Hz	0.75	1750
HRT-4600	4630	4800	340	4800	380v/50Hz	1.1	1830
HRT-4800	4830	5000	340	5000	380v/50Hz	1.1	1980
HRT-5000	5030	5200	340	5200	380v/50Hz	1.1	2100



Applications



Rotary heat exchanger can built in air handling unit(AHU)as a main part of the heat recovery section. Usually
side panel of the exchanger casing is unnecessary, except that bypass has been set in AHU.
