UAE popular heat recovery wheel AHU core high temperature resistance

Holtop rotary heat exchanger

 - Synthetical material with high hydrophilicity. 3A molecular sieve can effectively avoid secondary pollution.

 - Advanced technology and special rotary heat exchanger design, high efficiency up to 90%, sensible heat and enthalpy recovery available.

 - Double sealing system and purge sector, air leakage less than 0.3% when temperature different is above 200Pa

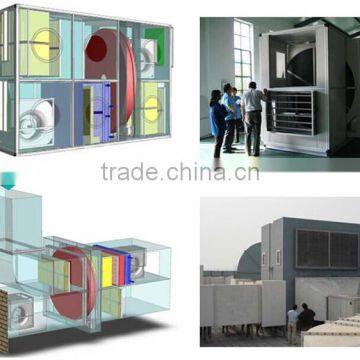

 - Various installation type and motor position available, convenient for each project case.

 - Built in top quality imported motor from Germany, CE and Eurovent certificated.

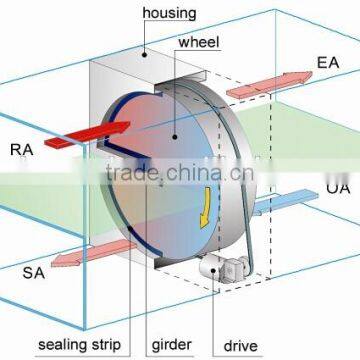

Working principle of Holtop rotary heat exchanger

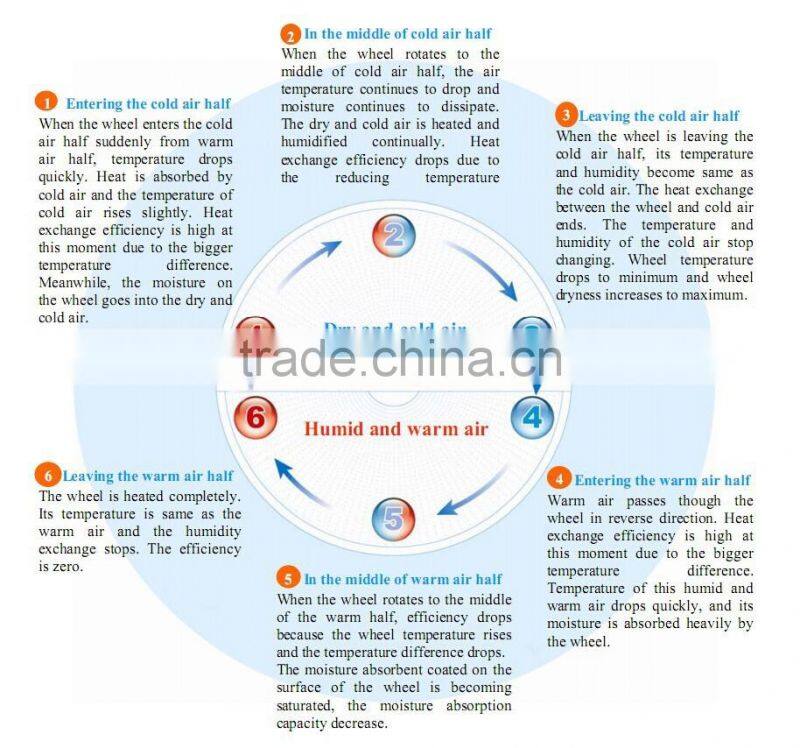

Rotary heat exchanger is composed of alveolate heat wheel, case, drive system and sealing parts. The exhaust and outdoor air pass through half of the wheel separately, when the wheel rotates, the heat and moisture are exchanged between the exhaust and outdoor air. The energy recovery efficiency is up to 70% to 90%.

Product details

Wheel materials

The sensible heat recovery wheel is made by aluminum foils of 0.05mm thickness. And the enthalpy recovery wheel is made by aluminum foils coated with 3A molecular sieve of 0.04mm.

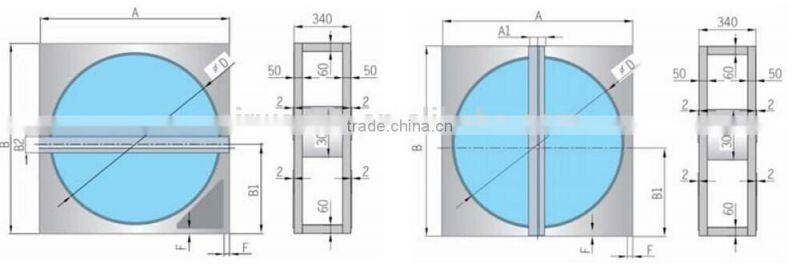

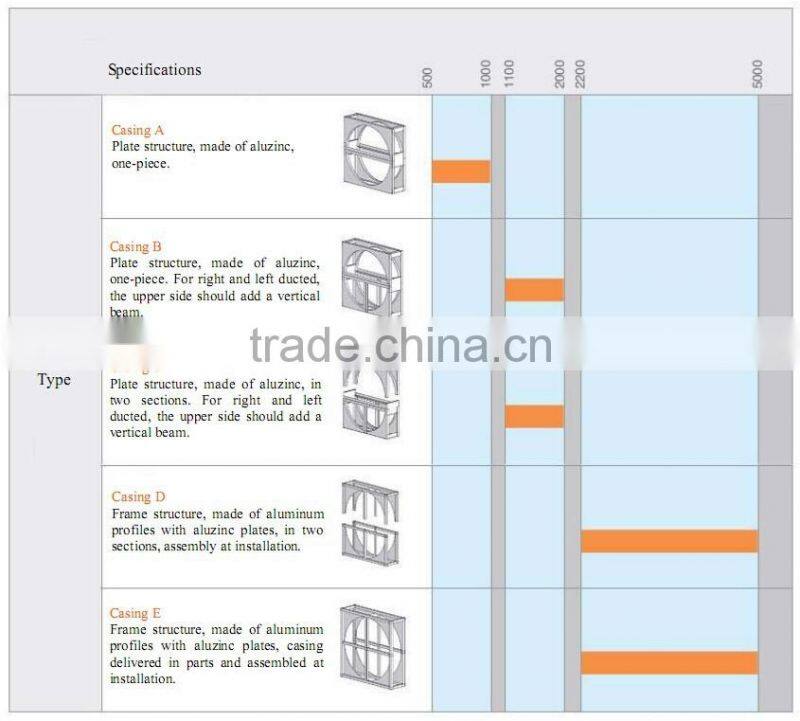

Casing construction

Wheel Construction

The wheel of the rotary heat exchanger is made of alternating layers of flat and corrugated aluminum foil to form the alveolate

shape. Various height of corrugation is available. Flat surface ensures minimum leakage. Interior spokes are used to mechanically bond the rotor’s laminations. These are threaded at the hub and welded at the periphery.

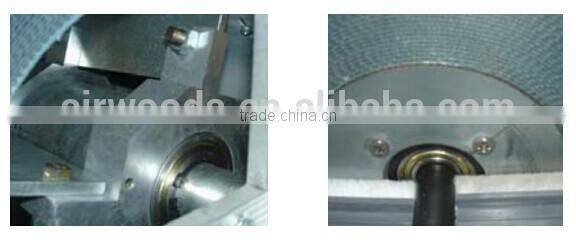

Bearing and drive system

The hub of the wheel is equipped with life-time- lubricated ball bearing or roller bearing, and with covers at both sides. No maintenance is required under normal usage.

- V-belt with big interface. Long service life.

- Spring shock absorber insures steady operation.

- Integrated motor and speed reducer free from maintenance.

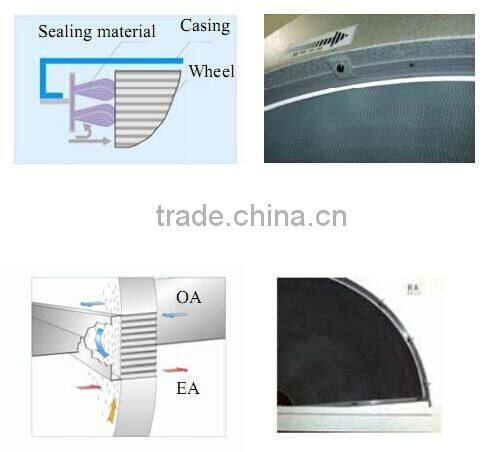

Double sealing and purge sector system

Unique double-sealing system is installed around the rotor periphery and along the central beam. The sealing materials are soft and dense of small friction and longer service life.

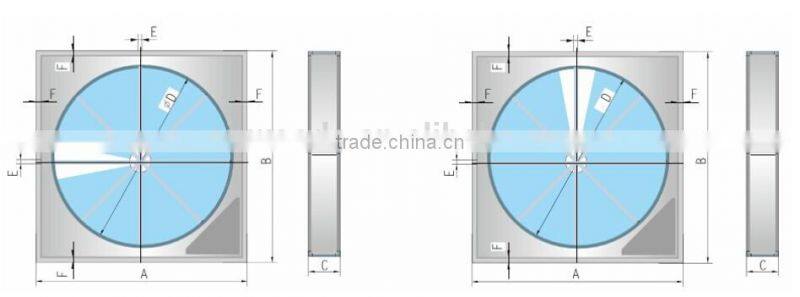

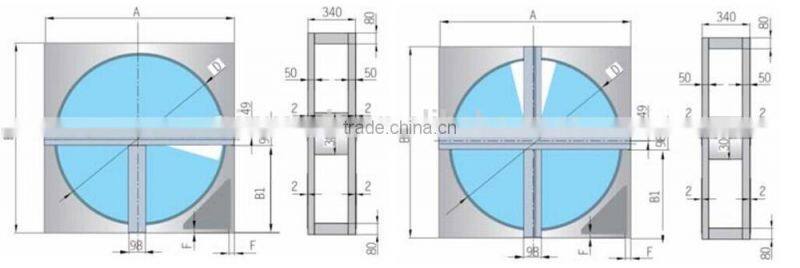

Installation types and motor position

The motor is installed at the corner of the rotary heat exchanger, the position of the corner is marked from no. 1 to 4, and the motor position is optional.

Holtop partner

Holtop cooperate with world famous brand or offer OEM service including Hitachi, LG, McQuay, TRANE, Systemair, Aldes, York, Haier, Gree, MHI Group, Midea, Carrier, Dunham-Bush, etc.

Holtop fair and certificate
