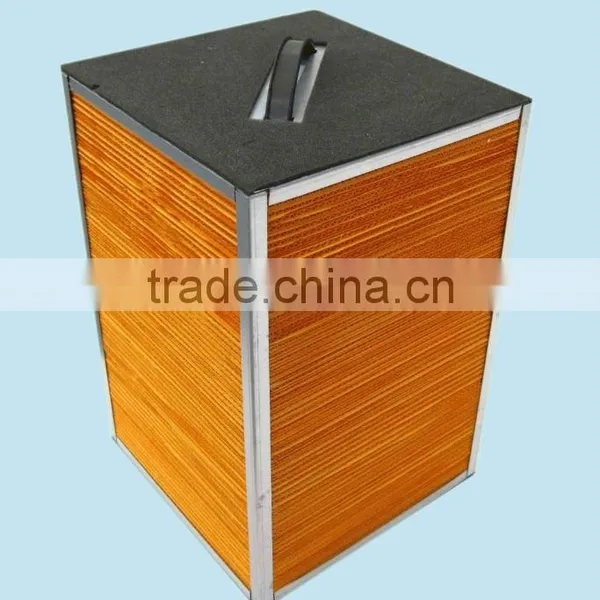

Crossflow Plate Fin Total Paper Heat Exchangers

Working principle of Holtop Crossflow plate fin total heat exchangers (total heat E.R. Paper )
The flat plates and the corrugated plates form channels for fresh or exhaust air stream. When the two air steams passing through the exchanger crossly with temperature difference, the energy is recovered.

Main features

1. Made of E.R. paper, which is featured by high moisture permeability, good air tightness, excellent tear resistance, and aging resistance.
2. Structured with flat plates and corrugated plates.
3. Two air streams flow crossly.
4. Suitable for room ventilation and industrial ventilation system.
5. Heat recovery efficiency up to 70%

 Specifications

Applications

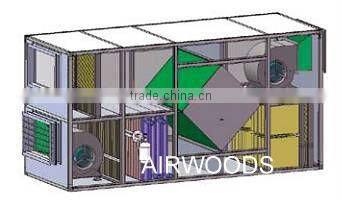

1. It can be used in the air handling unit (AHU) and energy recovery ventilator (ERV) as a main part of the heat recovery section.

2. It can be also Installed in the ducts of ventilation system as a main part of the heat recovery section, connected by flange.
