Help CenterHRV High Static Pressure Heat Recovery Air Ventilation Ceiling Fan
Related Products
-
ERV Fresh Air Fan Ventilatior With F9 Air PurifierUS$ 100 - 10,000MOQ: 1 Set -
Roof Ventilator Energy Recovery Ventilation System With DC FanUS$ 100 - 10,000MOQ: 1 Set
-
Air Ventilation Controlled With High Efficiency FiltersUS$ 100 - 1,000MOQ: 1 Set
-
ERV Fresh Air Ventilatior With PM 2.5 Filter Smaller Installation SpaceUS$ 100 - 10,000MOQ: 1 Set
-
Low Power Cost Heat Recovery Ventilatior With DC MotorUS$ 100 - 10,000MOQ: 1 Set

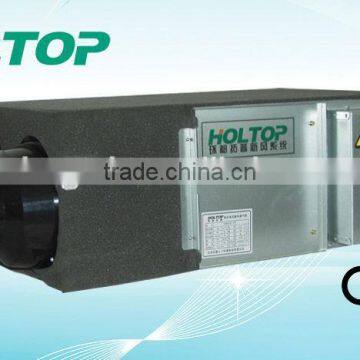

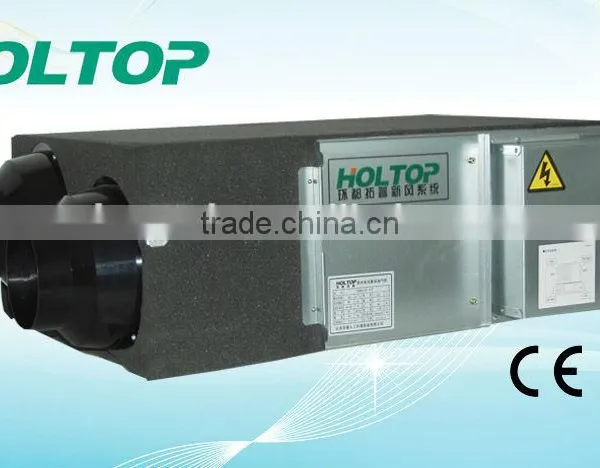

Feature High efficiency Heat and Energy Recovery Ventilator
(TZ High Static Pressure Series)
Ceiling or Suspended Installation Type
Airflow from 100-1000m3/h
Heat and energy recovery
Crossflow plate fin total heat exchanger
High ESP construction
Silent designed and quiet operation
Double filters to clear air
Easy installation to ceiling
By-pass function
It can expel the stale air indoor out of room, meanwhile supplying the fresh air outside into the room, by using the advanced heat/energy recovering technology, the energy can exchange taking advantage of the difference of the temperature and humidity between indoor and outdoor air. By this means, it can not only solve indoor pollution problem, but also save energy.
1. Brings a continuous supply of fresh air, filtered outside air into the home
2. Suck indoor environmental contaminants for improved indoor air quality
3. Pre-cool or pre-heat the fresh air when in summer and winter
4. Designed to provide comfort in warmer humid climates and transfer incoming humidity back outdoors.
1. Choose the proper installation types based on the building structure
2. Determine the fresh airflow required according to the use, size and number of persons
3. Select the right specifications and quantity according to the determined fresh airflow
Example
The area of a computer room is 60 sq. meters (S=60), the net height is 3 meters (H=3), and there are 10 per-sons (N=10) in it.
If it is calculated according to “Personal fresh air consumption”, and assume that: Q=70, the result is
Q1 =N*Q=10*70=700(m3/h)
If it is calculated according to “Air changes per hour”, and assume that: P=5, the result is
Q2 =P*S*H=5*60*3=900(m3)
Since Q2 > Q1 , Q2 is better for selecting the unit.
As to special industry such as hospitals (surgery and the special nursing rooms), labs, workshops, airflow re-quired should be determined in conformity with regulations concerned.Specifictions and Dimension of HOLTOP Heat and Energy Recovery Ventilator
(
Installation of HOLTOP Heat and Energy Recovery Ventilator(suitable for all HOLTOP Ceiling or Suspended Type Ventilator)
Controller for HOLTOP Heat and Energy Recovery Ventilator (HRV& ERV)
Standard Type- HDK-08
1. LED Display
2. 3 Speeds
3. Switch of normal ventilation and energy recovery
4. Indoor temperature measurement
5. Temperature value revision
Intelligent Type(Optional)
1.Temperature LED display.
2.Automatic bypass
3.Electrical heater
4.Defrosting
5.External ON/OFF
6.CO2 concentration control
7.Smart alarm
8.Data memory
9.Weekly timer
10.Airflow adjustment
Holtop Factory
Holtop is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 2002, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Beijing Olympic and Shanghai Expo 2010, works together with domestic and international brands like Midea, Haier, Hitachi, etc.
Holtop partner
Holtop cooperate with world famous brand or offer OEM service including Hitachi, LG, McQuay, TRANE, Systemair, Aldes, York, Haier, Gree, MHI Group, Midea, Carrier, Dunham-Bush, etc.
Holtop products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, Eurovent, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.
1. How to select the suitable models?
Based on the fresh airflow you need. Please send us the room area, room type or application and number of persons, our team will help you select the suitable units.
2. What’s the difference between Miss Slim series, TH series and TP series?
1)Miss Slim series is specially design for the residential houses which required slim size for installation, the airflow rate for Miss Slim series is from 100-350cmh. The access door position and configurations are different with TH series and TP series.
2)TH series is equipped with crossflow heat exchangers, the airflow ranges from 150-1300cmh, with features of silent operation and cost effective.
3)TP series is equipped with cross counterflow heat exchangers with higher heat exchange efficient.
3. Why choose Holtop as business partner?
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments for more than 10 years.
Holtop can supply a full range of products, up to 20 series and 200 specifications. The product range mainly covers heat and energy recovery ventilators, rotary heat exchangers, plate heat exchangers and air handling units.
Holtop has 400 employees and covers an area of more than 30,000 square meters. Annual production ability of heat recovery equipment reaches 100,000 sets. Holtop supplies OEM products for Midea, LG, Hitachi, McQuay, York, Trane and Carrier. As an honor, Holtop was the qualified supplier for Beijing Olympics 2008 and Shanghai World Exposition 2010.
Holtop has established business relationships with major countries in Asia, Europe and North America, and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services.
4. How about the product quality?
Holtop assures high quality products with professional R&D team, first-class production facilities and advanced management system.
Holtop owns numeral control machines, national approved labs, and has successfully passed the certifications of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT.
All our products are tested 100% before ex-factory to ensure high quality.
