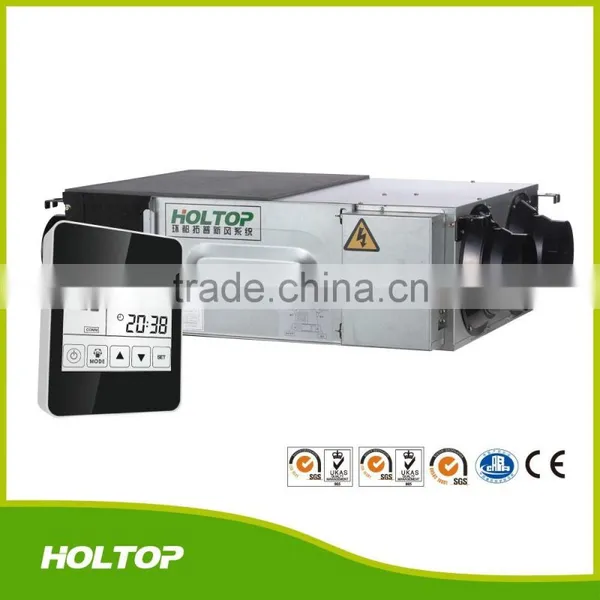

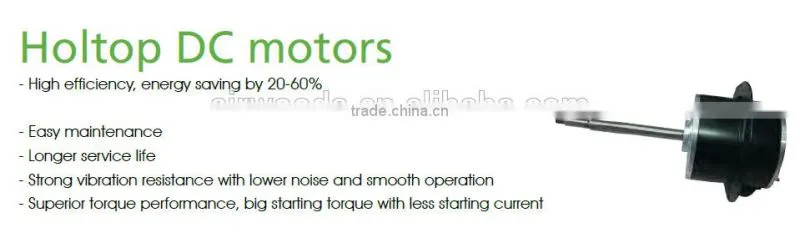

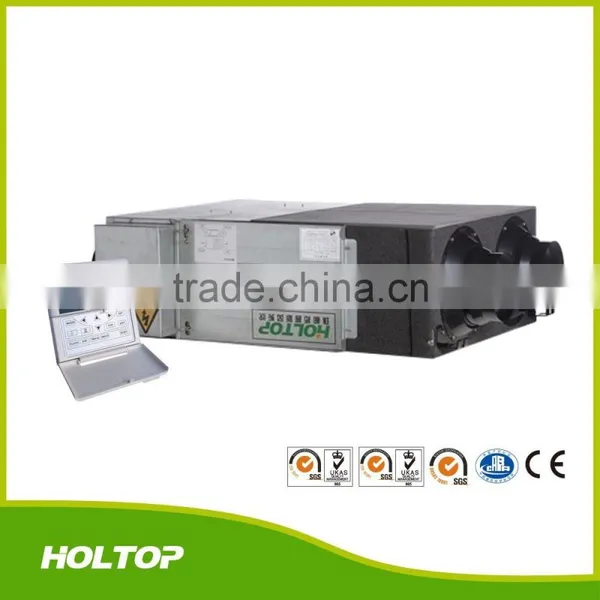

Help CenterLow Power Cost Heat Recovery Ventilatior With DC Motor
Related Products
-
Residential Slim Fresh Air Ventilatior With PM 2.5 FilterUS$ 100 - 10,000MOQ: 1 Set -
Flexible Installation Mechanical Ventilation Price With Control PanelUS$ 100 - 1,000MOQ: 1 Set
-
Ventilation Controlled Heat Recovery Ventilator With High Level FiltrationUS$ 100 - 1,000MOQ: 1 Set
-
DC Motor High Efficient Air Return FanUS$ 100 - 10,000MOQ: 1 Set
-
HVAC Air Fresheners With PM2.5 Double FiltersUS$ 100 - 1,000MOQ: 1 Set
Intelligent house DC fan air conditioning recuperators
HRV ERV
1. Choose the proper installation types based on the building structure

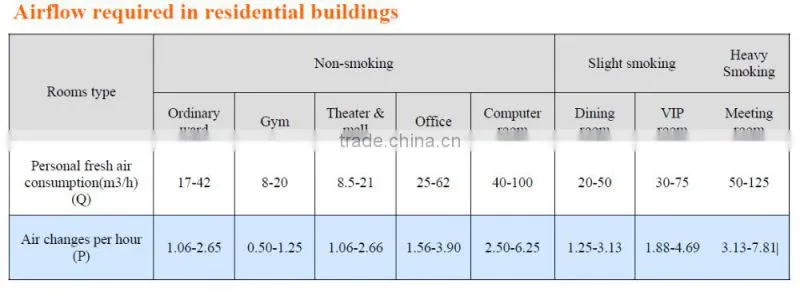

2. Determine the fresh airflow required according to the use, size and number of persons
3. Select the right specifications and quantity according to the determined fresh airflow
Example
The area of a computer room is 60 sq. meters (S=60), the net height is 3 meters (H=3), and there are 10 per-sons (N=10) in it.
If it is calculated according to “Personal fresh air consumption”, and assume that: Q=70, the result is
Q1 =N*Q=10*70=700(m3/h)
If it is calculated according to “Air changes per hour”, and assume that: P=5, the result is
Q2 =P*S*H=5*60*3=900(m3)
Since Q2 > Q1 , Q2 is better for selecting the unit.
As to special industry such as hospitals (surgery and the special nursing rooms), labs, workshops, airflow re-quired should be determined in conformity with regulations concerned.

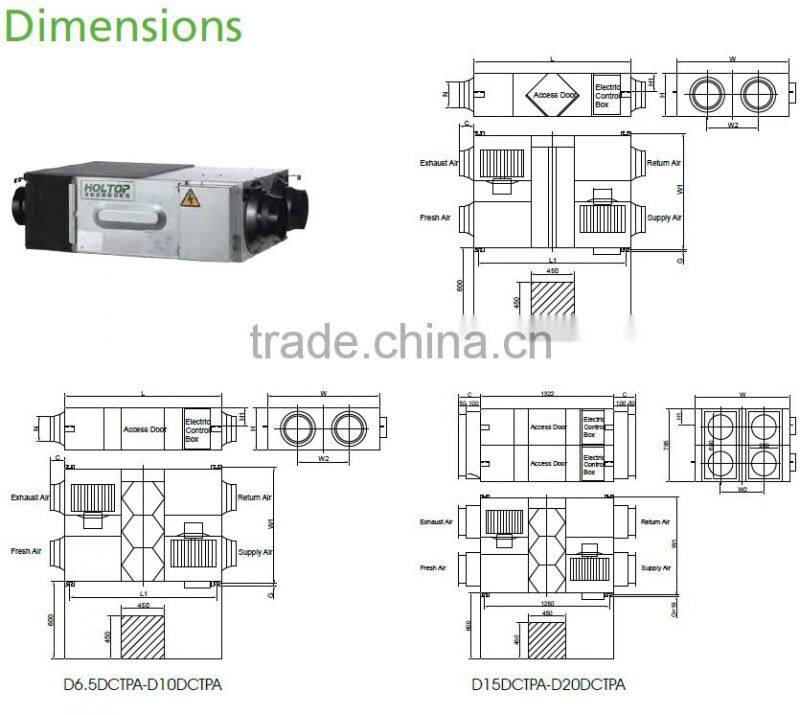

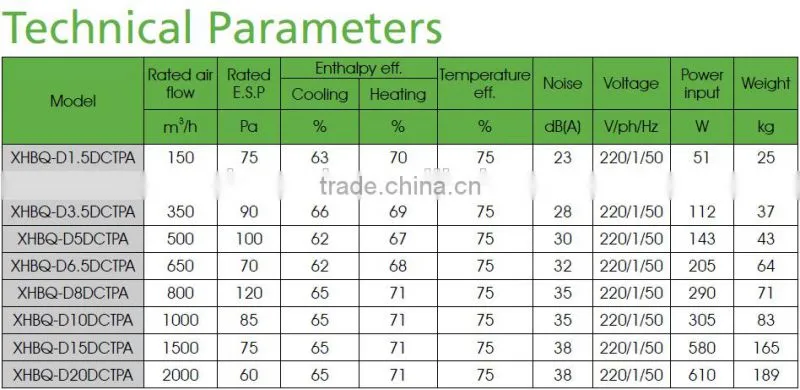

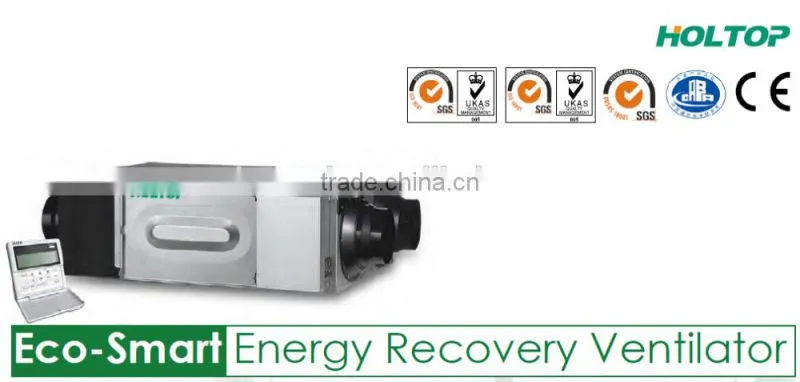

Specifictions and Dimension of HOLTOP Heat and Energy Recovery Ventilator
Holtop is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 2002, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Beijing Olympic and Shanghai Expo 2010, works together with domestic and international brands like Midea, Haier, Hitachi, etc.
Packing
1.Dust Proof Film + Anti-collision Foam + 5-6 Layer Cartons + Ply-wooded Pallets
2.Customized packing is available.
Shipping
1. Express delivery
2. Air flight
3. Sea shipment
4. Railway transportation
5. Multimodal transportation
A. All-round technical supports
1.We help to select models based on your requirements.
2.We provide professional product schemes and technical reports.
3.We design and develop the new products according to your requirements.
4. We provide professional advice for your installation, debugging and operation.
5. We supply the spare parts and technical support in & after the warranty time.
6. General testing and operational test carried out for every units before delivery.
7. We supply the training service at our factory if you need.
B. Reliable after-sales service
1. Technical advice for commissioning, installation, operation and maintenance.
2. Free spare parts for replacement during warranty period.
3. Or 1% free spare parts as warranty for container delivery.
C. Customized service
1. OEM service
2. ODM service
3. New product R&D service
4. CKD & SKD
Holtop energy recovery ventilator keep your home cleaner and healther.
Let's improve indoor air quality together!!
