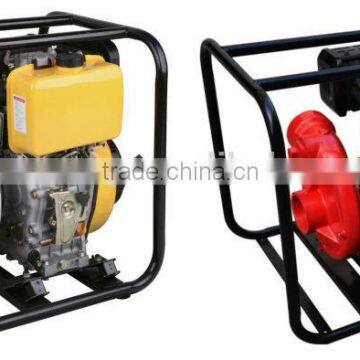

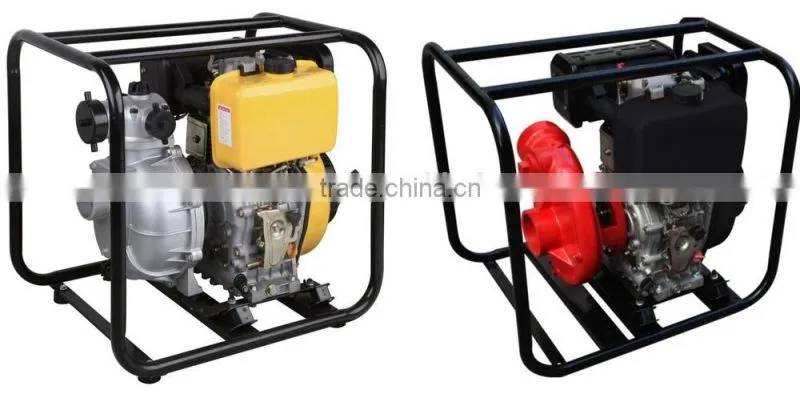

High Pressure Water Pump / Diesel Fire Fighting Pump

Name: High Pressure Water Pump / Diesel Fire Fighting Pump
Brand: TOPSKY
SKU: 140510880
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

TOPSKY

Model Number:

FP139, FP220

Wenzhou Topsky Enterprise

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Wenzhou China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name TOPSKY

Model Number FP139, FP220

Theory Centrifugal Pump

Usage Water

Power Other, 10hp

Standard or Nonstandard Standard

Fuel Diesel

Pressure High Pressure

Application Fire

Specifications

We can supply the high quality high pressure water pump / diesel fire pump.

High Pressure Water Pump / Diesel Fire Fighting Pump

Specifications:

Model	FP139	FP220
DIESEL FIRE PUMP SPECIFICATIONS
Suction &discharge	3"x2" FEM-NPT	3"x2" FEM-NPT
Maximum flow	139GPM	220GPM
Pressure(Max.)	101.5 PSI	100PSI
Suction lift(Max.)	25 FT	25 FT
Spherical solids(in.)	0.28	0.28
Seal	Silicon Carbide Std.	Silicon Carbide Std.
Housing	High pressure aluminum alloy castings	Cast Iron Class 30
Impeller	Bronze/Enclosed	Bronze/Enclosed
ENGINE SPECIFICATIONS
Combustion system	Direct Injection	Direct Injection
Displacement cc (cu.in.)	406 (24.78)	406 (24.78)
Bore x stroke in.	3.39x2.76	3.39x2.76
Engine speed maximum	3600	3600
Output HP	10	10
Fuel tank cap.L. (gal.)	5.5L (1.45)	5.5L (1.45)
Lube oil cap. L.(gal.)	1.1 (0.29)	1.1 (0.29)
Starting System	Recoil/Elec	Recoil/Elec
DIMENSIONS
Dry weight pounds	145	145
Length	30"	30"
Width	25"	25"
Height	21"	21"
