Help CenterCrawler Excavator for Grabbing Grass and Log
Related Products
Specifications

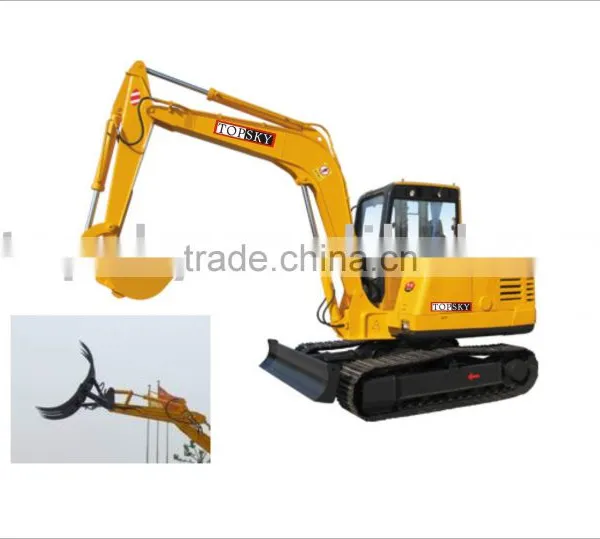

We can supply the excavator for grabbing grass ,log etc.Model TOP60
WORKING RANGES
MAX.DIGGING DEPTH........................................................3300mm
MAX.DIGGING HEIGHT......................................................5100mm
MAX.DIGGING RADIUS......................................................5900mm
MAX.UNLOADING HEIGHT..................................................3700mm
MIN.SWING RADIUS.........................................................1600mm
MAX.LOWING BELOW GROUND.............................................550mm
MAIN SPECIFICATIONS
WIDTH OF PLATFORM........................................................1780mm
WIDTH OF CRAWLER...........................................................400mm
DIMENSIONS.....................................................5850x1890x2650mm
Operation Weight...................................................................5.8T
Bucket Capacity.................................................................0.25m3
Grade Ability..................................................................30°Swing Speed.........................................................................9. 5rpm
Travel Speed(L/H)........................................................2.04/4.06Km/h
Diesel engine
Type.........................................................................4JB1T
Speed.............................................................2200r/min
Rated Power.........................................................................42Kw/57Hp
Starting Method.....................................................................12v
Implement Hydraulic System
Pressure.............................................................................25Mpa
Undercarriage System
Wheel Gauge......................................................................2000mm
Width of Center to Center of crawler..........................1490mm
