Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > Wheel Hydraulic Loader

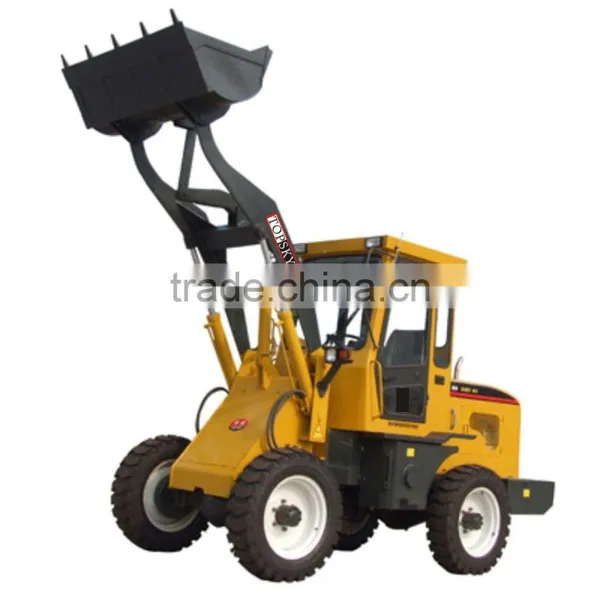

Wheel Hydraulic Loader
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TOPSKY
Model Number:
HL Series
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
TOPSKY
Model Number
HL Series
Specifications
We can supply the high quality wheel hydraulic loaders.Wheel Hydraulic Loaders
Specifications
| Model | HL-08 | HL-09 | HL-12 | HL-15 |
| Max dumping clearance,mm | 2400 | 2400 | 2600 | 2900 |
| Max dumping distance,mm | 900 | 900 | 900 | 900 |
| Max lifting height,mm | 3000 | 3200 | 3500 | 3700 |
| Min ground clearance,mm | 200 | 200 | 250 | 230 |
| Distance between axles,mm | 1550 | 2245 | 2020 | 2070 |
| Tread,mm | 1200 | 1400 | 1430 | 1430 |
| Overall dimension (L*W*H),mm | 4300*1430*2250 | 4600*1620*2330 | 4900*1600*2580 | 5000*1600*2650 |
| Engine power / speed | 18.7Kw/2200rpm | 20.23Kw/2200rpm | 24Kw/2550rpm | 44Kw/2200rpm |
| Hydraulic working pressure,Mpa | 16 | 16 | 16 | 16 |
| Hydraulic Max flow,ml/r | 32 | 32 | 50 | 63 |
| Rated load,Kgs | 800 | 900 | 1000 | 1500 |
| Gradeability | 25% | 25% | 25% | 25% |
| Min walking speed,Km/h | 10 | 10 | 10 | 10 |
| Max walking speed,Km/h | 25 | 25 | 25 | 25 |
| Lifting time of movable arm,s | 4.5 | 4.5 | 3 | 4 |
| Falling time of movable arm,s | 3 | 3 | 2.5 | 2.5 |
| Max.breakout force,KN | 10 | 10 | 10.5 | 23 |
| Min. turning radius,mm | 3200 | 3500 | 5000 | 5000 |
