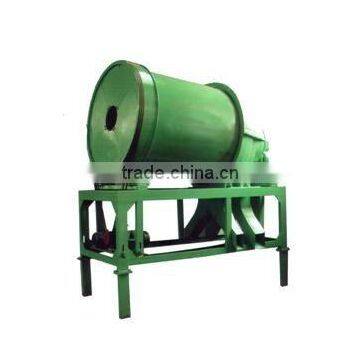

Drum Sieve(screening automatic feeder 5 drum-type automatic sieve shaker feeder)

Drum sieve drum 5 can also call screening automatic feeder 5 drum-type automatic sieve shaker feeder is the second and later generation of a new type of screen material special equipment. The overall design stratified isolated automatic screen feeding system, and fundamentally solve the power consumption of large vibrating screen, screen wear fast, difficult to replace the screen, and many other users are difficult to resolve problems. Sieve drum feeder with a high yield, loss of small, screening materials, low cost, simple installation, easy maintenance and so on. Is refractory factory, ceramics factory, furnace charge plant, coal washery, quartz powder factory sieve materials such as the ideal professional equipment manufacturers. This machine adopts the first screen coarse material (aniseed) fine after the screening material (small materials) and hierarchical design principles, so that the ordered screen significantly longer. As a result of rolling the basic principles of screening material, not only material in the sieve material online takes much less time, but is expected to make under the lower screen flows, screen no less than the material with the tilt screen scrolling to move forward, thus avoiding the vibrating screen easy to accumulate, easy to clip material, the material in the feed area residence time is too long.

The choice of screen mesh machine factory specifications for 1mm, 3mm, 5mm, 8mm, 4 sieve, on-line for more than 8mm, a total of 5 weed out the material. Users can choose according to their own material situation of the specifications of the replacement screen, replacement screen more easily, simply remove the screen layering and installing new screws can be online.

Drum screen feeder feed inlet design specifications for the φ400mm and with a certain degree of tilt, the user can use manual feed or automatic feeding systems. Inlet height from the ground 1650mm (feed port centerline) rolling screen feeder discharge port is divided into five, each set in different locations, you can ensure that a material without mixing, discharging port specification 100 200mm.

Screen out material when the manual loading, discharging port packaging bag can be fixed does not fall off, the replacement Liaodai discharge port when closed, so that a small amount of artificial replacement, mobile Liaodai time. Discharge port from the ground height 500 - 600mm, the user automatic discharge system, the machine discharge port to meet the minimum spacing of 400mm the average user automatic discharging system is installed.

This machine adopts transmission-type deceleration systems, the design speed and reasonable speed cylindrical 84 m / min, inner circle 57 meters / min. If users want to adjust when the screen is expected to replace a pulley rotational speed can be achieved only speed purposes.

5 drum-type screen feeder machine design using automatic closed system that can effectively prevent the vibrations of dust flying around the harsh environment, basically the site operator can guarantee physical and mental health.

This machine adopts three-phase 380V voltage systems, electrical power of 2.5 kW, basically solved the shaker power of big, easy to damage to motor bearings, long-term eccentric, vibration, heat and burning electric motor problems.

This machine adopts the overall design, installation and transportation convenient, not to fight foundation, can be connected to the power of production, greatly reducing the installation period. Professional Factory For a foundation to fight, just rack legs were fixed by one can be foot screw.

Basic parameters of Table

Note: The factory can produce sizes according to user requirements models

Note: while the special requirements of the user to re-design.
