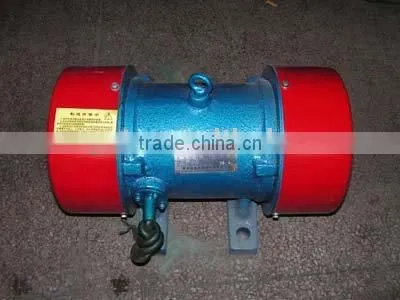

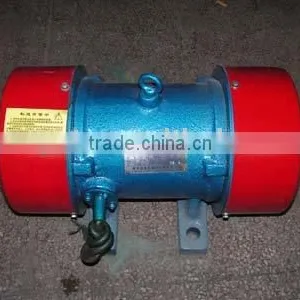

TZD Series Vibration Anti-occlusion (Warehouse Wall Vibrator)

Specifications

1.Prevent plugging ability is strong, low energy consumption, long life, excitation force is adjustable
2.Simple structure

TZD Series Vibration Anti-occlusion (Warehouse Wall Vibrator)

Uses and characteristics:

      TZD Series Vibration anti-blocking (also known as silo wall vibrator) is a lower position in the material directly to install the new equipment vibration broken arch. The machine size is small, light weight, simple structure, easy to use, to replace the electromagnetic type, wall-attached storage ideal vibrator.



Model	Voltage(v)	Power (Kw)	Suitable for warehouse wall thickness (mm)	Storage capacity of taper(m )	Exciting force (KN)	Vibration Frequency (Hz)	Amplitude (mm)	Weight (Kg)
TZD-4	380	0.15	3.2-4.5	1	1.5	50	1.5	28
TZD -5		0.25	4.5-6	3	2.5		2	40
TZD -6		0.37	6-8	10	5		2	60
TZD -10		0.75	8-10	20	8		4	90
TZD -15		0.75	10-13	50	17		4	180
TZD -25		2.5	13-15	150	30		5	220
TZD -40		3.7	25-40	200	50		5	280

Working principle and structure features:

TZD series of silo wall vibrator vibrating motor is to use the new high-speed rotation of the centrifugal effect, so that high-frequency vibration of the aircraft, thereby eliminating the friction material and the silo wall and the material inside the silo between the relative stability, so that a smooth material from the warehouse discharge port. Silo wall vibrators usually installed in the silo warehouses along the lower part of the high 1 / 4. If not steel silo or hopper vibration stiffener is not easy, there should be laying cabin vibration plate, vibration welding the warehouse wall vibration board, and fastened together on the silo. Month for maintenance of motor bearings to supplement grease; to periodically clear the dust outside the enclosure to improve the cooling conditions, but you can not wash with water. Periodic inspection insulation resistance, fastening anchor bolts to eliminate hidden perils.
