LS Spiral Elevator
1.LS screw hoist for transport medium and large block, the fragile and abrasive packing density of less than 2t/m3 materials, the material temperature does not exceed 2500C, such as lump coal, ore, gravel, coke, etc.

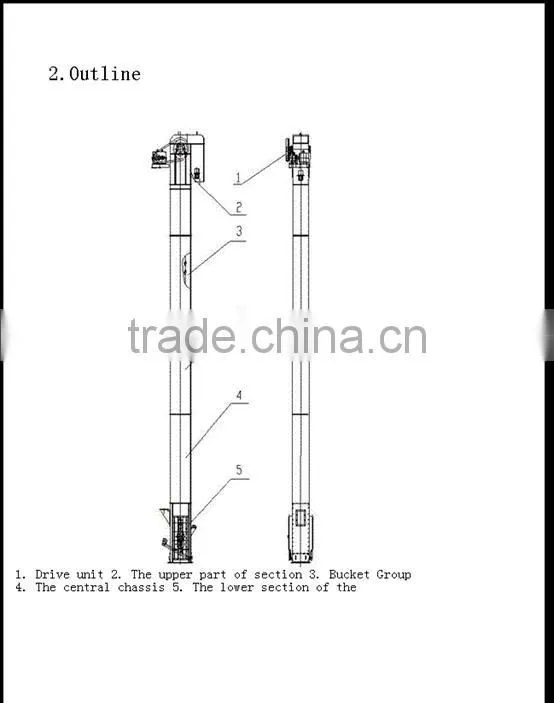

2.The main structure features:
This machine mainly made by the drive device, the upper section of the central chassis, chain bucket group, the lower section of the form.
3.Technical performance and the main parameters
Hoist Model |
TD250 |
TD315 |
TD400 |
TD500 |
TD630 |
TD800 |
TD1000 |
||
Hopper type |
J |
T |
|||||||
Throughput |
m3/h |
15-25 |
32-46 |
50-75 |
84-120 |
135-190 |
216-310 |
340-480 |
|
Hopper |
Bucket width |
mm |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
Bucket capacity |
L |
3 |
6 |
12 |
25 |
50 |
100 |
200 |
|
The Big Dipper away from the |
mm |
200 |
200 |
250 |
320 |
400 |
500 |
630 |
|
Chain |
Pitch |
mm |
100 |
100 |
125 |
160 |
200 |
250 |
315 |
Article Number |
|
1 |
2 |
||||||
Single breaking load (minimum) |
KN |
112/160 |
160/224 |
224/315 |
315/450 |
450/630 |
630/900 |
||
Sprocket pitch diameter |
mm |
386.37 |
386.37 |
482.96 |
618.19 |
772.74 |
965.92 |
1217.06 |
|
Spindle Speed |
rtm |
24.71 |
24.71 |
19.78 |
15.45 |
13.26 |
9.89 |
7.85 |
|
Note: The table throughput by filling factor = 0.6 ~ 0.85 calculated.
