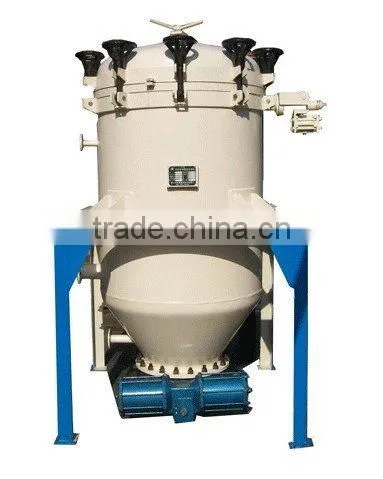

BL Slag Filter
1. Uses and characteristics:
The aircraft is the oil, chemical industry, light industry, food, medicine and other industries in the production process for an ideal solid-liquid separation filtration equipment.
2. Main specifications and parameters:
Design pressure: 0.49 Mpa maximum working pressure: 0.45 Mpa
Design temperature: 150 ° C Test pressure: 0.613 Mpa
If special requirements can be improved user requirements, the specialized production.
Vibrator parameters:
Air pressure 0.45 - 0.6 Mpa
Vibration frequency 3000 - 4500 times / min
3. How it works:
The aircraft belongs to pressure filtration equipment to filter the filtrate through the pump to be pumped into the tank into the drain pipe, and filled the role of pressure, the filtrate in the filtrate the solid impurities were retained on the filter and filter cake formed on the filtrate through the filter into the filtered fluid through the tube out of the tank, and thus obtain a clear filtrate.
With the increase of filtration time, was trapped in the filter on the increasing number of solid impurities, so that increasing the thickness of the cake, so that so that the filtration resistance increases, the tank pressure to rise, when the pressure rose to a certain values need to slag to stop irrigation until the filtrate will enter the compressed air blown into the tank through the overflow pipe, the hydraulic tank to be filtered into another filter, or other container, to pass into the steam tank dry cake, or clean filter in other ways. Close steam, open the butterfly valve, start the vibrator, so that leaves filter vibration, the vibration filter cake on the bottom of the tank down and with slag discharge port.
4. Structure Description:
BL-type filter is mainly a tank parts, lifting mechanism, vibrator, filter leaf, butterfly valve assembly, pressure display, etc. components.
5. Installation:
1. Installation process requirements, the slag filter installed on a vibrating platform, the fixed bearing tightening bolts, according to pick a good pipe flow chart.
Note: All valves shall be installed as the microscope is easy to operate in a readily observed in places.
2. The Manifold and vibration body, butterfly implementing agencies, the air intake pipe connecting well.
6. Operation and use:
1. Preparation before driving:
(1) Check the steam, compressed air pressure has to meet the requirements, ultra-low-pressure or pressure will affect the filter's work. Oil mist device by using the manual installation of oil demand.
Leading to the tank vapor pressure: 0.3 - 0.5 Mpa
Leading to the tank of compressed air pressure: 0.6 - 0.8 Mpa
Butterfly vibrating body and executive body of compressed air pressure: 0.45 - 0.6 Mpa
(2) according to flow chart requested pick a good pipeline, and check the pipe is correct.
(3) Check the filter bearing bolt is tightened.
(4) Check whether the flexibility to enhance reliable, and open the jar-cover, check whether the correct location filter installed leaf is good, whether it has been filtered inside and outside axle leaf clamp.
(5) Check the jar sealing edge sealing strip is embedded in a bath of damage.
(6) Lid recovery, evenly tighten the bolts to open soon.
(7) Check whether the vibrating object fixed bolt tightening, start vibrator, check the reliability of its work, with or without abnormal noise. If abnormal sounds, the reasons should be identified to be excluded.
(8) butterfly starts executing agency to check whether the valve opening and closing a flexible place.
