Specifications
1.Compact structure, less occupied area2.Good filteration effects, low dissipation
3.Mechanical slag discharge

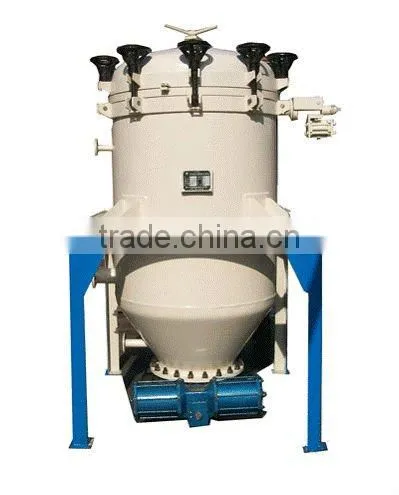

1.Introduction

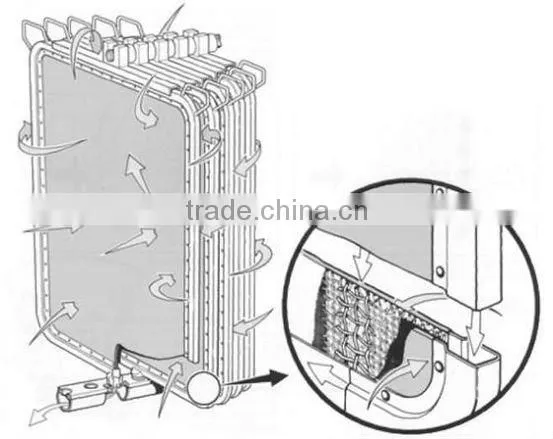

BL Series slag discharging filter is a kind of ingenious, high efficiency,sealed, adaptable multi-purpose filtration equipment. The series filter is apressure type filter. Until the filtrate into
the liquid from the mouth into the bag, the bag will be retained impurity particles, different particles of
the filtrate and the impurities can choose different materials and filtration precision bag, the
replacement bag convenience, the basic non-materialconsumption.
2.Features
1)Compact structure, less occupied area
2)Good filteration effects, low dissipation
3)Mechanical slag discharge
4)High productivity
3.Specifications
1. Filter area: 4m2 8m2 10m2 15m2 20m2 25m2 30m2 40m2 50m2 60m2 80m2 90m2
2. Operating pressure(Mpa):Rated pressure: 0.1-0.4;Max. pressure: 0.5
3. Operating temperature: decoloration ≤1500C, crude oil≤800C
4. Filter screen: according to customer requirements

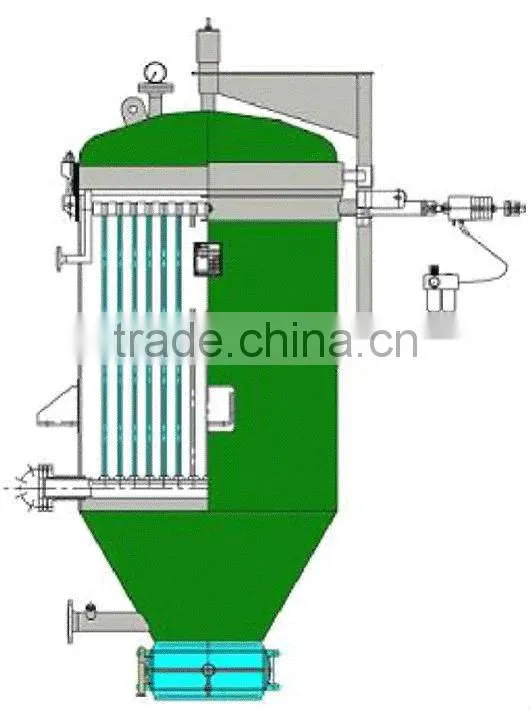

4.Structural drawing
5.Application
Widely used in oil production, chemical, light, food, pharmaceuticals
industry etc., suitable for solid-liquid separation.
