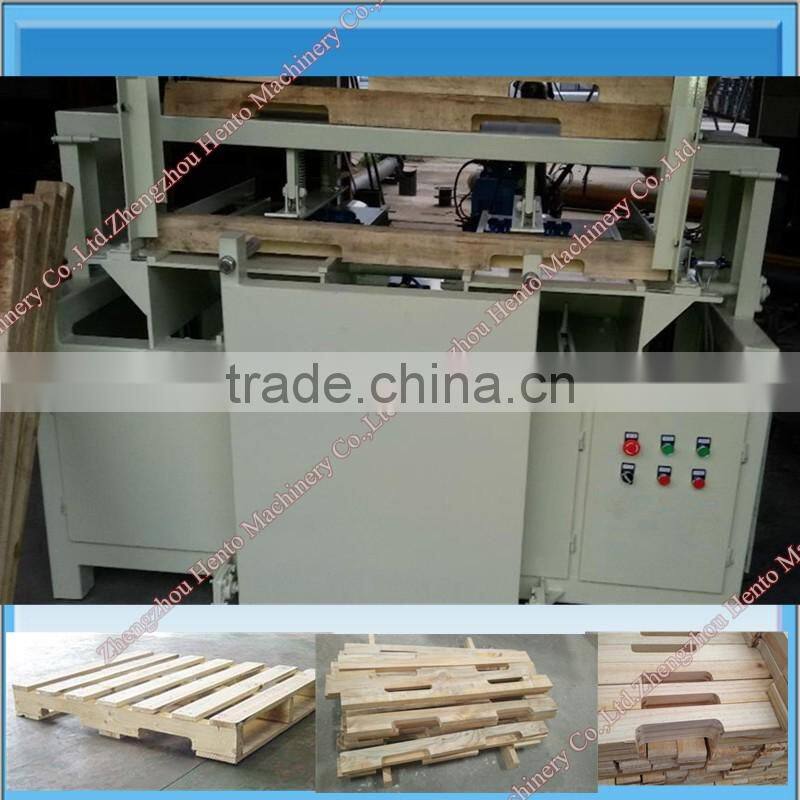

Wood Pallet Notching Machine With Low Price For Wood Block Processing
1.Machine introduction:
1) machine heads with alloy material, with high hardness, wear resistance, strength and toughness, heat resistance, corrosion resistance and a series of excellent performance, thus ensuring the long-term performance of the machine.
2) the use of a continuous feed, work platform automatic discharge mode, you can also open a dual-slot, Trench smooth without rough parts, standard size, high precision, adjustable slot depth specifications;
3) reliable security guards, when workers operate completely without touching knives, quiet high;
4) product design, design ideas unique in the country.
5) its high-quality, safe, practical, efficient and a series of properties, so that more wood pallet wood factory automation to improve mechanical, completely replace the previous trough excavation work manually.
2 Widely application
1) it is special process for wood pallet processing ,Which it can be fork from four directions by forklift,It becomes popular pallet type in the world .
2)it is suitable for different notching size ,it also can be customized by customer demands.
3. Technical parameter
Model | HTO-KCJ54 |
Capacity | 1800pcs/h |
Power | 22kw |
Voltage | 380v/3phase |
Weight | 660kg |
Dimension | 2000*1200*1600mm |
Processing Size | Board length:<1300mm Width:90mm;thickness:40-60mm Notching depth:30-50mm Notching width:200-350mm
|
Working principle | Continuous feeding and discharging,double notch done
|
4.Contact information:
