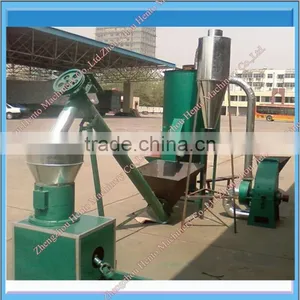

Flat Type Pellet Maker For Wood Sawdust/Animal Feed Material
1.Production introduce
This series flat die pellet presses can be used for producing wood pellets and biomass pellets, too. Wood pellets are made of all kinds of wood waste. Biomass pellets are made of peanut sheller, corn stalk and other biomass materials. In the process of making wood pellets, the lignin and resin of woods can serves as binder for pellet briquetting. If the material lack of resin, starch or sugar can be used as binder or it won’t form wood pellets by flat die pelleting press. In fact, this kind of small pellet press is very easy to operation if you master some important means to mix suitable materials. The small pellet press are very convenient for solving the wast of wood mills or agri-farm. The biofuel pellets produced by them can bring you a warm winner for fireplace or supply as fuel for cooking.
2.Technical parameter
Model |
Capacity |
power |
Size mm |
Weight |
HTO-KLJ120A |
50-80kg/h |
8hp( diesel motor) |
870*440*730 |
140kg |
HTO-KLJ120B |
50-80kg/h |
3kw (3 phase) |
750*320*510 |
100kg |
HTO-KLJ120B |
50-80kg/h |
2.2kw (single phase) |
800*300*600 |
100kg |
HTO-KLJ150A |
100-150kg/h |
8hp( diesel motor) |
1100*500*950 |
150kg |
HTO-KLJ150B |
100-150kg/h |
4kw |
750*350*650 |
120kg |
HTO-KLJ200A |
150-250kg/h |
15hp(diesel motor) |
1200*60*1000 |
250kg |
HTO-KLJ200B |
150-250kg/h |
7.5kw |
1000*430*950 |
230kg |
HTO-KLJ230A |
200-300kg/h |
22hp (diesel motor) |
1180*560*880 |
300kg |
HTO-KLJ230B |
200-300kg/h |
11kw |
1140*470*970 |
320kg |
HTO-KLJ260B |
300-450kg/h |
15kw |
1200*500*1070 |
360kg |
HTO-KLJ300B |
500-600kg/h |
22kw |
1270*520*1070 |
370kg |
HTO-KLJ360A |
600-700kg/h |
22kw |
1270*520*1070 |
450kg |
HTO-KLJ400A |
700-800kg/h |
30kw |
1470*600*1150 |
500kg |
3.Contact information
If you need further information, please contact us freely, we will do our best to cooperate with you.
