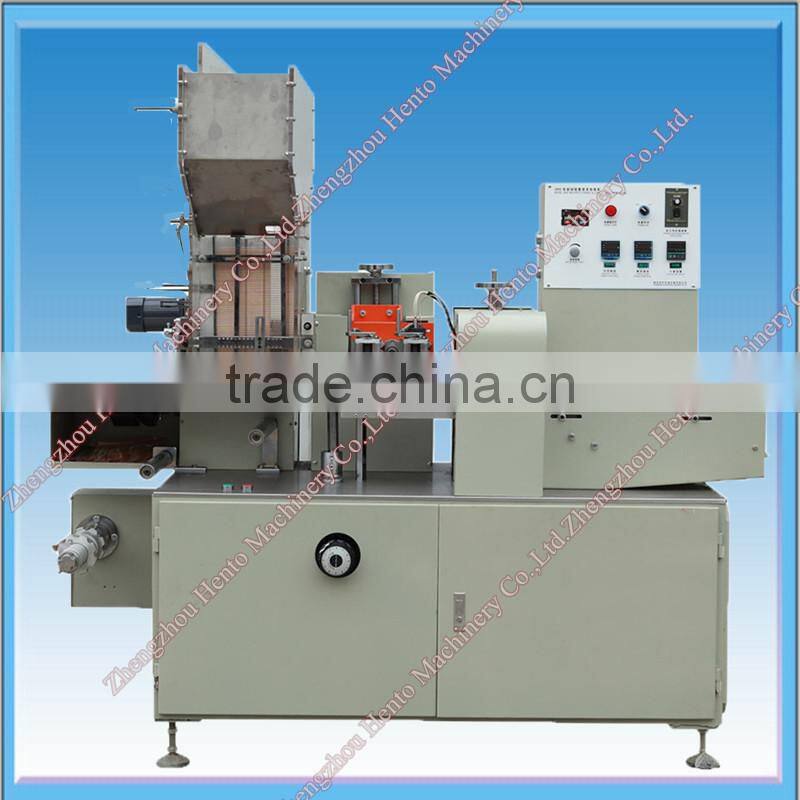

Automatic Plastic Drinking Straw Making Machine Price
1.Machine introduction
An ideal color drinking straw making machine for colorful straight straws
SDSI series high speed straw machine is our new design. It adopts the screw diameter 50mm instead of 45mm, and L: D is 28: 1. The new design makes it much easy to plasticize and increase output. It is an economical perfect machine for drinking straws.
Characteristics:
Colours: Single, two, three or five, spiral stripes, straight stripes.
Cut end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°
All the direct contact parts made from stainless steel.
The cutting unit adopted the big plate cutter and with automatic gathering system.
The breaker, AC contactor and knob switch brand is SCHNEIDER
The inverter is DELTA
2. Technical parameters:
Colour |
Single |
Two |
Three |
Diameter of screw: |
50mm |
50mm+1x25mm |
50mm+2x25mm |
L:D |
28:01:00 |
28:1 / 20:1 |
28:1 / 20:1/20:1 |
Max. extrusion capacity |
35kgs/h |
||
Material |
PE / PP |
||
Specification of straw |
Diameter.:φ2- φ 14mm |
||
Length tolerance:± 0.1 -1mm | |||
Thickness:0.05-1mm | |||
Capacity |
30000-60000pcs/h |
||
Power of extruder |
11kw,380v,50hz |
11kw+0.75kw,380v,50hz |
11kw+2x0.75kw,380v,50hz |
Model |
HTO-XGJ35 |
||
Power of hauling machine |
0.75kw,380v,50hz |
||
Power of cutter |
0.75kw,380v,50hz |
||
Power of gathering system |
0.18kw,380v,50hz |
||
Temperature controlling |
5 sections |
8 sections |
11 sections |
3.Contact information:
If you need further information, please contact us freely, we will do our best to cooperate with you.
