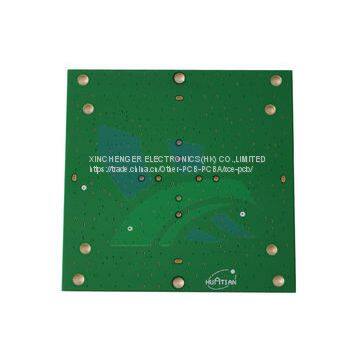

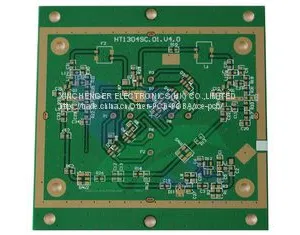

6 Layer Rogers High Frequency Board Use For communication products
Quick detail:
| Origin:China | Special: High frequency pcb |
| Layer:6 | Thickness:0.79mm |
| Surface: ENIG | Hole:0.8 |
Specification:
High frequency pcb high-performance insulating material for microwave, radio frequency (RF) and high-speed digital signal processing (DSP) market with PTFE/type woven glass fiber fabric sheet.This material can be applied to LNAs LNBs, PCS/PCN antenna system, global positioning system (GPS) and UMTS antenna system,And the power amplifier, passive components, collision avoidance radar system, aviation help guide remote control technology and system of the phased array radar.
High frequency materials are UL 94V-0 rated for active devices and high power RF designs.
Typical Applications
Cellular Base Station Antennas and Power Amplifiers
Microwave point to point (P2P) links
Automotive Radar and Sensors
low dielectric loss
RF Identification (RFID) Tags
The stability of the dielectric constant
An extremely low water imbibition
LNB’s for Direct Broadcast Satellites
RO3200 series material RO3203 (r = 3.02) and RO3210 (r = 10.2) two composition, suitable for application RO3000 series material but need better mechanical strength of the occasion. RO3200 series material is a combination of PTFE / ceramic with PTFE / woven fiberglass laminated, with good rigidity and RO3000 materials, the material in this series can also be produced with mixed FR4 multilayer MLB

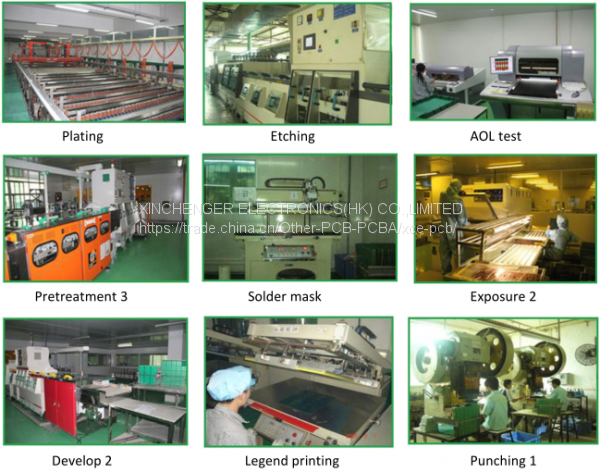

Parameter:
| o | Item | Data |
| 1 | Layer: | 1 to 24 layers |
| 2 | Material type: | FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
| 3 | Board thickness: | 0.20mm to 3.4mm |
| 4 | Copper thickness: | 0.5 OZ to 4 OZ |
| 5 | Copper thickness in hole: | >25.0 um (>1mil) |
| 6 | Max. Board Size: | (580mm×1200mm) |
| 7 | Min. Drilled Hole Size: | 4mil(0.1mm) |
| 8 | Min. Line Width: | 3mil (0.075mm) |
| 9 | Min. Line Spacing: | 3mil (0.075mm) |
| 10 | Surface finishing: | HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating |
| 11 | Solder Mask Color: | Green/Yellow/Black/White/Red/Blue |
| 12 | Shape tolerance: | ±0.13 |
| 13 | Hole tolerance: | PTH: ±0.076 NPTH: ±0.05 |
| 14 | Package: | Inner packing: Vacuum packing / Plastic bag,Outer packing: Standard carton packing |
| 15 | Certificate: | UL,SGS,ISO 9001:2008 |
| 16 | Special requirements: | Buried and blind vias+controlled impedance +BGA |
| 17 | Profiling: | Punching, Routing, V-CUT, Beveling |
Features
• High Thermal Performance
Tg: 180°C (DSC)
Td: 340°C (TGA @ 5% wt loss)
Low CTE for reliability
• T260: 60 minutes
• T288: 30 minutes
• RoHS Compliant
• UV Blocking and AOI Fluorescence
High throughput and accuracy during PCB
fabrication and assembly
• Superior Processing
Closest to conventional FR-4 processing
• Core Material Standard Availability
Thickness: 0.002″ (0.05 mm) to 0.125″
(3.2 mm)
Available in full size sheet or panel form
• Prepreg Standard Availability
Roll or panel form
Tooling of prepreg panels available
• Copper Foil Type Availability
Standard HTE Grade 3
RTF (Reverse Treat Foil)
• Copper Weights
½, 1 and 2 oz (18, 35 and 70 μm) available
Heavier copper available upon request
Thinner copper foil available upon request
• Glass Fabric Availability
Standard E-glass
Square weave glass fabric available
Spread glass fabric available
• Industry Approvals
IPC-4101C /21 /24 /26 /97 /98 /99 /101 /126
UL - File Number E41625 as PCL-FR-370HR
Qualified to UL's MCIL Program
Rogers material in stock:
| Brand | Model | Thickness(mm) | DK(ER) |
| F4B | F4B | 0.38 | 2.2 |
| F4B | 0.55 | 2.23 | |
| F4B | 0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 | 2.65 | |
| F4Bk | 0.8,1.5 | 2.65 | |
| F4B | 0.8 | 3.5 | |
| FE=F4BM | 1 | 2.2 | |
| Rogers | RO4003 | 0.254 0.508,0.813,1.524 | 3.38 |
| RO4350 | 0.254 0.508,0.762,1.524 | 3.5 | |
| RO5880 | 0.254.0.508.0.762 | 2.2 | |
| RO3003 | 0.127,0.508,0.762,1.524 | 3 | |
| RO3010 | 0.635 | 10.2 | |
| RO3206 | 0.635MM | 10.2 | |
| R03035 | 0.508MM | 3.5 | |
| RO6010 | 0.635MM, 1,27MM | 10.2 |
Karen-Sales Department
Xinchenger Electronics(HK) CO.,Ltd
sales3@xcepcb.com
Skype:karen-xcepcb
