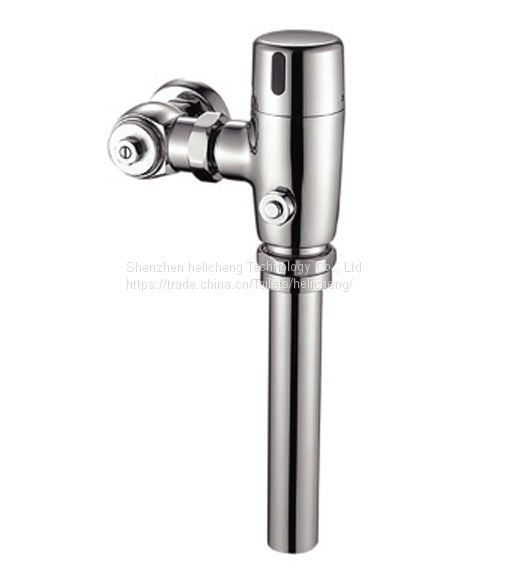

MODEL:H-B55 (surface mounted stool induction flushing device)
Power supply: DC6V (4 section 5 alkaline battery), or AC220V (AC / DC power supply)
Static power consumption: less than 0.5mW (AC6V)
= 3W (DC220V)
Range: automatic ranging
Hydraulic pressure: 0.02-0.8Mpa
Best design water pressure: 0.1-0.3Mpa
Using ambient temperature: 1-55
The water pipe diameter: G (1/2) "(DN15)
Functional properties:
1, water saving: the use of water after each use of the machine 6L (Note: water pressure is 0.3 ~ 0.6Mpa)
2, health: all the washing action is automatically completed by the sensor, without human operation. Rinse thoroughly, do not leave odor, can effectively avoid cross infection of bacteria.
3, the installation characteristics: the installation design, suitable for standard wall installation.
4, intelligent deodorant: when the toilet is in long-term use, the flush valve will every 24 hours flushing time, to prevent the trap in the water dried up, causing odor review.
5, anti fouling function: can prevent the sewage back, polluted water.
6, the shelf life of one year.
The stool sensor is through infrared reflection principle, when the red line area in the body of the squatting pan, the infrared emission tube infrared rays emitted by the human body due to the reflection of blocking the infrared receiving tube, the signal sent by the microcomputer processing within the integrated circuit after the pulse electromagnetic valve, solenoid valve after receiving signal according to the instructions given to open the valve to control the water machine. It is with the induction urinal flushing toilet is induced in different ways, in the human body infrared induction machine, in the pending working state, the machine does not wash, when the body leaves the infrared sensing range after induction toilet began to wash, finally through the spring internal electromagnetic valve core reset to control the toilet off water. The flushing time and closing time of the induction stool are set according to the instruction set.
