Constant Temperature Ultrasonic Homogenizer
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Condition | New | Mixer Type | Homogenizer | |
| Product Type | Other, Scientz Ultrasonic Homogenizer | Application | Liquid | |
| Additional Capabilities | Milling | Place of Origin | Zhejiang, China | |
| Brand Name | Scientz Ultrasonic Homogenizer | Model Number | Scientz Ultrasonic Homogenizer | |
| Max. Loading Capacity | 600ml | Voltage | 220V/50Hz 110V/60Hz | |
| Power(W) | 2800W | Dimension(L*W*H) | 400*500*750 mm | |
| Certification | CE,ISO,BV,ISO13485, CE, ISO9001:2008, ISO 13485-2003 | Warranty | One year | |
| After-sales Service Provided | No overseas service provided |
Product Description

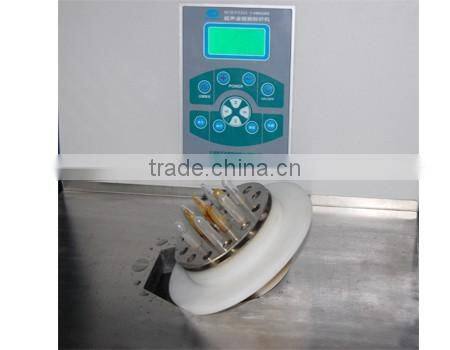

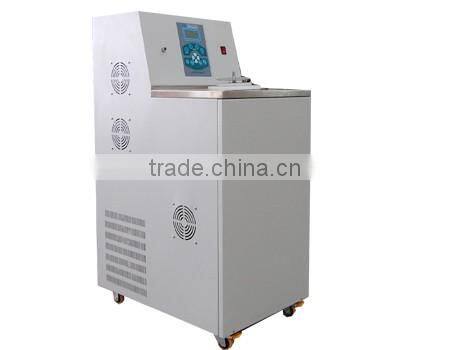

Constant temperature ultrasonic homogenizer SCIENTZ11-II
1)working principle:
The machine consists of ultrasonic generator and ultrasonic transducer components of the two major components. Ultrasonic generator (power) is to 220VAC, 50Hz single-phase power through the inverter into 19.5-21kHz, about 600V of the alternating power, and to match the appropriate impedance and power to promote the transducer for longitudinal mechanical vibration, Vibrational waves through the immersion in the sample solution of titanium alloy horn on the various types of cells have been broken cavitation effect, so as to achieve the purpose of broken cells. The electrical principle of the rectifier power supply, switching power supply, frequency conversion system, power amplifier, phase-locked frequency automatic tracker, power regulator, power detector, power protection and microcomputer control and other components.
Transducer assembly is composed of piezoelectric oscillator, variable amplitude amplifier composed of energy to produce mechanical energy variable amplitude device.
2)Technical parameters:
Product Model SCIENTZ11-II
working frequency
Range 19.5-21KHZ
Ultrasonic power 2800W
Operating voltage 220VAC, 50Hz
In this case,
Ultrasound time 0.1-99.9 seconds
Gap time 0.1-99.9 seconds
Full time 1-999 minutes
Power setting 1-99%
Duty cycle 0.1-99.9%
Temperature protection 0-99 ℃
Constant temperature temperature 5 ℃ - room temperature
Working environment Indoor (no humidity, no sunshine, no corrosive gas)
Sample range: 50ml*t 6 / 10ml*18 /5ml*18/ 1.5-2ml*24 /0.5-1ml:*30
(centrifuge tube)
Certificates:
1. Obtained ISO 9001:2008 and ISO 13485.
2. Obtained many CE Certificates:
3. Obtained BUREAU VERITAS (BV ) Certificate:
