900w 0.5-500ml Touch screen ultrasonic processor

Name: 900w 0.5-500ml Touch screen ultrasonic processor
Brand: Scentz
Price: USD $1 - 2,000 / Set

FOB Price

USD $1 - $2,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Ningbo
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Scentz

Model Number:

JY92-IIDN

Place of Origin:

Zhejiang, China

Product Description

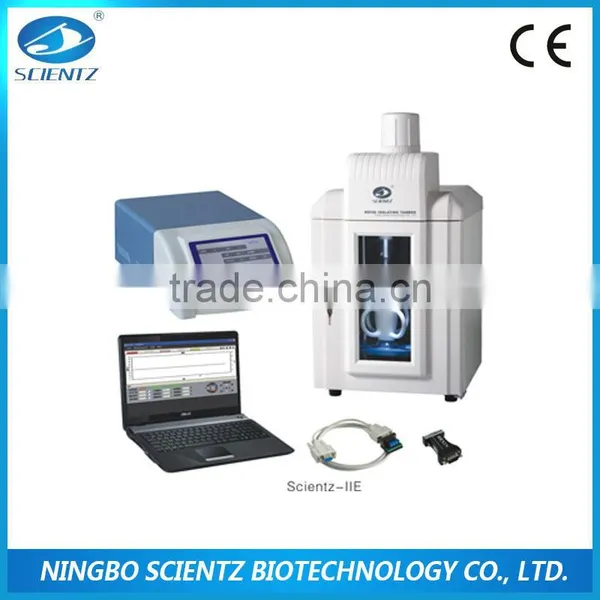

900w 0.5-500ml Touch screen ultrasonic processor:

1. It has a large-screen display and concentrated control by a central computer.

2. The ultrasonic time and power can be set accordingly.

3. Such functions as sample temperature display, actual frequency display, computerized tracking

JY92-IIN,JY92-IIDN Patent:ZL200920122245.6

JY92-IIN,JY92-IIDN Ultrasonic Homogenizer

Main Technical Parameters:

MODEL	JY92-IIN	JY92-IIDN
Frequency	20-25 KHz	20-25 KHz
Power	700w W	900 W
Sccessories	6mm	6mm

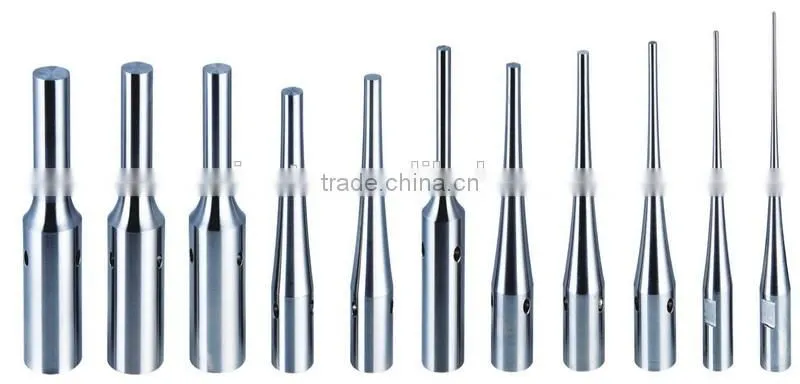

Optional Tip	2,3,10,12,15mm	2,3,10,12,15mm
Crushing Capacity	0.5-500 ml	0.5-500 ml
Duty Ratio (%)	1-99 %	0.1-99.9%
Supply	220/110V 50Hz/60Hz	220/110V 50Hz/60Hz
Power supply chassis Size and Weight	402822(cm);12.1Kg	402822(cm);12.1Kg
Mainframe Weight	14 Kg	14.2 Kg
Packing Size	534295435mm	534295435mm

Mainframe Weight	14.5 Kg	14.6 Kg	15Kg
Packing Size	534295435mm	534295435mm	534295435mm

Ultrasonic Homogenizer / ultrasonicator/ultrasonic processor

It is also called Ultrasonic homogenizer,processor or diperser.

A Sonicator system is comprised of 3 major components: Generator, Converter and Horn (also known as a probe).

The new model of the SJIA -W feaures:

series is integrated with Temperature Monitor optional.

LCD display screen clearly displays all operating parameters and options:

Temperature,time,output power etc.

Temperature monitor to protect sample from overheating.

50 program can be stored.
Warranty :12 months after received mashine.

Features:

FULL AMPLITUDE CONTROL

Amplitude (intensity) is controlled from 1-100% giving a greater degree of resolution and the ability to pinpoint the amplitude needed to effectively process your sample.

PROGRAMMABILITY

Parameters including processing times, pulse on/off and power output ,it can be saved to memory and run by the touch of a button.This new system can restore more than 50 custom program.

PULSE MODE

Adjustable pulse On and Off times to reduce the heat gain in temperature sensitive samples.

AUTO TUNING

The Sonicator digitally tracks frequency changes in the

converter/ tip assembly caused by load and temperature

changes and maintainelectrical efficiency at all times.

Manual tuning is unnecessary.

TEMPERATURE MONITORING

An optional temperature probe is available for those customers who wish to monitor the temperature of their sample. If the temperature limitis reached, sonication shuts down toprevent overheating

Application:

Biological / Biotech

Sonication is an ideal tool for lysing bacteria, yeast and tissue cells for the extraction of protein,DNA, RNA, and cellular components. DNA shearing (ChIP Assay) is a very common application.

Pharmaceutical

Cell disruption is common in analytical, quality control, and R & D labs to perform numerous functions from mixing and degassing of analytical samples, to cracking open tablets for dissolution tests. Liposomes and emulsions are easily formed by Sonication for microencapsulation purposes in the production of creams and lotions.

Chemical

Sonication accelerates both physical and chemical reactions,.Major advances in sonochemistry include chemical synthesis of catalysts and new alloys, catalyzing organo-metallic reactions, micro-encapsulation of protein and hydrolyzing esters. The use of sonication provides greater yields, increases overall efficiency, and saves energy.

Industrial

Industrial uses include forming emulsions, catalyzing reactions, extracting compounds, and reducing particle size. Continuous,

Environmental

Sonication is used by environmental testing labs to process soil and sediment samples.Sonication takes just 8-10 minutes per sample versus 4-18 hours by soxhlet extraction, it uses half the solvent and improves contaminant yields.

Quality Guarantee

1.1 year warranty for our machine.

Spare parts free on condition that there is any convictive broken .

After service

24-hours service and technical support on our autoclave machine, including the machine from other supplier.

Mingtai Meical QC Team
QC team have 100% inspection and random check on the parts and machine, ensure 100% products with

high quality.

Contact Us

Any enquiry or requirement was highly appreciated, and would be replied within 12 hours.

Any enquiry on lab device details , e.g.:sonicator Dental autoclave, freeze dryer ,water bath ultrasonic cleaner, sealing machine, oral camera... pls contact us freely.

Transportation

Delivery is freely based on the requirement of customer. e.g.: by Sea, by Air, By courier.

Contact Us

Ningbo Scientz Biotechnology Co., Ltd.: Contact namezukang wang; Phone86-574-88350013; Address#65 Hi-Tech Park, Ningbo ,China Ningbo,Zhejiang
