Automatic PVC PET PP OPS Thermal Shrink Sleeve Labeling Machine

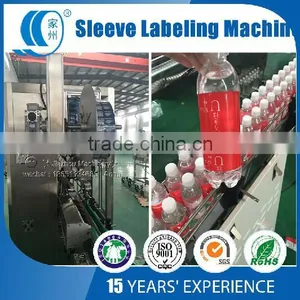

Automatic PVC PET PP OPS Thermal Shrink Sleeve Labeling Machine thumbnail-1
Automatic PVC PET PP OPS Thermal Shrink Sleeve Labeling Machine thumbnail-2
Automatic PVC PET PP OPS Thermal Shrink Sleeve Labeling Machine photo-1
Automatic PVC PET PP OPS Thermal Shrink Sleeve Labeling Machine photo-2
US$ 10,800 - 12,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port for Thermal Shrink Sleeve Labeling Machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Chemical
Packaging Type Bottles
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V
Power 4.8kw
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number SLM-150
Dimension(L*W*H) 300*900*1400mm
Weight 500KGS
Certification ISO9001CE
After-sales Service Provided Engineers available to service machinery overseas
PET Bottle Sleeve Labeling Machine
P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Automatic PVC PET PP OPS Thermal Shrink Sleeve Labeling Machine

PET Bottle Sleeve Labeling Machine

1.The  hot sale bottle neck automatic heat shrink sleeve label machine is unwound evenly from the reel via feed roller and conveyed to the cutting unit via the sleeve supply unit.

 2. The  hot sale bottle neck automatic heat shrink sleeve label machine sleeve is opened by pulling it over a mandrel, a servomotor-controlled cutter cuts the sleeves exactly to the set length. After that, the under-brush pulls the sleeves over the container.

3. Depending on the container shape and the sleeve size, an optional positioning anna brush moves the sleeve to the desired position. As a result, each sleeve is in perfect position and cannot slip.

4.Optional hot-air nozzles shrink and pre-position the sleeves.After that, the sleeves are shaped perfectly around the container contour in a steam or hot-air tunnel.

Product display Automatic PVC PET PP OPS Thermal Shrink Sleeve Labeling Machine
Automatic PVC PET PP OPS Thermal Shrink Sleeve Labeling MachineAutomatic PVC PET PP OPS Thermal Shrink Sleeve Labeling MachineAutomatic PVC PET PP OPS Thermal Shrink Sleeve Labeling Machine
Product Parameters Automatic PVC PET PP OPS Thermal Shrink Sleeve Labeling Machine

Technical Parameters

Production capacity    150b/min
 Labeling accuracy    ± 1mm
 Label max width   190mm
 Bottle diameter  30-Φ100mm
 Label inner diameter  76.2mm
 Label outer diameter  330mm
 Outline size  2000×700×1400mm
 Air source   3-5kg   30L/min
 Using power      220V 50Hz 1200W
