Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Bottles |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V/380V | Power: | 18kw | Place of Origin: | Jiangsu, China |
Brand Name: | jiazhou | Model Number: | PM-A400 | Dimension(L*W*H): | 5050*3300*2100mm |
Weight: | 1200KG | Certification: | ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

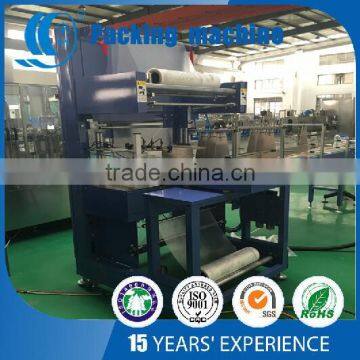

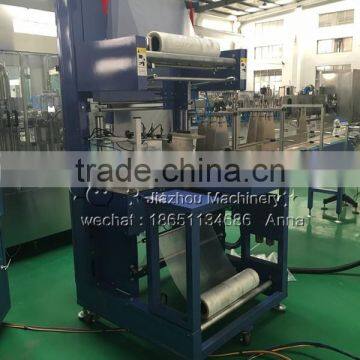

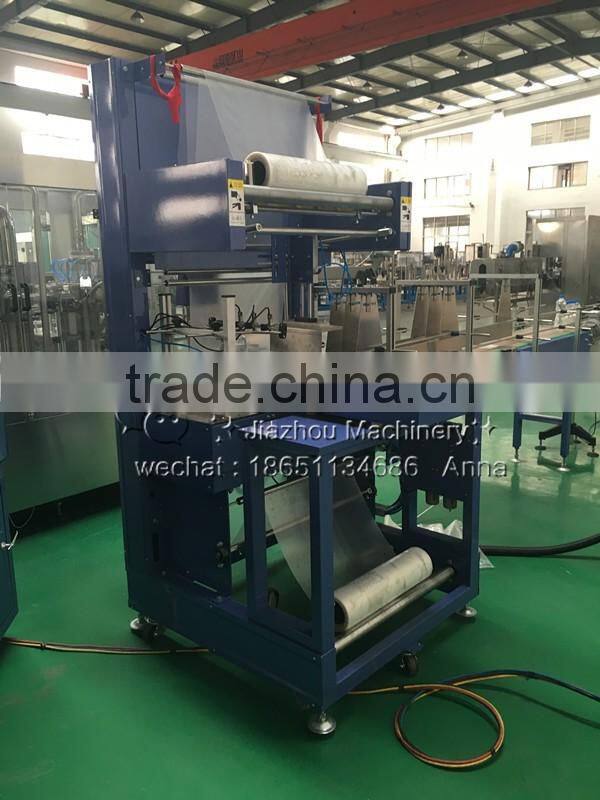

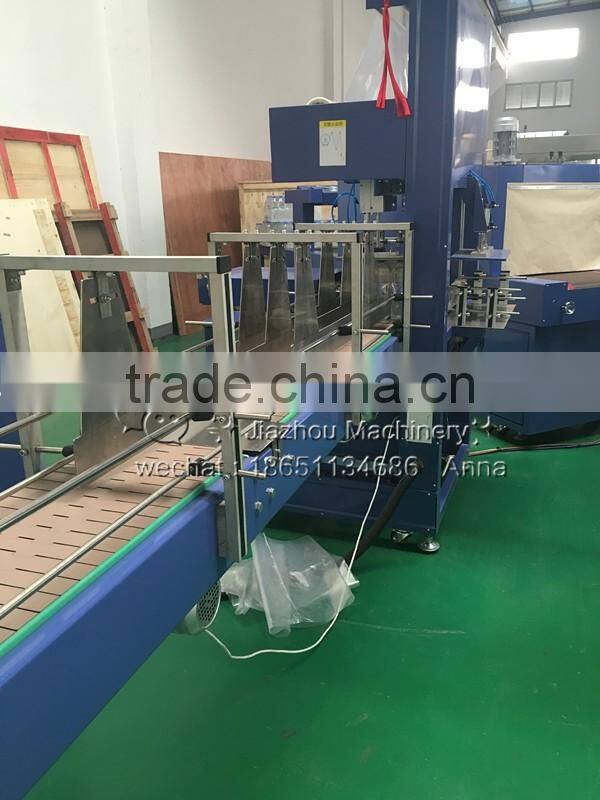

Automatic Bottle Film Wrapping Shrinking Machine / Packing Machinery
Part 1 Application

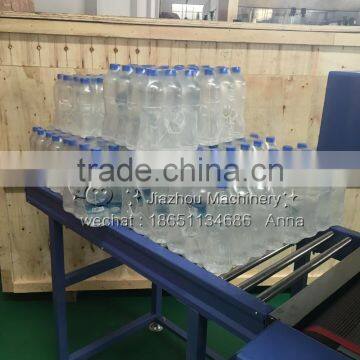

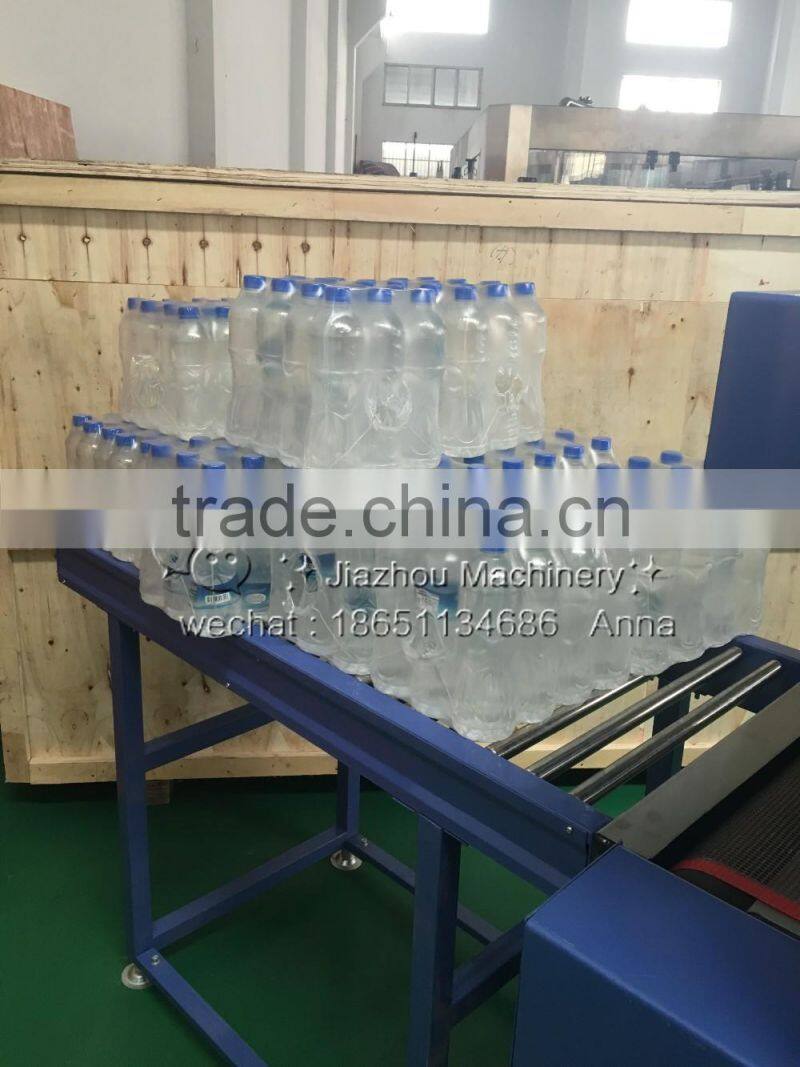

The bottle shrink wrapping machine is used for collective packing of mineral water, wine, beer, beverage and infusion bottle etc. It doesn't need backing board, and it make the products packed fastening and artistic.
Part 2 Features
1. Many protection functions, more safe and reliable.
2. New design and easy for after-service and maintenance.
3. Firm and durable.
4. PLC is adopted for electric control, can set special wrapping position reinforcement.
5. Turntable position restored automatically;
6. Can set packing types automatically&manual operation also;
7. Indicator alarmed automatically;
8. Photo electric load height sensing;
Part 3 Technical Parameter of equipment
Electrical source: AC 380V/220V 50HZ
Maximum power: 18KW
Working air pressure:0.6 MPa
Air compressor requirement: exhaust pressure: 0.8MPa, flux: 0.25m3/min
All kinds of thermal shrinkage film for example: PE,PP,PVC,POF
Width of wrapping film:≤600mm
Thickness of wrapping film: 0.03-0.15mm
Feeding conveyor height: 920mm(adjustable)
Length of feeding conveyor:2600mm
Outlook dimension of equipment: 5050*3300*2100 mm
Total Weight of equipment: 1200kg
Our service:
1.Jiazhou company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2.Jiazhou company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3.Jiazhou company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
Aftersale service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.
