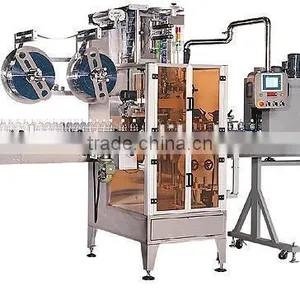

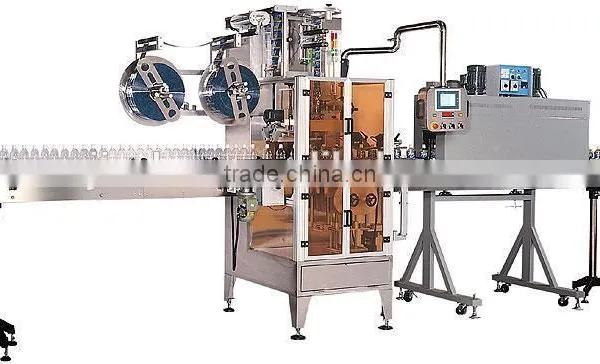

Help CenterSleeve Labeling Machine With Label Shrinking Tunnel and Steam Generator
Related Products
-
Plastic Bottle Steam Shrink TunnelUS$ 1,000 - 1,280MOQ: 1 Set -
Automatic Sleeve Label Shrink Machine for BottleUS$ 10,800 - 12,200MOQ: 1 Set
-
Semi Automatic PE Film Stretch Film Wrapping MachineUS$ 1,880 - 2,880MOQ: 1 Unit
-
Bottle Sleeve Labeling Machine ChinaUS$ 1,080 - 10,000MOQ: 1 Set
-
Hot Air Circle Dryer Tunnel Dryer for BottleUS$ 1,380 - 2,380MOQ: 1 Set

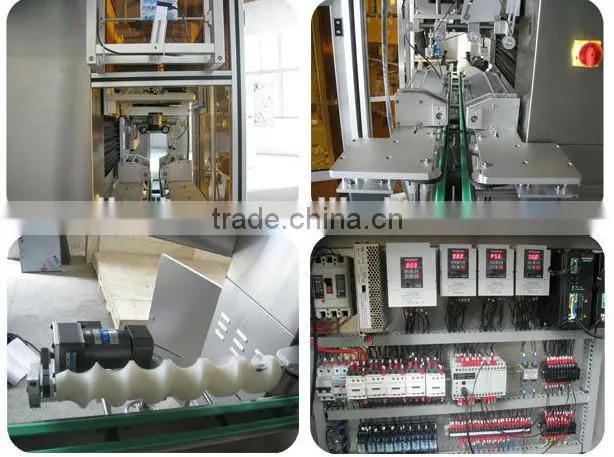

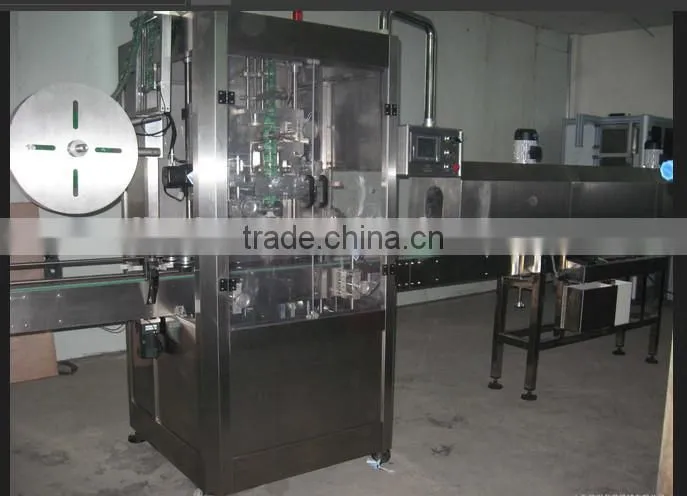

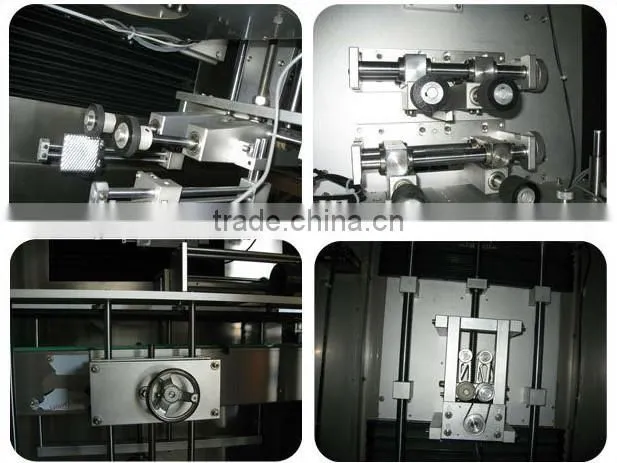

automatic shrink sleeve label machine for bottle

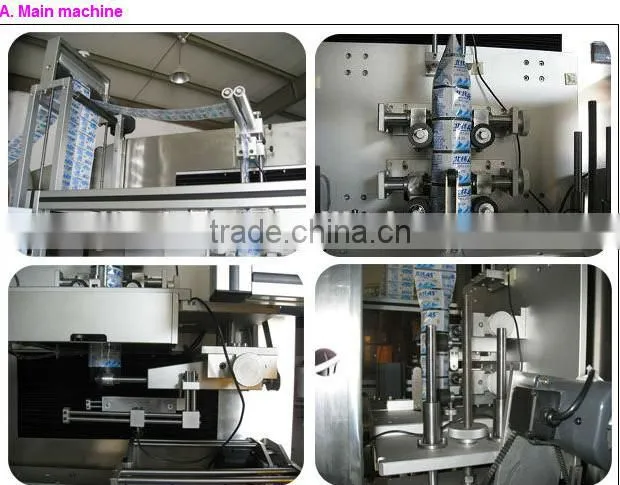

(1) Main machine: 1000 mm L x 860 mm W x 1800 mm H
(2) Weight: Approximately 700kgs
(3) Diameter of bottle: ψ25~ψ50m/m, ψ50~ψ95m/m, ψ95~ψ125m/m, one dimension to be chose from three options, special specification can be made to meet customer’s demands.
(4) Shrink label cut length: 25mm - 280mm
(5) Inner core: 5” to 10"
(6) Speed: Max 250BPM (label height 100 mm)
(7) Voltage: 3 phase / 220V or 380V
(8) Consumption Power: 3KW
No. |
Name |
Qty |
No. |
Name |
Qty |
1 |
label unwind |
one set |
9 |
Driving Section |
one set |
2 |
Bottle Hugger System |
one set |
10 |
Adjustable Knife Plate |
one set |
3 |
feeding device |
two set |
11 |
label brushing |
one set |
4 |
Fork Photo Sensor |
one set |
12 |
Auto up/Down Table |
one set |
5 |
Mandrel |
one set |
13 |
Interface Control unit |
one set |
6 |
Shrink Tunnel |
one set |
14 |
brush section |
one set |
7 |
Conveyor frame 2440mm |
one set |
15 |
Protection hood |
one set |
Electrical list
Items |
Name |
Brand |
1 |
switch |
Meilan |
2 |
Current protector |
Schneider |
3 |
Electromagnetic contactor |
Schneider |
4 |
Relay |
Omron |
5 |
Button |
Schneider |
6 |
PLC |
SIEMENS |
7 |
Inverter |
Panasonic |
8 |
Motor |
KINCO |
9 |
Motor |
TWT |
10 |
bearing |
NSK |
11 |
Interface |
EASYVIEW |
