Automatic 3-in-1 Fruit Juice Production Line/equipment
- shanghai
- T/T
You May Like
-
Fruit Juice Production Line/juice Filling Machine /hot Juice Filling Machine
-
Aseptic Fruit Juice Filling / Making Machinery---PET Bottle Good Choice For Juice Processing Plant
-
Hot Beverage Filling Machine/automatic High Speed Passion Fruit Juice Filling Machine
-
PET Bottle Juice Making Machine
-
Automatic Pomegranate Juice Filling Machine
-
Beverage Ultraviolet Radiation Sterilizer
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JZ | |
| Model Number | RGCF | Certification | ISO |
Product Description
2000-24000BPH fruit juice production line

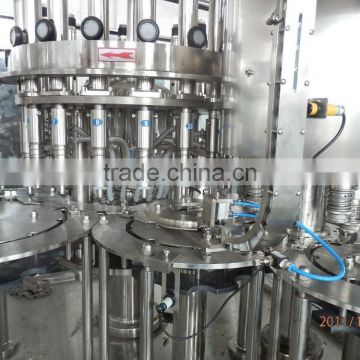

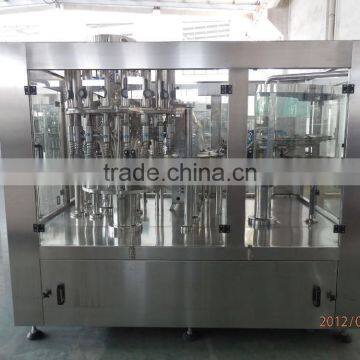

The filling part will finish the work to fill beverage into the bottles which have been washed.
Filling valve adopts pressure filling, with fast and high accuracy of filling liquid level.
No spring in the valve, and the product will not touch with the spring, it's good for clean the inner part of the valve. To make sure of the filling technology and filling temperature, the product in the filling valve will be in light reflux status when no bottle or shut down.
Filling tank uses full tank type to make sure stable pressure.
The machine has complete CIP cleaning interface.
Adopts double guide rod bottle lift structure, to make the lift and centering stable.
The main drive adopts gear drive, with high efficiency, low noise, long life, easy maintenance, sufficient lubrication, grease can lubricate centralizing automatically, adopts transducer to the speed of main motor to control, the machine adopts stepless frequency conversion timing.
Simple structure, block bottleneck structure, and can make changes according to bottle type.
PLC control, fault on line display, like bottle block, cap lack etc.
The key parts of the machine and electric elements are all imported products.
Technical Description
Model | RGZ18-12-18-6 | RGZ24-18-24-8 | RGZ32-24-32-12 | RGZ40-32-40-12 |
Production Capacity 500ml(B/h) | 5000 | 8000 | 12000 | 15000 |
Suitable Bottle Types(mm) | Round or square square shaped bottle | |||
PET Bottle Dimension(mm) | Bottle diameter:50-110 Height :150-330mm | |||
Cap Type | plastic screw Cap | |||
Filling Precision | within ±5mm | |||
Filling Pressure(Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 |
Rinsing Precision(Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 |
Installed Capacity(L) | 4.3 | 6.5 | 10 | 12 |
Overall Size(mm) (L×W×H) | 3170×2070×2400 | 4070×2350×2400 | 5100×2600×2400 | 6250×3050×2400 |
Total Weight(kg) | 4000 | 5000 | 6000 | 7000 |
