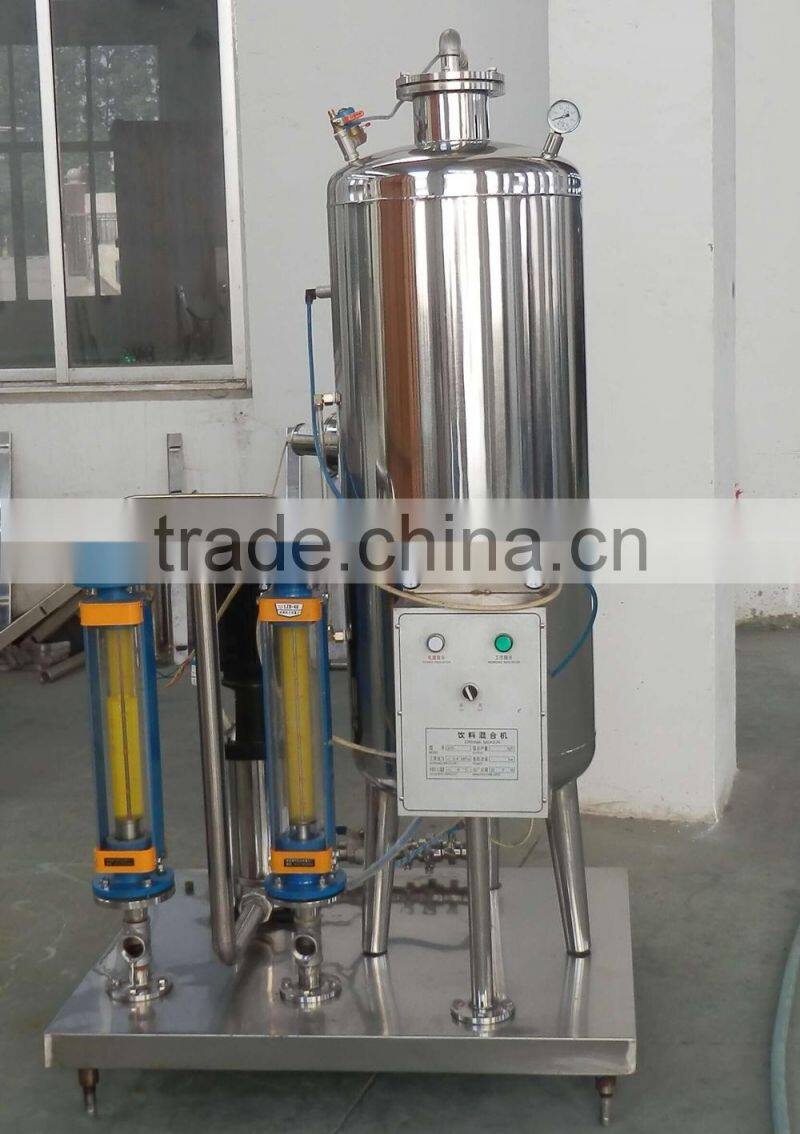

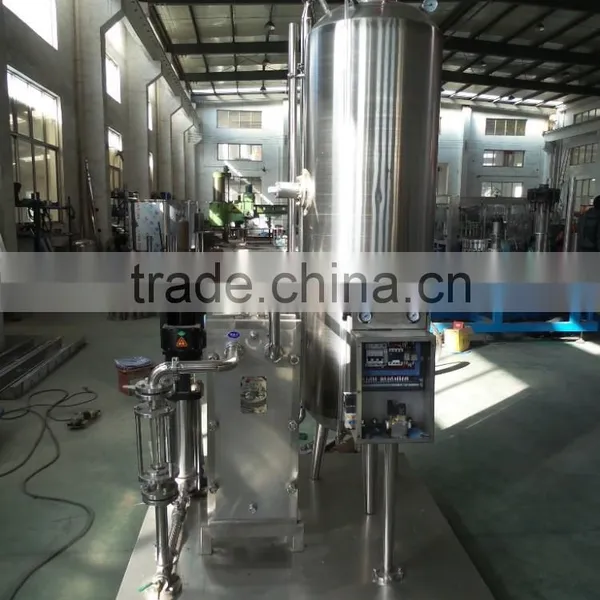

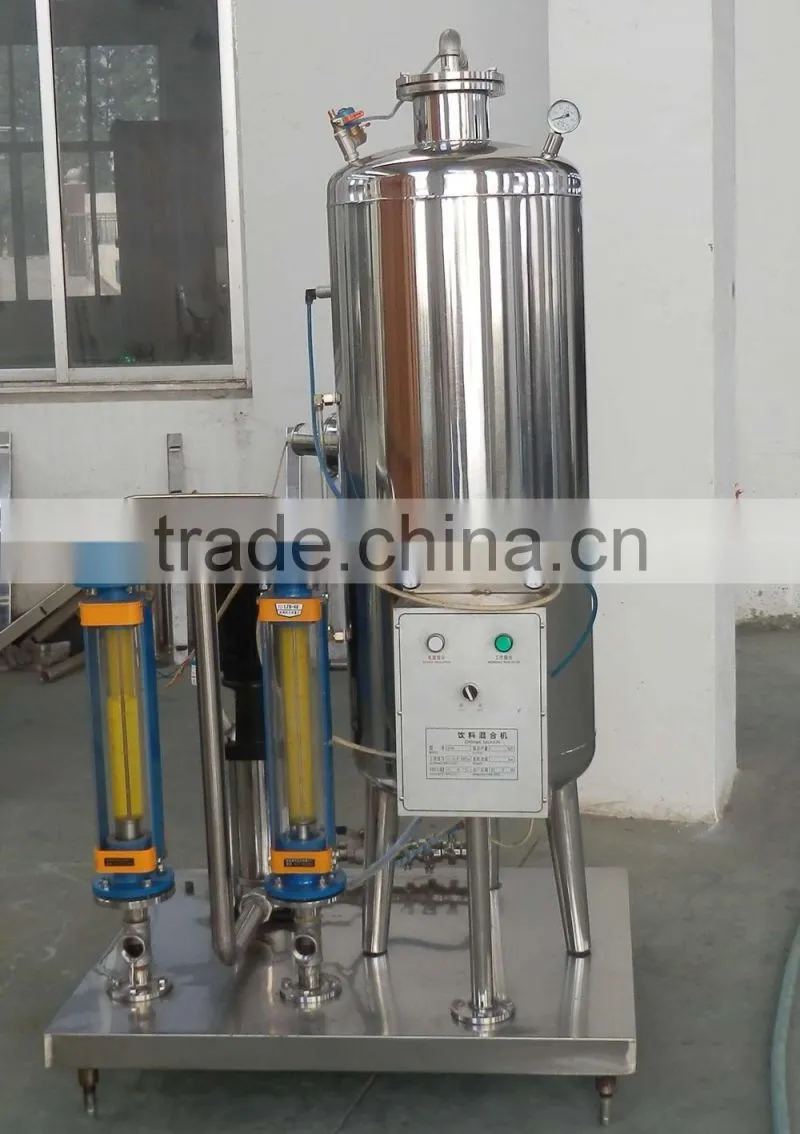

The machine is mainly used for a variety of carbonated beverage (water, syrup, carbon dioxide) and rate of carbonation mixture, such as, lemon, Coke, Sprite, juice, carbonated beverage is the main production equipment, complete sets of equipment (especially high , the grade of gas the key beverage production equipment).
Technical parameters
QGF Series Filling machine Specification
| Model(QHS) | 3000B | 5000B | 7000B | 10000B | 15000B |
| Production Capacity (kg/h) | 3000kg/h | 5000kg/h | 7000kg/h | 10000kg/h | 15000kg/h |
| Water-sugar mixing rate | 3--6 times | ||||
| CO2 content | 3.8times | ||||
| Mixing precision | ≤1.5% | ||||
| Pressure of compressed air (Mpa) | 0.6-1 | ||||
| Consumption of compressed air | 5m3/h | ||||
| Pressure of CO2 (Mpa) | 0.8--1 | ||||
| CO2 consumption (m3/h ) | 2 | 2.5 | 3 | 5 | 5 |
| Pressure of purified water(Mpa) | 0.4-0.8Mpa | 0.4-0.8Mpa | 0.4-0.8Mpa | 0.4-0.8Mpa | 0.4-0.8Mpa |
| Mixing temperature (°C) | < 4°C | < 4°C | < 4°C | < 4°C | < 4°C |
| Heat exchange area (m2) | 8 | 8 | 10 | 12 | 12 |
| Power consumption (kw) | 4.45kw | 5.9kw | 7.2kw | 10.2kw | 13.6kw |
| Overall Dimension (mm) | 2900×1500×2610 | 3000×2000×3000 | 3000×2000×3000 | 3500×2300×3200 | 3800×2600×3200 |
Service:
1.One year warranty.
2.Spare parts free during warranty period
3.Charge for accessories cost beyond the warranty period
4.Flight tickets, accommodation,and $70 per day for mechanical commissioning operator.
