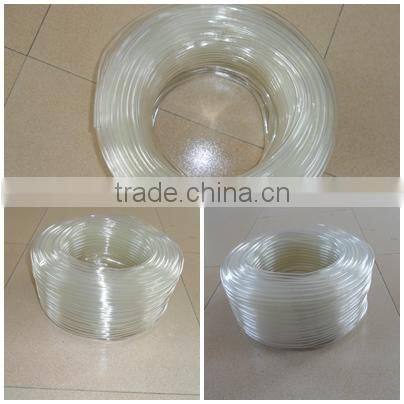

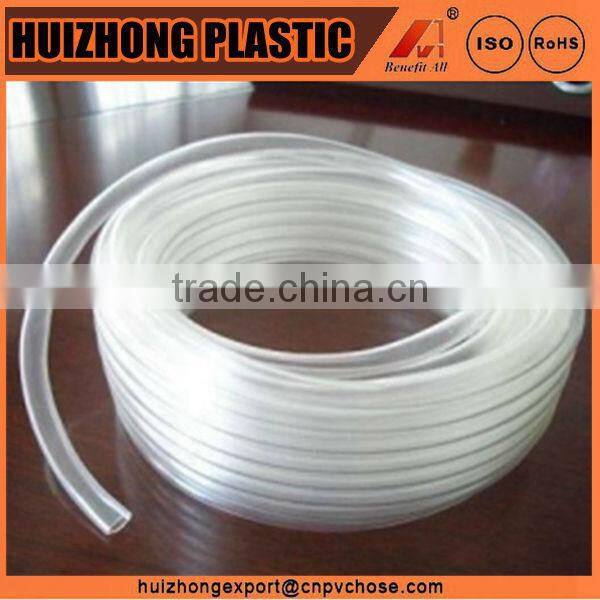

clear pvc transparent hose pipe
Applications:
clear pvc transparent hose pipe is used for conveying water,oil ,gas under normal working conditions in the factory ,farm ,ship,building and family.
Characteristics:
It is flexbile,durable ,non-toxic,without odor,and resistant to high pressure and erosion.
Working temperature:-5°C~65°C
Specifications of PVC Liquid Hose
British Measurement | Mertic Measurement | Length | W.P. | B.P | Weight | Volume | |
I.D. | O.D. | ||||||
inch | mm | mm | m | Mpa | Mpa | kg/roll | m3 |
5/64 | 2 | 4 | 100 | 1.20 | |||
1/8 | 3 | 5 | 100 | 1.7 | |||
5/32 | 4 | 6 | 100 | 2.2 | |||
1/5 | 5 | 9 | 100 | 5.60 | 0.011 | ||
1/4 | 6 | 8 | 100 | 0.20 | 1.0 | 3.00 | 0.016 |
5/16 | 8 | 10 | 100 | 0.20 | 0.9 | 3.80 | 0.018 |
3/8 | 10 | 12 | 100 | 0.20 | 0.9 | 4.70 | 0.019 |
1/2 | 12 | 15 | 50 | 0.15 | 0.8 | 4.30 | 0.021 |
5/8 | 15 | 20 | 50 | 0.15 | 0.8 | 9.00 | 0.023 |
3/4 | 19 | 22 | 50 | 0.15 | 0.8 | 6.55 | 0.047 |
1 | 25 | 30 | 50 | 0.15 | 0.8 | 14.50 | 0.070 |
1-1/4 | 32 | 38 | 50 | 0.15 | 0.8 | 22.40 | 0.068 |
1-1/2 | 38 | 44 | 40 | 0.15 | 0.7 | 20.88 | 0.122 |
2 | 50 | 58 | 40 | 0.15 | 0.7 | 36.64 | 0.226 |
Note: data in the table is only for reference, when using the wire specifications, pitch are changed, the corresponding wall thickness or meters heavy will have corresponding change. The company can be adjusted according to the customer request.
