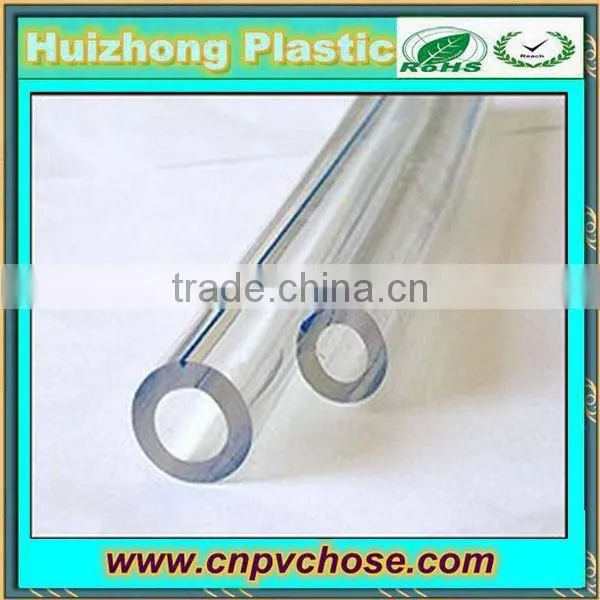

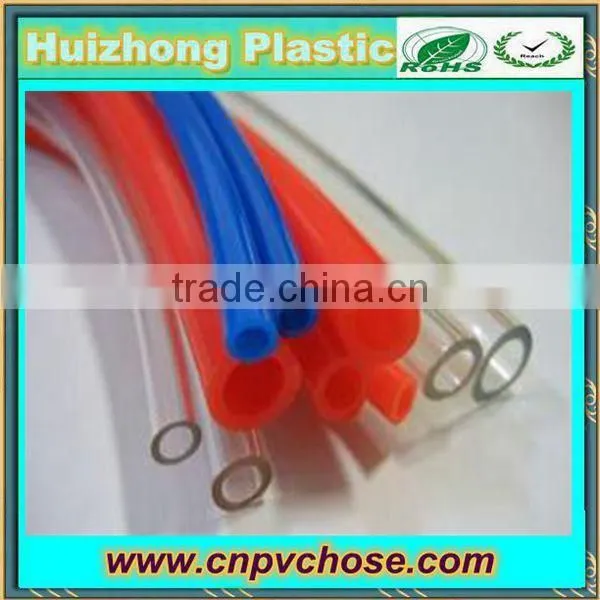

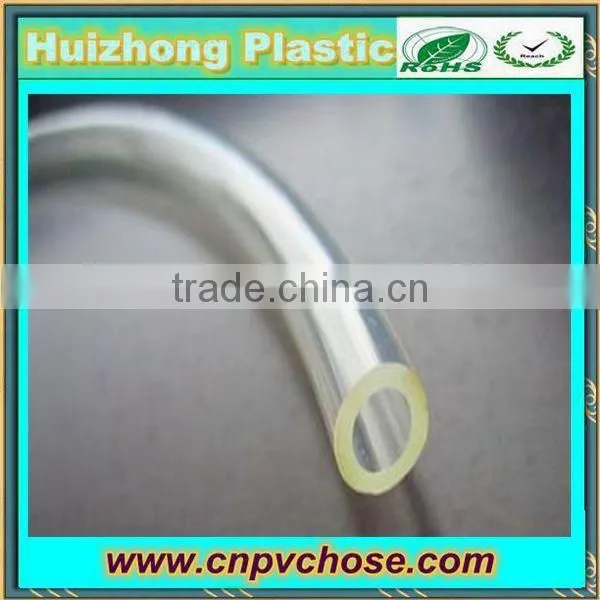

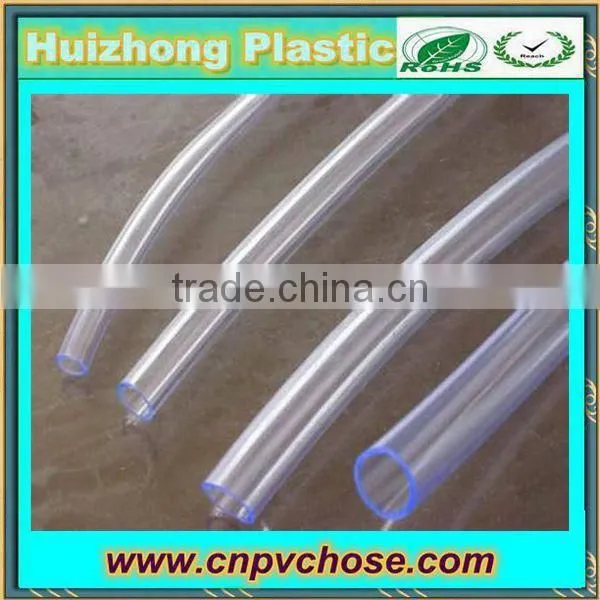

The transparent pvc clear flexible hose pipe
Applications:
The pvc Liquid hose is used for conveying water,oil ,gas under normal working conditions in the factory ,farm ,ship,building and family.
Characteristics:
It is flexbile,durable ,non-toxic,without odor,and resistant to high pressure and erosion.
Working temperature:-5°C~65°C
Specifications:
British Measurement | Mertic Measurement | Length | W.P. | B.P | Weight | Volume | |
I.D. | O.D. | ||||||
inch | mm | mm | m | Mpa | Mpa | kg/roll | m3 |
5/64 | 2 | 4 | 100 | 1.20 | |||
1/8 | 3 | 5 | 100 | 1.7 | |||
5/32 | 4 | 6 | 100 | 2.2 | |||
1/5 | 5 | 9 | 100 | 5.60 | 0.011 | ||
1/4 | 6 | 8 | 100 | 0.20 | 1.0 | 3.00 | 0.016 |
5/16 | 8 | 10 | 100 | 0.20 | 0.9 | 3.80 | 0.018 |
3/8 | 10 | 12 | 100 | 0.20 | 0.9 | 4.70 | 0.019 |
1/2 | 12 | 15 | 50 | 0.15 | 0.8 | 4.30 | 0.021 |
5/8 | 15 | 20 | 50 | 0.15 | 0.8 | 9.00 | 0.023 |
3/4 | 19 | 22 | 50 | 0.15 | 0.8 | 6.55 | 0.047 |
1 | 25 | 30 | 50 | 0.15 | 0.8 | 14.50 | 0.070 |
1-1/4 | 32 | 38 | 50 | 0.15 | 0.8 | 22.40 | 0.068 |
1-1/2 | 38 | 44 | 40 | 0.15 | 0.7 | 20.88 | 0.122 |
2 | 50 | 58 | 40 | 0.15 | 0.7 | 36.64 | 0.226 |
Note: data in the table is only for reference, when using the wire specifications, pitch are changed, the corresponding wall thickness or meters heavy will have corresponding change. The company can be adjusted according to the customer request.
Raw material:
Poduction line:
Pakcing:
Transportation:
Exhibition room:
Certificates:
