Spiral pvc suction hose pipe Manufacturer
- 30000 Metric Ton / Metric Tons per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | huizhong | Model Number: | 6-200mm,etc |
Material: | PVC | Specification: | 6-200mm,etc | Length: | 20,30,40,50,100,etc |
Thickness: | 3mm-10mm,etc | Standard: | ISO9001 |
Product Description
Specifications
1.manufacturer,factory, OEM, SGS, ISO90012.Non-toxic, ultraviolet light
3.Good adaptability to hard weather,

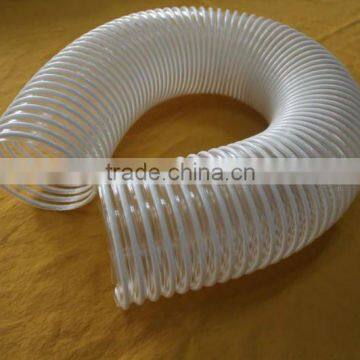

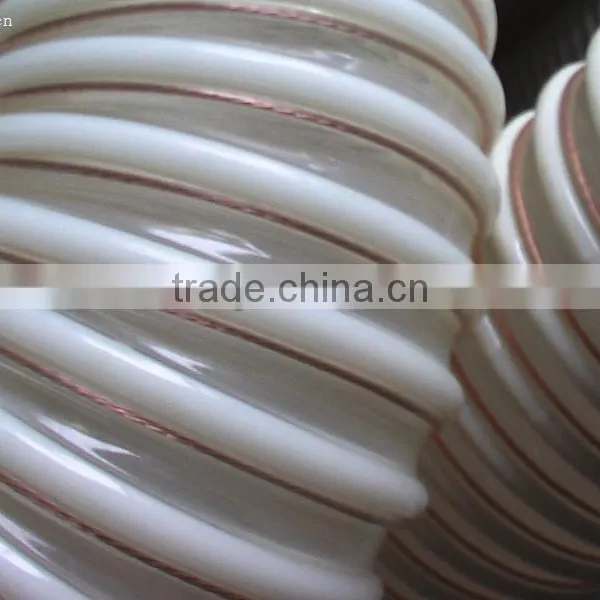

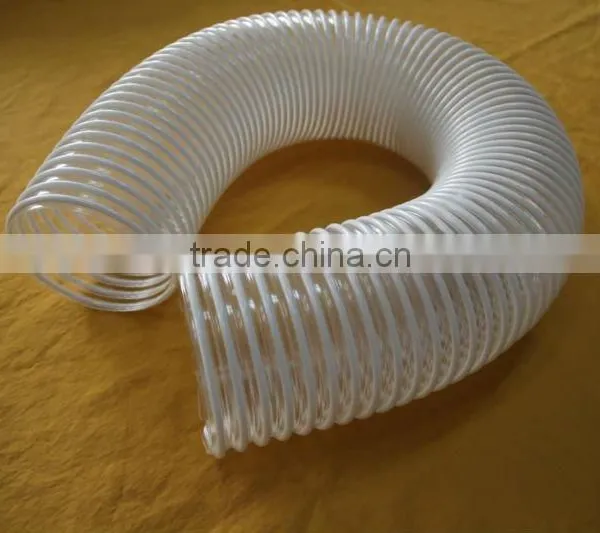

Spiral pvc suction hose pipe Manufacturer
Applications:
The pvc screw suction hose is widely used for drawing and conveying water,oil and powder in fabrications,agriculture,engineering,food stuffs and sanitation lines.
Characteristics:
1,This pvc suction hose ,is light ,transparent ,with small bending radius .
2,The pvc suction hose has good adaptability to hard weather conditions and minus pressure,flexible,durable,non-toxic,anti-erosion.
3,The 3 inch pvc suction hose can keep its sharp under high pressure or minus pressure conditions. 3 inch pvc hose is widely used.
Working temperature:
-5°C~65°C
Specifications of PVC Suction Hose:
British measurement | Metric measurement | W.P. | B.P. | Weight | Volume | ||
I.D. | O.D. | Length | |||||
inch | mm | m | Mpa | Mpa | kg/roll | m3 | |
5/16 | 8 | 14 | 100 | 0.7 | 1.8 | 18.5 | 0.04 |
3/8 | 9 | 15 | 19 | 0.042 | |||
1/2 | 12 | 18 | 0.5 | 1.7 | 22.5 | 0.055 | |
5/8 | 15 | 22 | 30.5 | 0.090 | |||
3/4 | 19 | 26 | 50 | 0.4 | 1.4 | 18 | 0.070 |
1 | 25 | 33 | 27.5 | 0.10 | |||
1-1/4 | 32 | 41 | 40 | 0.3 | 1.1 | 31 | 0.150 |
1-1/2 | 38 | 48 | 42.5 | 0.20 | |||
1-3/4 | 45 | 55 | 54.5 | 0.25 | |||
2 | 50 | 62 | 64.5 | 0.30 | |||
2-1/4 | 57 | 68 | 30 | 54.5 | 0.250 | ||
2-1/2 | 64 | 80 | 20 | 56.5 | 0.250 | ||
3 | 75 | 92 | 0.2 | 0.7 | 70.5 | 0.350 | |
3-1/2 | 90 | 108 | 84.5 | 0.450 | |||
4 | 102 | 120 | 96.5 | 0.60 | |||
5 | 125 | 145 | 10 | 0.15 | 0.5 | 67.5 | 0.80 |
6 | 152 | 172 | 10 | 0.15 |
The special demand about I.D. or O.D. can change According to the requirements of our customers.
Weifang Huizhong Plastic Co., Ltd. Although established in 2006, our company develops rapidly and steadily. Our company is renowned for its design and fine quality, thus enabling us have a good reputation in the world. Our products are exported to many countries and areas like Europe, the South America and the Middle East.
Q: What kinds of hose do you produce?
A: We mainly produce pvc hoses, such as pvc braided hose, pvc steel wire hoses, suction hose, lay flat hose,high pressure spray hose, air hose, garden hose, sanitary hose...
Q: Do your hoses come with a quick connector?
A: Sorry, we are professional pvc hose manufacturer in China. Our hoses seldom come with a quick connector. But if you need quick connector, we can help you find the supplier.
Q: Can I customized this kind of products from your factory?
A: Yes, you can. OEM or ODM is welcome.
Q: Can you give me a discount?
A: Sure. You will get our factory price . Our policy is that bigger order quantity, the lower quotation will be. So we will give you a discount according to the quantity.
Q: Can you send us a sample?
A: Certainly, we can send free sampleto you by EMS or DHL. But you have to pay the express fee.
Q: How to get your catalogue?
A: Email us or contact service online now. You also can add my skype laura.qu5
