Specifications
pvc spiral/helix/corrugated suction hosefull fresh material
1300D polyester filament
standard size, sample is free.

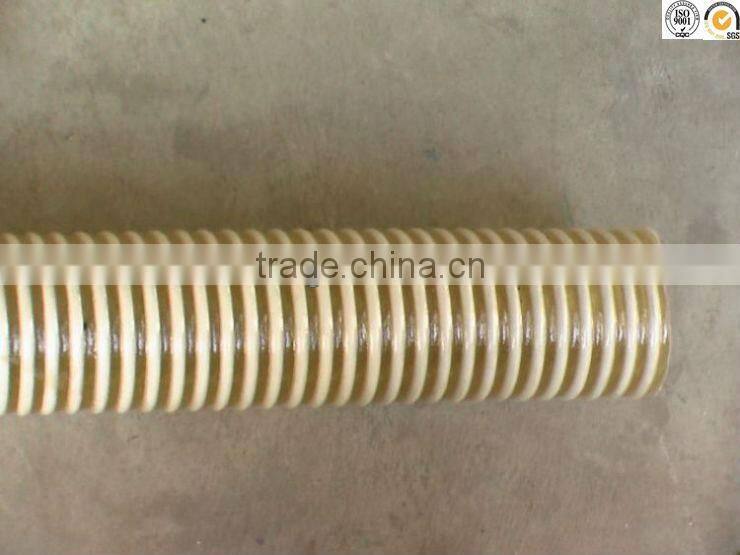

pvc spiral/helix/corrugated suction hose
Applications:
1) Used for: drawing and conveying water,oil,air,powder.
2) Used in: factory,agriculture,engineering,foodstuffs and sanitation lines.
3) It is the ideal alternative of rubber hose and metal pipe.
Characteristics:
1) This hose is light,with small bending radius.
2) It has good adaptability to hard weather conditions and minus pressure.
Specifications:
|
|
Metric Measurement | W.P. | B.P. |
Packing Measurement |
| ||
At 23 | ||||||||
Ltem No . | Inch | I.D.mm | O.D.mm | m/roll | MPa | MPa | D×H mm | m3 |
Hz-16×2.5 | 5/8 | 16 | 21 | 50 | 0.1-0.4 | 1.0 | 600×230 | 0.083 |
HZ-19×3 | 3/4 | 19 | 25 | 01.-0.4 | 1.0 | 610×160 | 0.60 | |
HZ-25×3.5 | 1 | 25 | 32 | -0.1~0.6 | 2.0 | 660×200 | 0.087 | |
HZ-32×4 | 1-1/4 | 32 | 40 | -0.1~0.7 | 2.1 | 320×780 | 0.08 | |
HZ-38×4 | 1-1/2 | 38 | 46 | -0.1~0.6 | 1.8 | 730×240 | 0.128 | |
HZ-51×4.5 | 2 | 51 | 60 | -0.1~0.6 | 1.8 | 900×320 | 0.26 | |
HZ-64×4.5 | 2-1/2 | 64 | 73 | 20 | -0.1~0.5 | 1.5 | 820×300 | 0.202 |
HZ-76×5 | 3 | 76 | 86 | -0.1~0.4 | 1.2 | 910×350 | 0.29 | |
HZ-102×5.5 | 4 | 102 | 113 | -0.1~0.3 | 1.0 | 1100×450 | 0.544 | |
