Home > Products > pvc suction hose > PVC suction & delivery hose
PVC suction & delivery hose
- 10000 Metric Ton / Metric Tons per Month
- Qingdao
- T/T
You May Like
Product Details
Place of Origin | Shandong, China | Brand Name | Huizhong | |
Model Number | HZ-S1 | Material | Other, PVC, Plastic | |
Specification | 5/8'' to 6'' | Length | 30m, or as required | |
Thickness | according to the size | Standard | Reach and Rohs |
Product Description

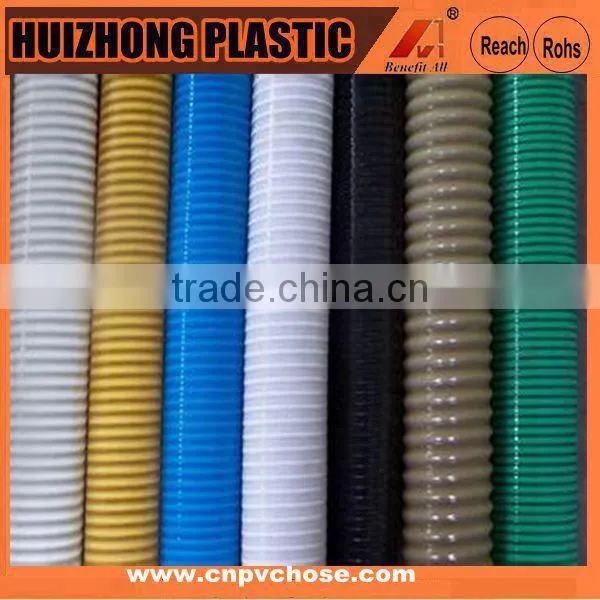

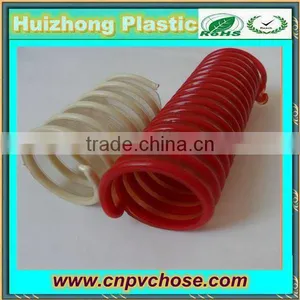

PVC suction & delivery hose
Introduction:
We are hose professional manufactuer in China, Producing water hose, air hose, gas hose, steel wire hose, suction hose pipe, wilding hose, pvc braided water hose, pvc braided air hose, pvc spray pipe, pvc high strength spray hose, pvc reinforced hose, pvc lay flat hose, pvc oil hose, pvc suction hose, pvc welding hose, pvc spray hose, pvc pressure pipe for irrigation, Water delivery hose, water suction hose,oil delivery hose, dust delivery hose, benefit all fields hose pipe
Applications:
The pvc screw suction hose is widely used for drawing and conveying water,oil and powder in fabrications,agriculture,engineering,food stuffs and sanitation lines.
Characteristics:
1,This pvc suction hose ,with steel wire screwing inlaid in the hose,is light ,transparent ,with small bending radius .
2,The pvc suction hose has good adaptability to hard weather conditions and minus pressure,flexible,durable,non-toxic,anti-erosion.
3,The pvc suction hose can keep its sharp under high pressure or minus pressure conditions.
Working temperature:
-5°C~65°C Skype laura.qu5
Specifications:
British measurement | Metric measurement | W.P. | B.P. | Weight | Volume | ||
I.D. | O.D. | Length | |||||
inch | mm | m | Mpa | Mpa | kg/roll | m3 | |
5/16 | 8 | 14 | 100 | 0.7 | 1.8 | 18.5 | 0.04 |
3/8 | 9 | 15 | 19 | 0.042 | |||
1/2 | 12 | 18 | 0.5 | 1.7 | 22.5 | 0.055 | |
5/8 | 15 | 22 | 30.5 | 0.090 | |||
3/4 | 19 | 26 | 50 | 0.4 | 1.4 | 18 | 0.070 |
1 | 25 | 33 | 27.5 | 0.10 | |||
1-1/4 | 32 | 41 | 40 | 0.3 | 1.1 | 31 | 0.150 |
1-1/2 | 38 | 48 | 42.5 | 0.20 | |||
1-3/4 | 45 | 55 | 54.5 | 0.25 | |||
2 | 50 | 62 | 64.5 | 0.30 | |||
2-1/4 | 57 | 68 | 30 | 54.5 | 0.250 | ||
2-1/2 | 64 | 80 | 20 | 56.5 | 0.250 | ||
3 | 75 | 92 | 0.2 | 0.7 | 70.5 | 0.350 | |
3-1/2 | 90 | 108 | 84.5 | 0.450 | |||
4 | 102 | 120 | 96.5 | 0.60 | |||
5 | 125 | 145 | 10 | 0.15 | 0.5 | 67.5 | 0.80 |
6 | 152 | 172 | 10 | 0.15 |
Note: data in the table is only for reference, when using the wire specifications, pitch are changed, the corresponding wall thickness or meters heavy will have corresponding change. The company can be adjusted according to the customer request
The special demand about I.D. or O.D. can change According to the requirements of our customers
......
Q: What is the main business of your company?
A: Our company is positioned in the market of PVC steel wire hose. We specialize in plastic hoses
Q: How many workers do you have?
A: We have about 100 workers, including 6 export sellers and 2QC.
Q: Do you make private label?
A: Yes, we provide this service
Q: Do you offer free sample?
A: Of course, if the sample is common style, we provide free sample without shipment.
If the sample you want is uncommon style, you have to pay for making samples.
Samples charge will refund after placed order.
