Specifications
Dual Voltage Amp Meter1 Dimensions:48 x 29 x 22 mm
2 color:black

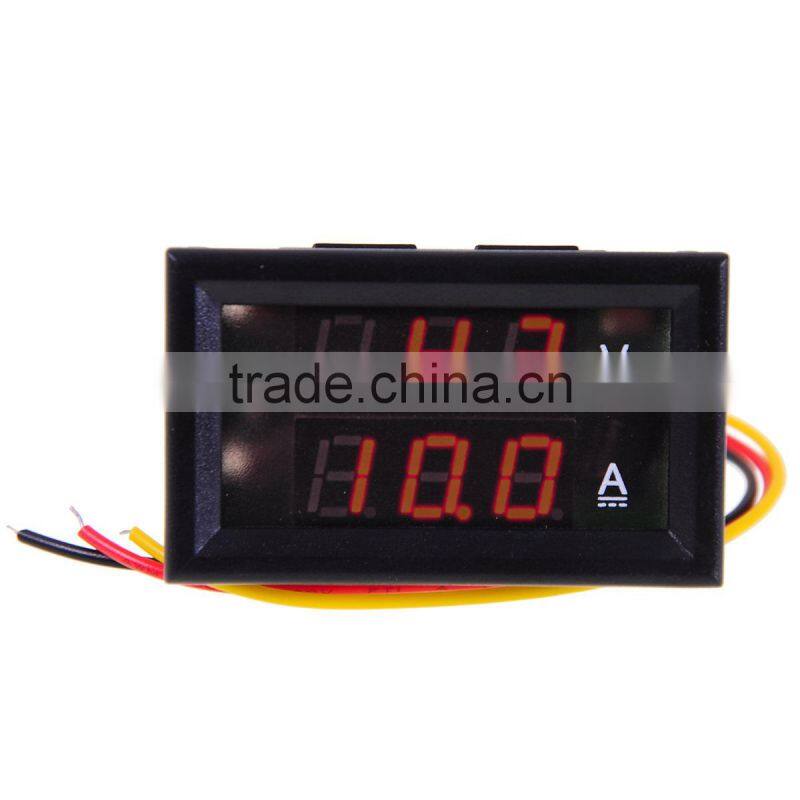

DC 4.5V-30V 50A Red Dual Panel LED Digital Voltmeter Ammeter Voltage with Shunt
Description:
Red display DC voltage automatically, can be clear at a glance. It is widely used in equipment and electromechanical device. Cars, boat, planes etc. for measuring current, voltage. Monitoring PC & electrical system. It's small size and easy installation. This panel is a non-oem, generic product. All trademarks and copyrights are the property of their respective owners. Accessory, only products listed are included.
Specinfication:
Supply voltage: 4.5-30V (wide range).
Test voltage: 4.5-30V
Minimum resolution: 0.1V
Test current range: 50A
External shunt include.
Operating Current:<20mA
Display: 0.28" LED, red color

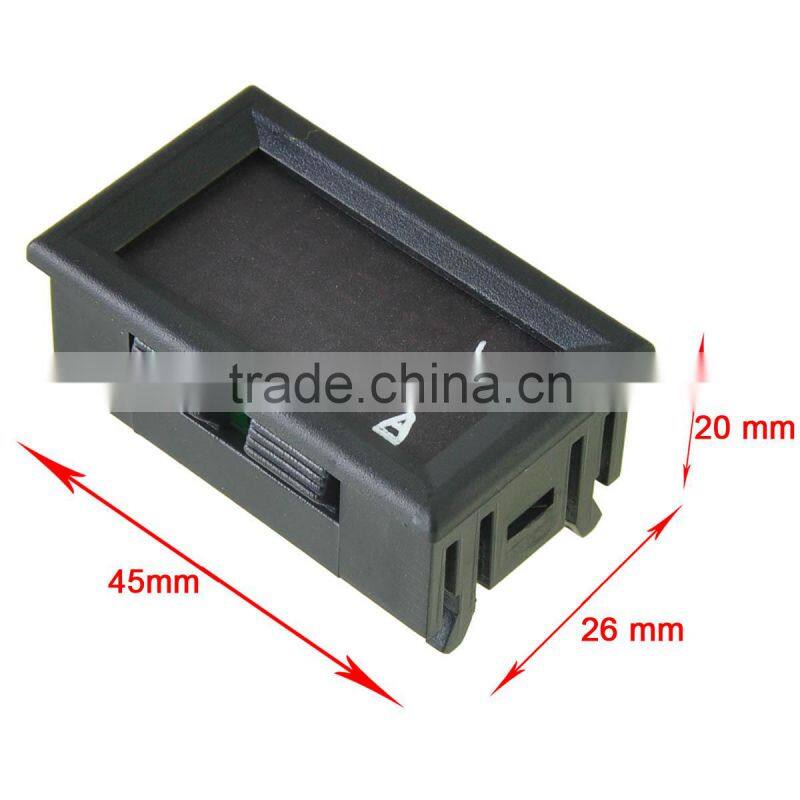

Dimensions: 48 x 29 x 22 mm
Mounting cutout: 45.5 x 25.5 mm
Measurement rate: 500mS/ times
Measurement accuracy: 1%
Thin black line: Header supply ground
The Thin Red Line: Header powered regular (Note, thin red and black line between the voltage can not exceed 30V)

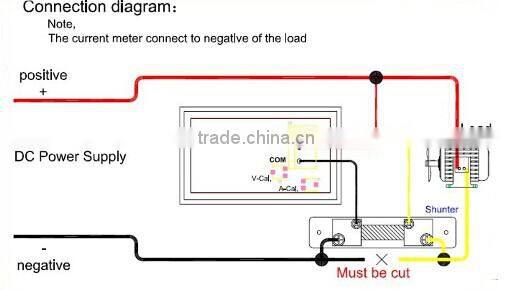

Yellow lines: current input terminal; header uses of design, the measuring end of the ground and the ground of the power supply side is the same, it is only then measured the back of the device, as shown in the following figure, the wrong will burn (such as single voltmeter, it is recommended that the yellow line with black lines together, to prevent outside interference cause ammeter digital flashing)

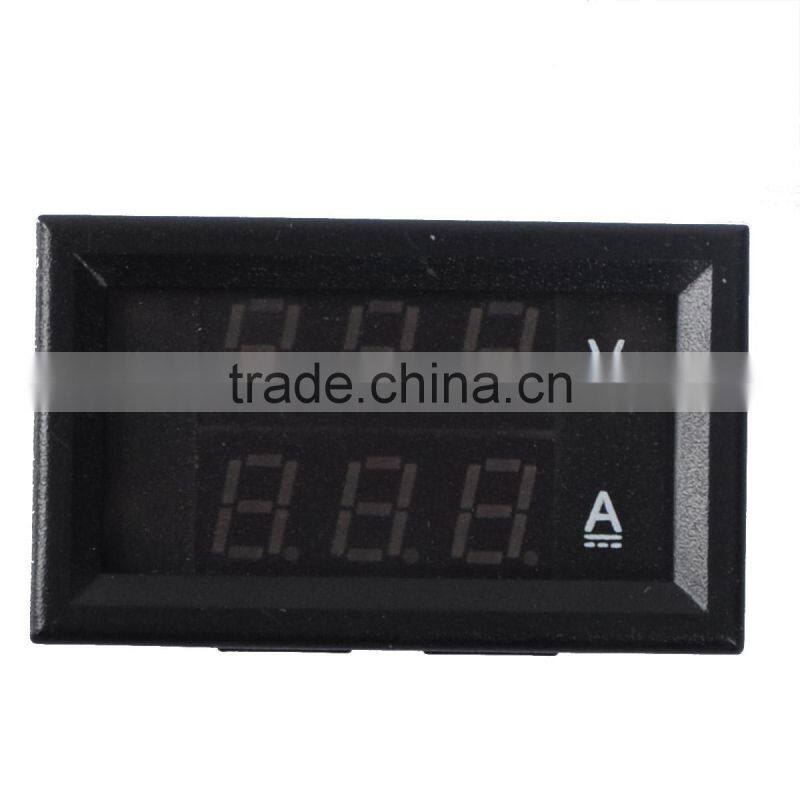

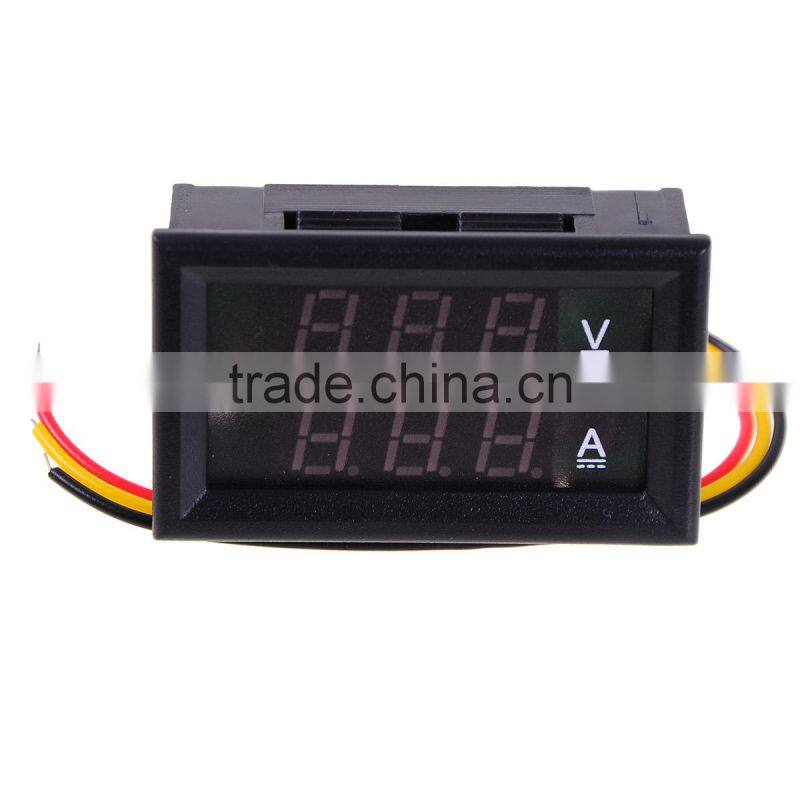

The small size of the red dual instrument. Voltage and current can be displayed on the same screen at the same time.
This instrument test voltage, current, power supply is taken from the test loop. No additional power supply.
The the instrument test voltage supply range: DC4.5 - 30V,The reverse does not burn.
Note: The maximum input voltage can not exceed 30V, otherwise there is the danger of burned

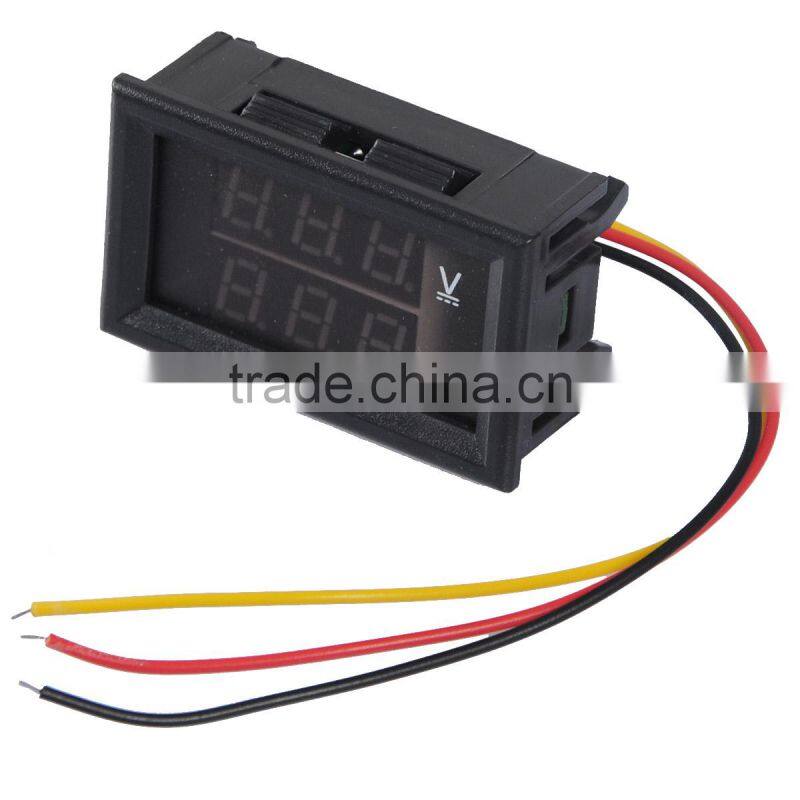

The instrument is equipped with three wiring. Convenient access to car/ battery car/ motorcycle car line, Used to monitor the battery voltage, Grasp the battery voltage state, can also be used for other products, the use of Voltage/ current measurement.
Extra working conditions:
The minimum Operating voltage: +4.5 V
Maximum working voltage: +30 V
Operating temperature: -10 to +65
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
If you are interested in our product,pls don't hesitate to contact me.
