DC 12V 5.5L/min 80W Micro Diaphragm High Pressure Automatic Switch Mini Water Pump
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
DC24V 6L/min 80W High Pressure Micro Automatic Reflux Valve Water Pump
-
Ansi Hi Vis Red Yellow Conspicuity Vest With Pvc Reflective Taps Road and Working Safety Warning Sleevel
-
Wholesale Vest Working Clothes With Pvc Reflective Taps Road Safety Warning Sleevel
-
Hot Sale Hi Vis Red Conspicuity Vest Warning Safety Working Clothes With Pvc Reflective Taps Road Safety Warning Sleevel
-
New Design DN15 1/2" Size Plastic Adjustable Float Valve Switch for Water Tank Humidifiers
-
New Design Mini DN15 1/2" Size Plastic Adjustable Float Valve Switch fr Water Tower
Product Details
Place of Origin | Guangdong, China | Brand Name | Okeler | |
Model Number | 0142YA-12-80 | Theory | Mixed Flow Pump | |
Structure | Diaphragm Pump | Usage | Water | |
Power | Other, Electric, 80W | Standard or Nonstandard | Standard | |
Fuel | Other, Electricity | Pressure | High Pressure | |
Application | Other, sprayer , cleaning , car washing , pumping |
Product Description
Features:
Product name | electric home 12v dc mini water pump or 24v |
Model number | 0142YA-12-80 |
Voltage | DC 12v |
Power | 80w |
Flow rate | 5.5L/M |
Max pressure | 130PSI (0.9 Mpa ) |
Working pressure | 80PSI (0.55Mpa) |
Allowed medium temperature | 0-60 centigrade |
Suction distance | 1.5m |
Lift | 55m |
Range | 8m |
Color | black |
Protective valve type | Automatic switch type |
Specifications | (approx.) 16.5 x 9.5 |
Important note:
This is a product with a pressure switch. It will be automatically cut off the power supply and the motor stops running when the water outlet is turned off. Once the water outlet is turned on, the motor starts running again. This type of product can be applied to occasions, which have demand for energy conservation and frequent switching, such as machine washing, feeding water to a solar energy system, and remote automatic controlling system of conveying water and suspending water supply, etc.
Other Types :

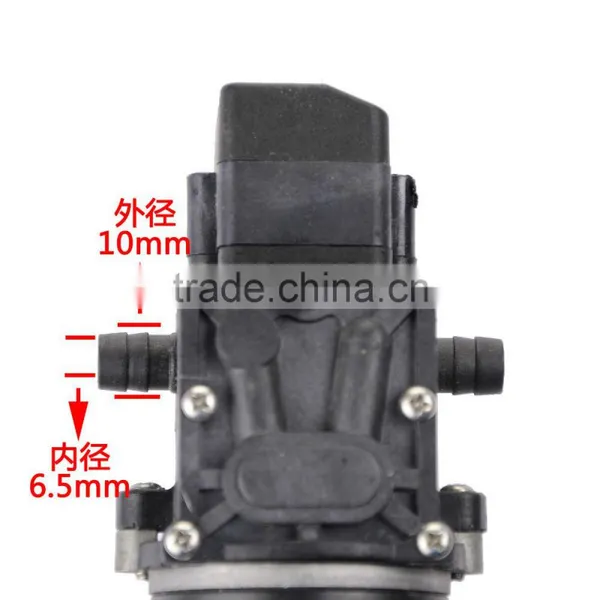

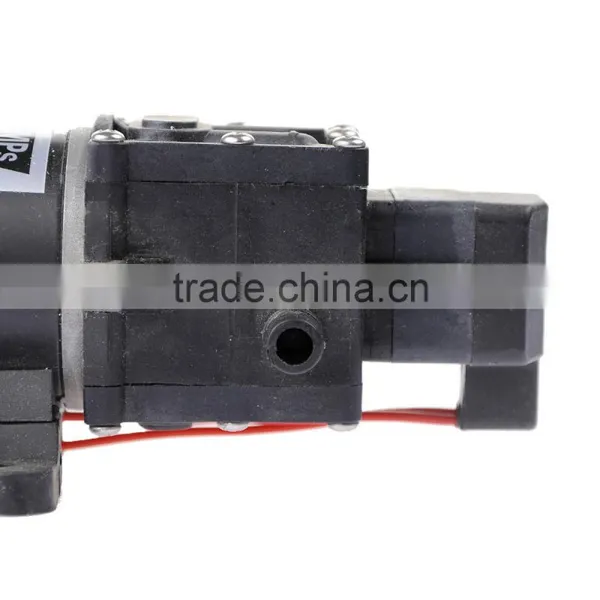

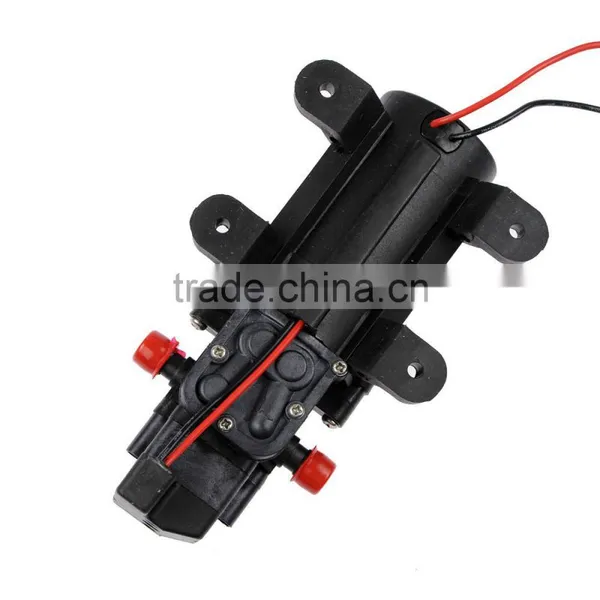

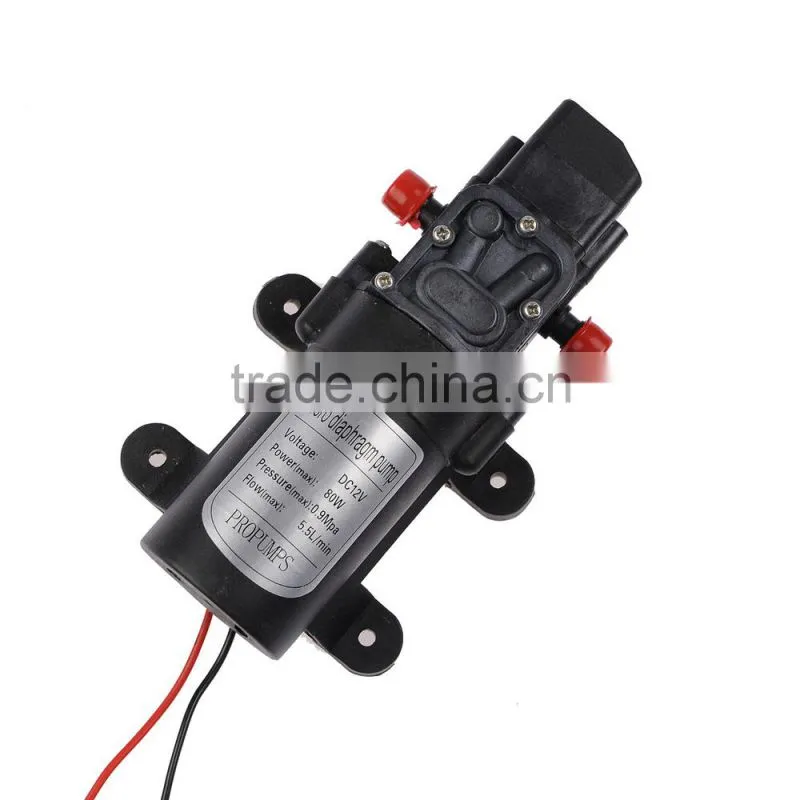

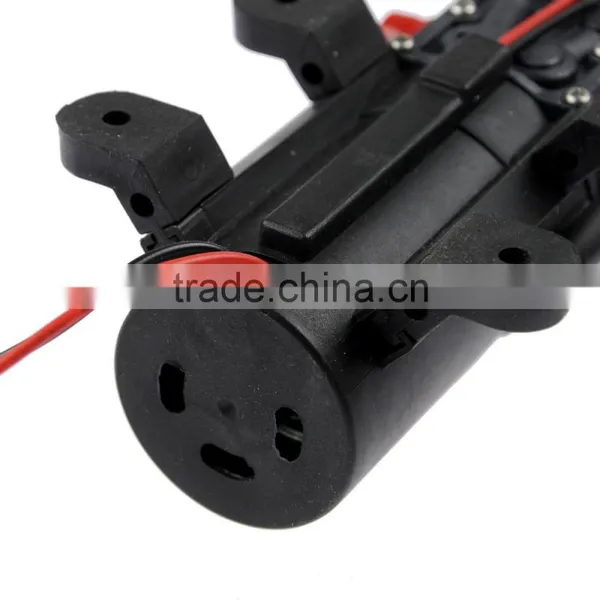

Pictures :
Packaging:
Netural opp bag as the inner package; Outer carton: 60CM*49CM*38CM.
- Payment: T/T, Western Union, MoneyGram, PayPal; 30% deposits; 70% balance before delivery.
- MOQ: 1pcs
- Warranty : 1 year
- Package Informations: The volume of the box is 60cmx49cmx38cm
Q1: What is the warranty of Okeler's dc water pump?
A1: You have 1 year warranty for unartificial damage.
Q2:What is the difference between automatic switch type and return valve type?
A2: Automatic switch type
- When you turn off water outlet, it will cut off the power and stop automatically.
- When you turn on water outlet, it will connect the power and run automatically.
- This type has strict requirements on the size of water gun outlet( advice>= dia 1.5mm / 1.8mm), otherwise it can't work properly or even been damaged.
Return valve type
- This type have no strict requirement on the size of water outlet.
- When the water outlet hole is too small or blocked, the motor won't stop running. The return valve will open and the water will cycle in the pump.
- Its working pressure can be controlled by screwing the little screw in front of the pump.
Q3:Is there cheap shipping cost to import to our country?
A3:1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Q4:Can we get support if we have our own market position?
A4: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you, to find the best solution for you.
Q5: Where do the other buyers use it?
A5: Agriculture / Yacht / RV / Caravan pressurized water system
Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
Food beverage filling & liquid transfer
Any other pressurization system
