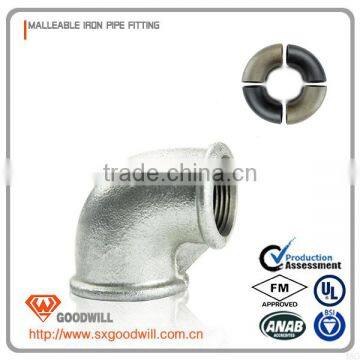

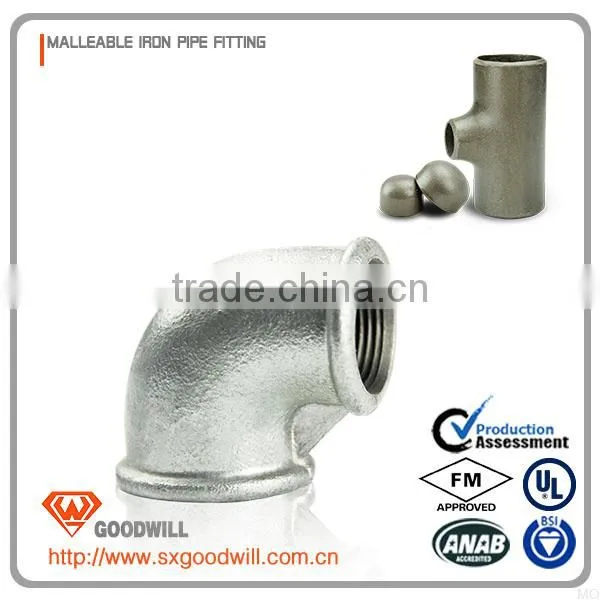

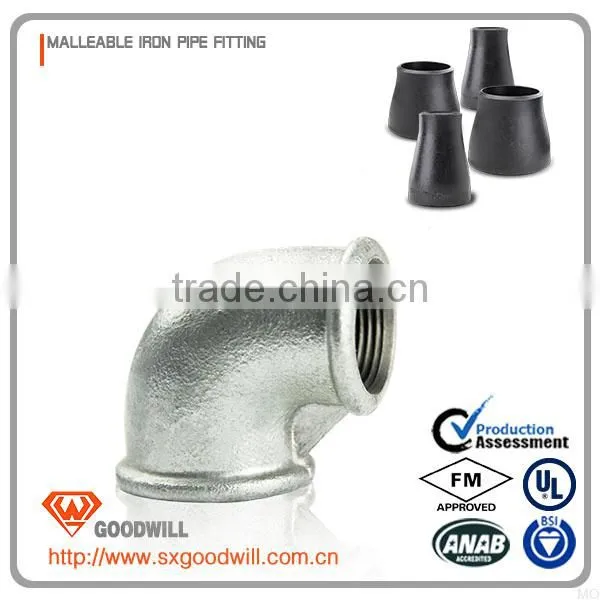

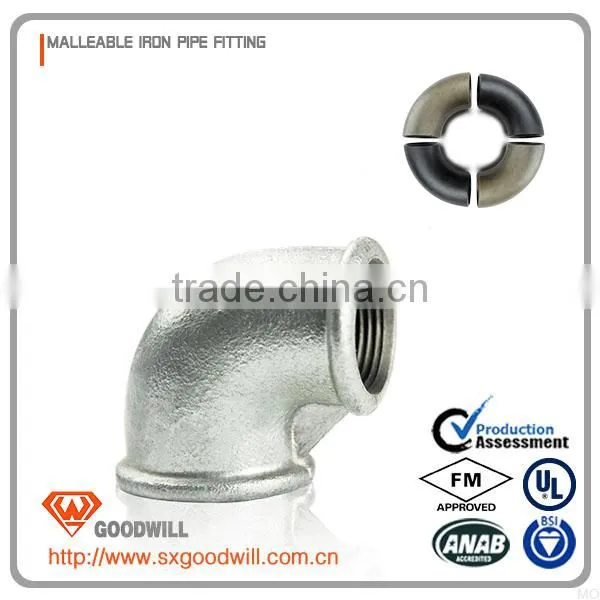

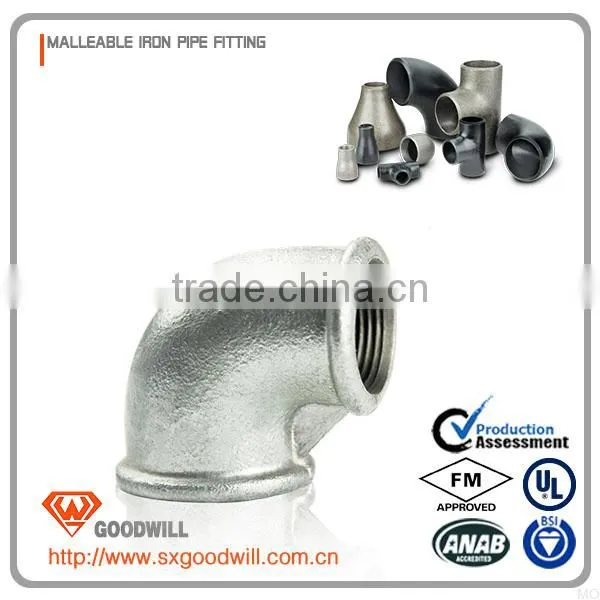

Galvanized Malleable Iron Pipes Fittings 90 Degree Elbow

US$ 0.2 - 23 MOQ: 1 Ton

Key Specifications

Material:

Other, Malleable Iron

Technics:

Casting

Type:

Elbow

Shanxi Goodwill Industrial & Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XINGANG

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Malleable Iron

Technics Casting

Type Elbow

Place of Origin Shanxi, China

Model Number 90

Brand Name HIG

Connection Female

Shape Equal

Head Code Other, round

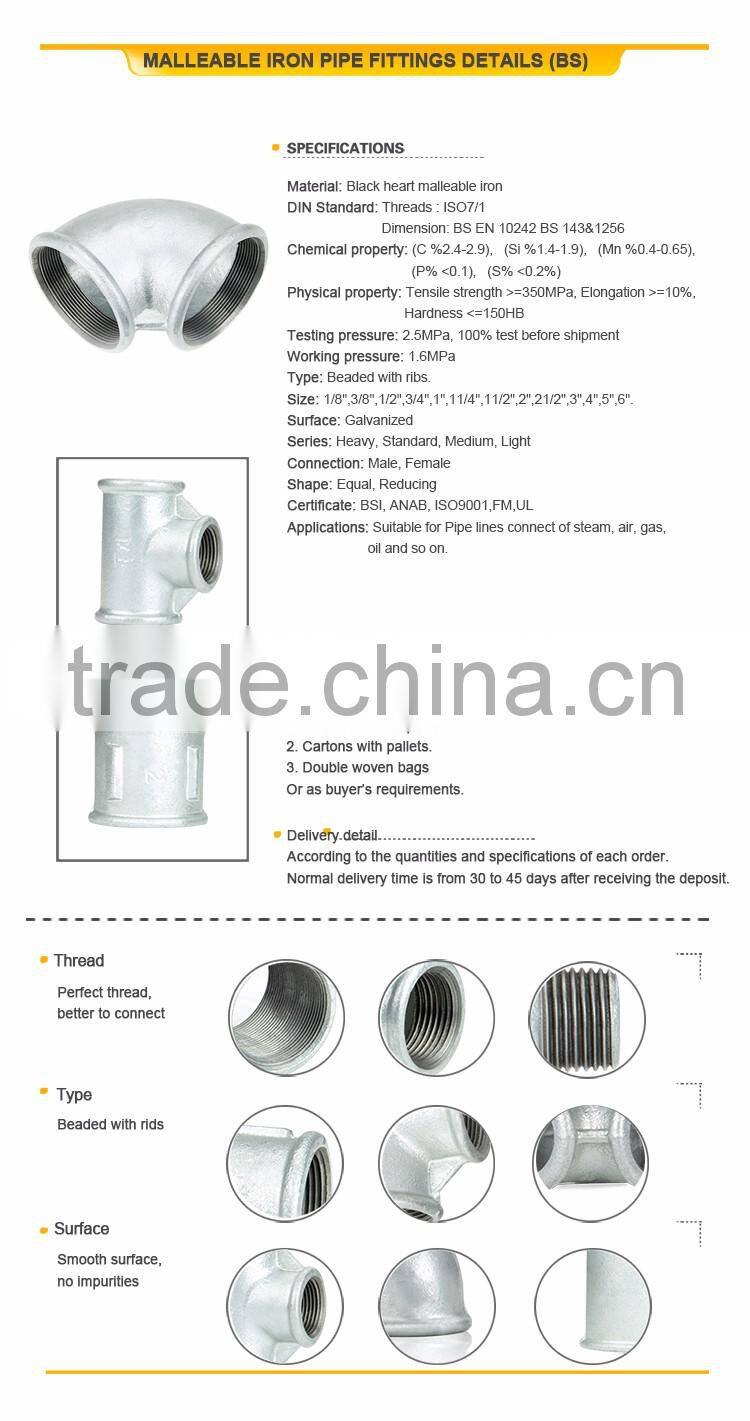

MALLEABLE IRON PIPE FITTINGS DETAILS
Material	Black heart malleable iron
British Standard	Threads :ISO 7/1
	Dimension: BS EN 10242, BS 143&1256
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength >=300MPa, Elongation >=6%, Hardness <=150HB
Testing pressure	2.5MPa, 100% test before shipment
Working pressure	1.6MPa
Type	Banded without ribs, Beaded with ribs.
Size	1/8",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6".
Surface	Ø Galvanized
	Ø Normal black/Shining black
Series	Heavy, Standard, Medium, Light
Model	Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, Sockets, Nipples, Hexagon/Round Caps, Plugs, Locknuts, Flanges, Side Outlet Tees, Side Outlet Elbows, etc.
Related products	1. Carbon steel nipples and sockets	2. Flanges
	3. Carbon steel butt-welding fittings	4. Pipes
	5. High-pressure fittings	6. Valves
	7. P.T.F.E .thread seal tape	8. Brass fittings
	9. Ductile iron pipe fittings	10. Copper fittings
	11. Grooved fittings	12. Sanitary fittings, etc.
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI, ANAB, ISO9001,FM,UL
Applications	Suitable for Pipe lines connect of water, steam, air, gas, oil and so on.
Buyer’s drawings or designs are available.
Package	1. Cartons without pallets.
	2. Cartons with pallets.
	3. Double woven bags
	Or as buyer’s requirements.
Delivery detail
According to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.
