Specifications

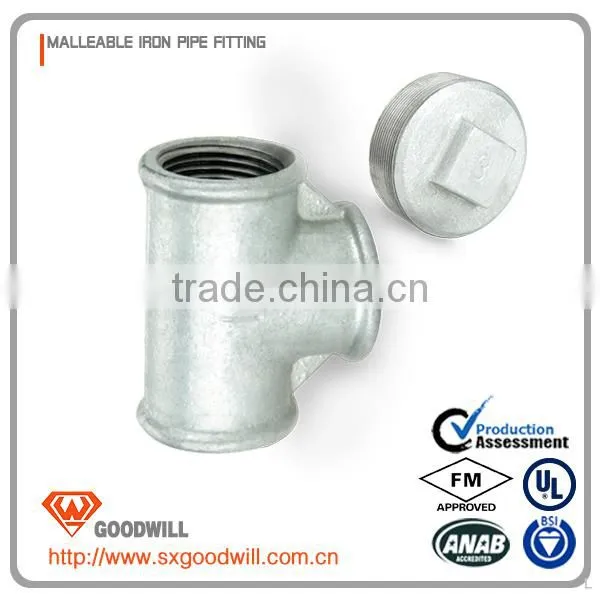

High quality malleable iron pipe fittingsMaterial: Black heart malleable iron
Surface: Hot-dipped galvanized, Normal black,
|
|
|
|
|
|
|
|
MALLEABLE IRON PIPE FITTINGS DETAILS
Material Black heart malleable iron
British Standard Threads :ISO 7/1
Dimension: BS EN 10242, BS 143&1256
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength >=300MPa, Elongation >=6%, Hardness <=150HB
Testing pressure 2.5MPa, 100% test before shipment
Working pressure 1.6MPa
Type Banded without ribs, Beaded with ribs.
Size 1/8",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6".
Surface Ø Galvanized
Ø Normal black/Shining black
Series Heavy, Standard, Medium, Light
Model Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, Sockets, Nipples, Hexagon/Round Caps, Plugs, Locknuts, Flanges, Side Outlet Tees, Side Outlet Elbows, etc.
Related products 1. Carbon steel nipples and sockets 2. Flanges
3. Carbon steel butt-welding fittings 4. Pipes
5. High-pressure fittings 6. Valves
7. P.T.F.E .thread seal tape 8. Brass fittings
9. Ductile iron pipe fittings 10. Copper fittings
11. Grooved fittings 12. Sanitary fittings, etc.
Connection Male, Female
Shape Equal, Reducing
Certificate BSI, ANAB, ISO9001,FM,UL
Applications Suitable for Pipe lines connect of water, steam, air, gas, oil and so on.
Buyer’s drawings or designs are available.
Package 1. Cartons without pallets.
2. Cartons with pallets.
3. Double woven bags
Or as buyer’s requirements.
Delivery detail
According to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.
