Malleable Black bs Standard Thread Hexagon Nipple

US$ 0.098 - 42 MOQ: 100 Pieces

Key Specifications

Material:

Iron

Technics:

Casting

Type:

Other, Elbow/Coupling/Tee/Union/Cap

Shanxi Goodwill Industrial & Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XINGANG PORT CHINA

Delivery Detail:

Delivery time depends on order quantity.

Material Iron

Technics Casting

Type Other, Elbow/Coupling/Tee/Union/Cap

Place of Origin Shanxi, China

Connection Other, Male/Female

Shape Other, Equal/Reducing

Head Code Other, Round

Specifications

High quality malleable iron pipe fittings
Material: Black heart malleable iron
Size: 1/8",3/8",1/2"3/4",1",11/4",11/2",2",21/2

Malleable Iron Pipe Fittings Details
Material	Black heart malleable iron
American Standard	Threads : ANSI B1.20.1
	Dimension: ASME B 16.3, B16.14.
	Union: B 16.39
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength >=350MPa, Elongation >=10%, Hardness <=150HB
Testing pressure	2.5MPa, 100% test before shipment
Working pressure	1.6MPa
Type	Banded without ribs.
Size	1/8",3/8",1/2"3/4",1",11/4",11/2",2",21/2",3",4",5",6".
Surface	Ø Galvanized
	Ø Normal black/Shining black
Series	Heavy, standard, medium, light
Model	Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, Sockets, Nipples, Hexagon/Round Caps, Plugs, Locknuts, Flanges, Side Outlet Tees, Side Outlet Elbows, etc.

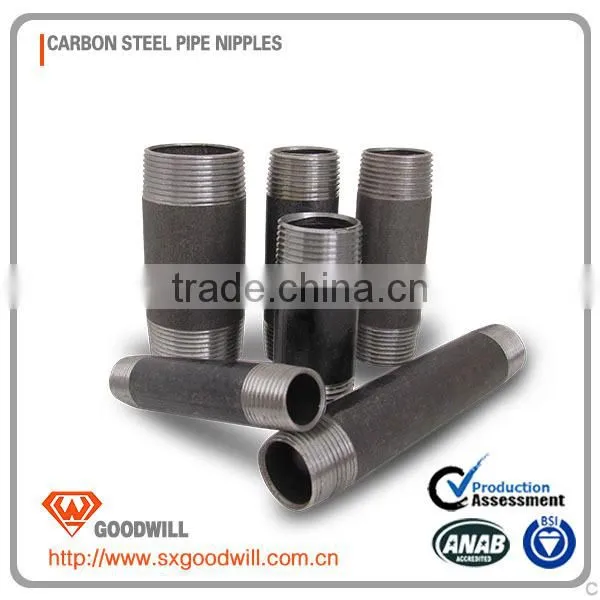

Related products	1. Carbon steel nipples and sockets	2. Flanges
	3. Carbon steel butt-welding fittings	4. Pipes
	5. High-pressure fittings	6. Valves
	7. P.T.F.E .thread seal tapes	8. Brass fittings
	9. Ductile iron pipe fittings	10. Copper fittings
	11. Grooved fittings	12. Sanitary fittings, etc.
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI, ANAB, ISO9001,FM,UL
Applications	Suitable for Pipe lines connect of steam, air, gas, oil and so on.
Buyer’s drawings or designs are available.
Package	1. Cartons without pallets.
	2. Cartons with pallets.
	3. Double woven bags
	Or as buyer’s requirements.
Delivery detail
According to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.
