Complete fabricated steel structure warehouse building with ventilation
- 1500 Ton / Tons per Month
- Qingdao
- T/T
- Production of hot-dip galvanized gantry frame for expressway
- Highway gantry frame production custom hot-dip galvanized steel structure
- Hot-dip galvanized steel structure highway sign pole gantry for highway
- Galvanized steel structure has strong bearing capacity Expressway steel structure
- Highway gantry frame safe and durable galvanized steel structure
- Expressway steel structure Railway Bridge Girder Launching Beam Launcher Crane
Product Details
Standard: | AISI, ASTM, BS, DIN, GB, JIS | Grade: | Q235 Q345B | Dimensions: | Customer's Request |
Place of Origin: | Shandong, China | Brand Name: | HYSS | Model Number: | HY-37 |
Type: | Light | Application: | Steel Fabricated House |
Product Description

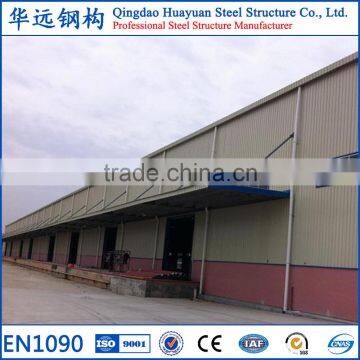

Complete fabricated steel structure warehouse building with ventilation
Steel structure is made from organized combination of structural steel members designed to carry loads and provide adequate rigidity. The members of the steel structures are made of steel and are joined by welding, riveting or bolting. These structures are reliable and require less material than other types of structures due to the high strength of steel which are distinguished by the diversity of their shapes and their architectural expressiveness.
Steel Structure Application Fields:
We cater for every market from warehouses, workshops to 4S car exhibition centers, shopping mall, aircraft hangers, poultry & pig sheds, container houses, agricultural& commercial buildings and so on.
Characteristics:
1. Cost savings: be inexpensive to manufacture, requires less maintenance than other traditional building methods. Moreover, 98% of all steel structure can be recycled into new steel products without reducing physical properties.
2.Quick erection: steel structures can be erected quickly. The accuracy of steel components speeds up the process and allows monitoring on the management software to complete sooner.
3. Health and safety: Structural Steel is manufactured at the factory and rapid erection on the construction site by skilled personnel making steel structure safe. Industry surveys consistently demonstrate that steel structure is the safest solution. There is very little noise and dust in the process of steel structure erection because structural steel members are fabricated at the factory.
4. Flexibility: Can be modified in the future for new application, loading conditions, vertical expansions and changes in owner’s desires in ways that other framing systems can not accomplish.
Main parts of the steel structures and technical parameters:
Main Steel Frame System | |
Main structure | H section steel Q345, alkyd painting, two primary painting, two finish painting. |
Roof purlin | XZ160*60*20*2.5, galvanized |
Wall purlin | XZ160*60*20*2.5, galvanized |
Intensive bolt | Grade 10.9 |
Turn buckle bolt | M20+2, steel Q235, processing |
Anchor bolt | M24, steel Q235, processing |
Ordinary bolt | Galvanized bolt M20 |
Ordinary bolt | Galvanized bolt M12 |
Brace nut | Galvanized bolt M12 |
Bracing System | |
Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
Wall & Roof System | |
Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Edge cover | 0.4mm color plate, angle Alu. |
Fittings & accessories | Nails, glue etc. |
Unpowered ventilator | Diameter Φ600, stainless steel |
Sky lighting band | 1.2mm FRP, double layer |
Sliding door | sandwich panel door |
Roof drainage system | |
Gutter | 0.8mm color steel plate |
Rainspout pipes | Φ160 PVC pipe |
We can produce various steel structure components like H beam, box column, grid column, round column etc.
3 heavy steel structure production lines
5 light steel structure production lines
5 C section steel production lines
2 sandwich panel production lines
Production capacity of steel structure components: 12000 tons
Production capacity of various sandwich panels: 200,000 m2
Total area of finished steel structure projects: 1.2 million m2
Steel Structure Building Manufacturing Process:
Huayuan Steel Structure Co., Ltd, established in September 2000 with manufacturing base in Liaocheng city, Shandong Province, is a new professional high-tech enterprise that specialized in designing, manufacturing, processing and installing of various steel structure projects, prefab houses and container houses.
We are professional manufacturer of steel structure with 15 years experience, and we were awarded state class one qualification (top class) for steel structure production & contracting, also approved by ISO and CE EN1090 certification. Huayuan Steel Structure Co., Ltd is always committed to the development of steel structure.
CE EN1090 certification
Safety Production License (No.150090-03)
State Qualification Class One (No.B1084037152301-6/2)
Quality Management System Certification ISO9001:2008
Environment Management System Certification ISO14001:2004
Occupational Health and Safety Management System Certification
1. What’s your company strength?
Huayuan has strong capability of design and production for steel structure. At present, we have 24 constructors, 20 senior engineers, 36 assistant engineers as well as 120 professional skilled workers with intermediate and above technical certificate. With abundant technical strength, we are large scale steel structure domestic enterprise integrating professional design, modern production equipment, scale production and integral construction.
2. What are your main markets?
Guided by global field of vision, our products have been exported to many countries and regions with its good quality and good service, such as France, UAE, South East Asia, Africa and so on. We will be glad to establish sincere business cooperation with you in the near future.ction.
3. Do you offer designing service for us?
Yes, we have more than 20 design engineers. We could design full solution drawings as your requirements. They use software such as Auto CAD, PKPM, MTS, 3D3S, etc.e will be glad to establish sincere business cooperation with you in the near future. ction.
4. What is the delivery time?
Delivery time depends on order quantities. Generally, the delivery time will be 30 days after receiving deposit.
5. Do you offer guiding installation on site overseas?
Yes, we can provide the service of installation, supervision and training for you. We can also send our professional technical engineer to supervise installation on site overseas, and we have our own abroad guiding installation team consisting of more than 30 people.
