Multicolor frp round bar/Carbon Fiber Rod/Fiberglass

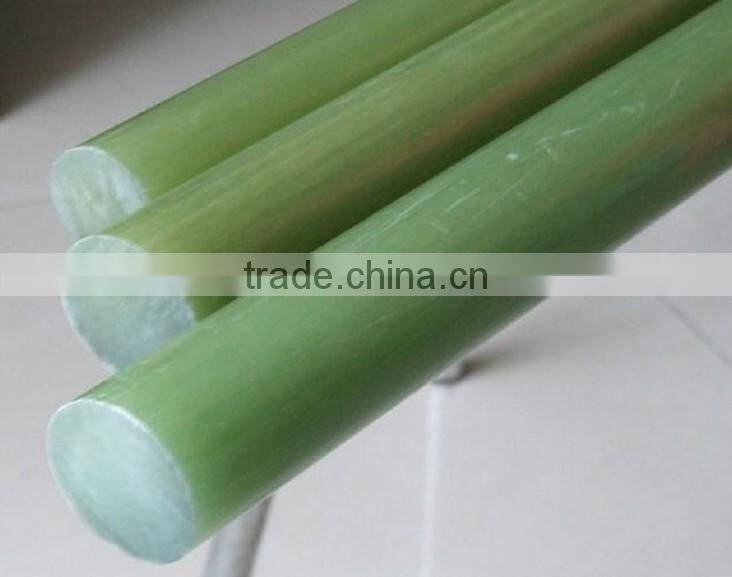

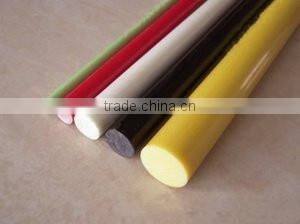

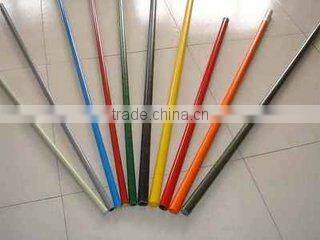

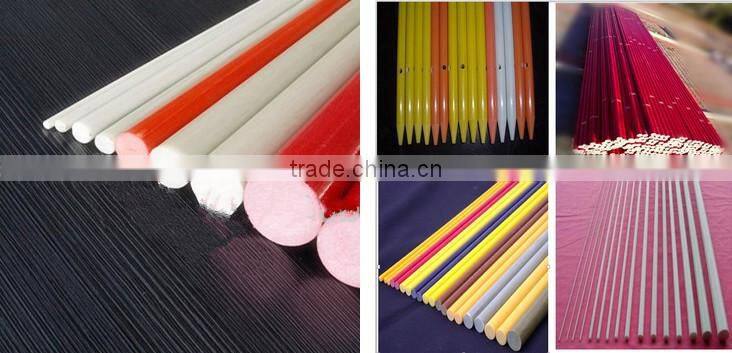

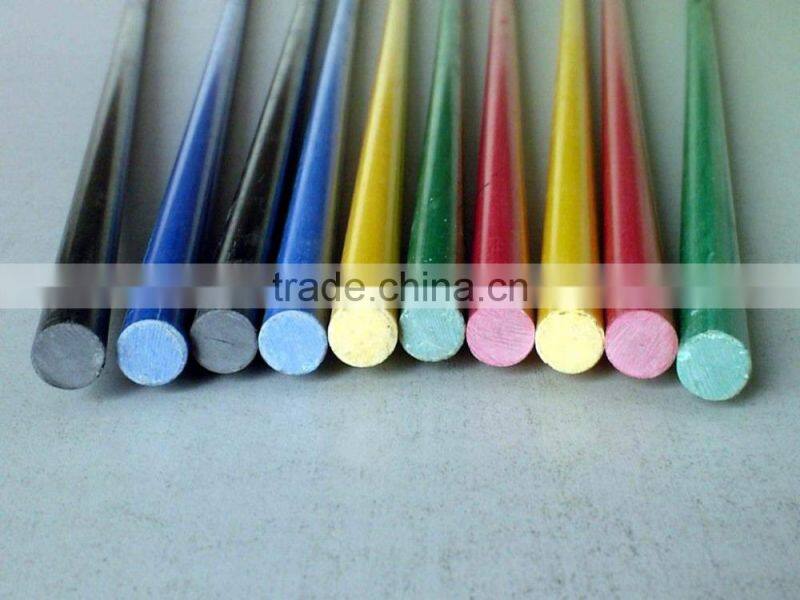

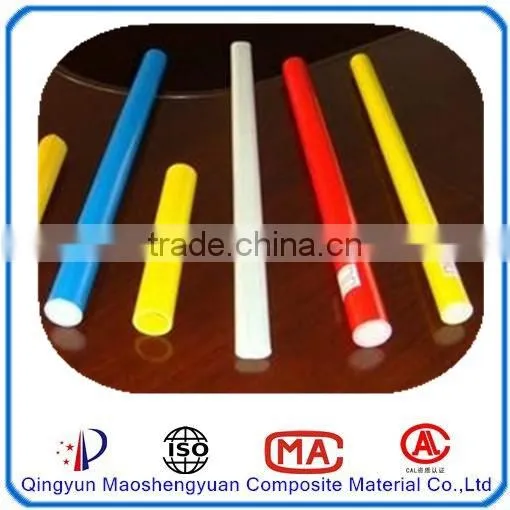

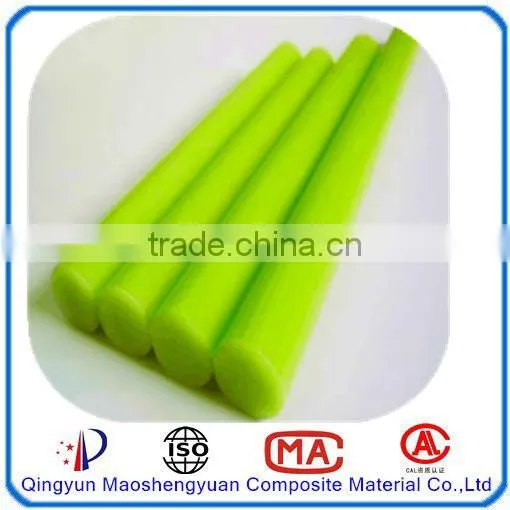

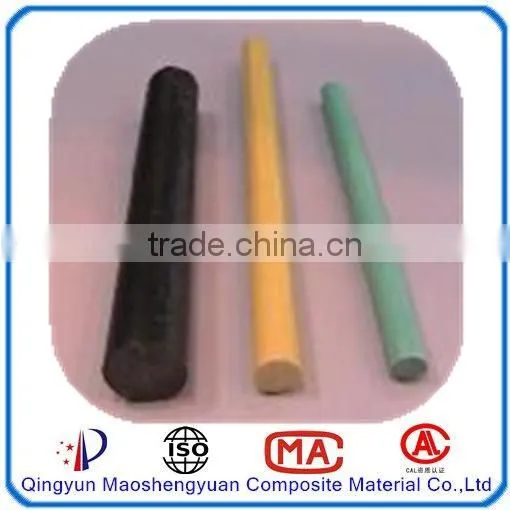

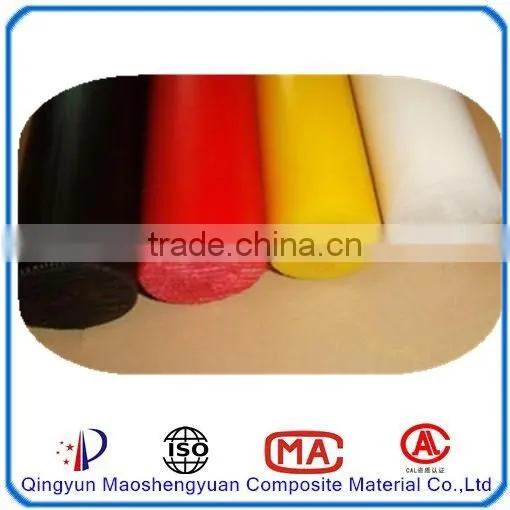

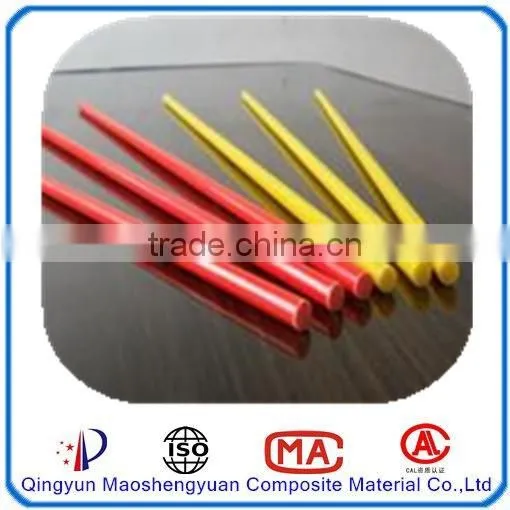

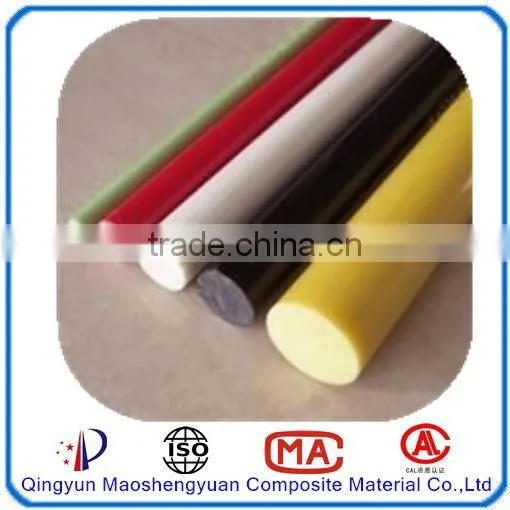

FRP Rod

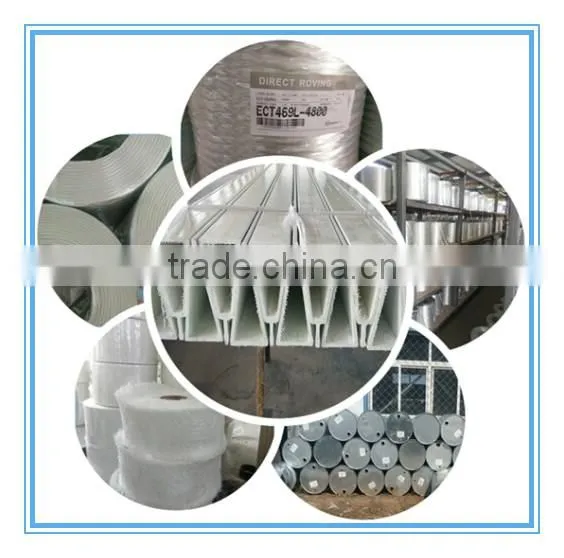

Glass fiber reinforced plastic round rod is composed of unsaturated polyester resin, continuous glass fiber yarn,
glass fiber mat, pultrusion process control, process is irreversible, it can't melt or form again, again has high
strength, light weight, antiseptic, beautiful, impact resistance and other characteristics.

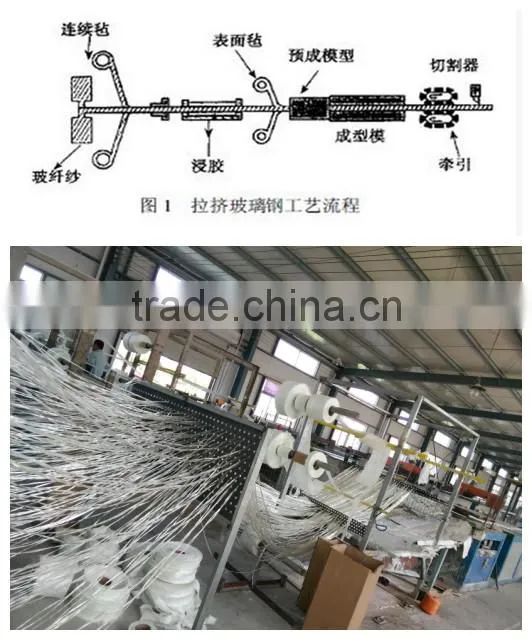

Molding process
During the pultrusion process, the raw material are pulled through a heated steel forming die using a
continuous pulling device when the reinforcements are saturated with the resin mixture in the resin
bath and the wetted reinforcement package is wrapped in a surfacing veil. the completed package
then goes into premolding stage that roughly forms the package into the appropriate shape to enter
the heated trimming die for curing. the trimming die is the exact shape of the final part desired. upon
exiting the trimming die, the part is over 90% processing and solid. Cutting in accordance with
requirements of the length, the entire process is completed.
Product specification

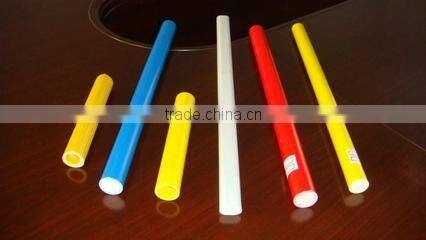

| Round Pipe | OD*ID(mm) | Weight(g/m) | OD*ID(mm) | Weight(g/m) | |
| 4*2 | 19 | 5*2 | 33 | ||
| 6*2 | 50 | 6.5*3 | 52 | ||
| 7*3 | 63 | 7.5*4 | 63 | ||
| 8*4 | 75 | 8.5*4 | 88 | ||
| 9*5 | 87 | 9.5*5 | 102 | ||
| 10*6 | 100 | 11*7 | 113 | ||
| 12*5 | 126 | 12.7*8 | 153 | ||
| 14*10 | 151 | 15*10.5 | 180 | ||
| 16*12 | 178 | 18*13 | 243 | ||
| 19*14.5 | 237 | 20*15 | 275 | ||
| 22*16 | 258 | 24*18 | 396 | ||
| 25*20 | 353 | 25.4*20 | 385 | ||
| 26*20 | 433 | 28*24 | 327 | ||
| 30*25 | 432 | 32*27 | 463 | ||
| 35*30 | 510 | 38*30 | 854 | ||
| 40*30 | 1099 | 50.8*40 | 1552 | ||
| 76*60 | 3416 | 100*90 | 2983 | ||
Product advantage
(1) high strength Pultrusion profiles is 150-300 mpa tensile strength, bending strength of 200-300 mpa,
the 1000 h after artificial accelerated aging of bending strength retention rate can reach 78%.
(2) low deformation rate Glass fiber reinforced plastic pipe by 1000 h after artificial accelerated aging change
in length is + 0.03%, the width of the rate of 0.07%.Therefore making products with the pultrusion
profiles geometric shapes and sizes can keep the long-term stability.
(3) high thermal deformation temperature Pultrusion profiles of the thermal deformation temperature of
186 ℃, high temperature softening, 60 ℃ the same crisp, to ensure the normal use of various kinds of
ambient temperature.
(4) the bibulous rate is low General purpose bibulous rate is less than 0.5%, and the bibulous rate of
pultrusion profiles is only 0.257%, suitable for use in damp environment.
(5) low coefficient of heat preservation and heat insulation heat transfer coefficient of pultrusion profiles
with hard PVC close, made of the single frame of the double glass window insulation thermal insulation
coefficient of only 2.69 W/(m2K), and with the same type of steel, aluminum ingot the coefficient of
heat preservation and heat insulation of the window is as high as 4.0 W/(m2K), shows that FRP doors
and Windows of energy saving is obvious.
widely used in petroleum, chemical industry and other corrosion environment of stairs and railings, operating
platform, corridor, bracket, etc.

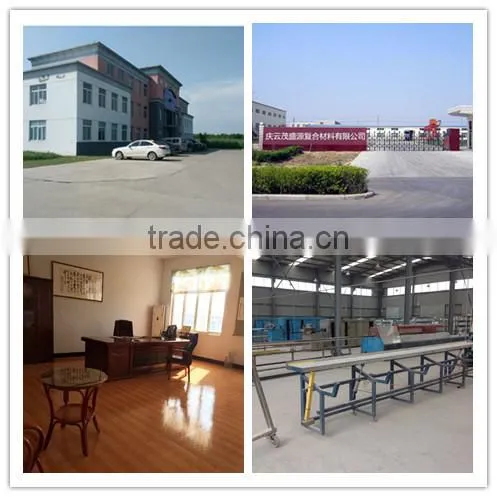

company was founded in 1993, we introduced the most advanced fully automatic pultrusion production
equipment, products and materials including instruments imported from the United States.In addition, the
company all staff by the specialist training in the United States.For more than 20 years, through the efforts,
we constantly innovation, enlarge the range of products.Our company has become one of the best production
of FRP pultrusion products manufacturers.
Our Services:
1. High quality
Our company ensures our product light weight, high strength, anticorrosion, resist heat, UV and so on
2. Competitive price
We can adjustment the price according to your market demand’s changes, and also can launch a series
of promotional activities in a bad economic environment.
3. Professional
Experienced technical support team. We have very experienced R&D engineers. Maoshengyuan is a
leading and professional manufacturer of fiberglass product for 20 years, We are special in producing
and sells, as development, methods and handling
4. Best service
For all your inquires about us or our products, we will reply you in detail within 24 hours.
1.Do you provide OEM service?
Yes, we do.Please send us your design draft to us, we will arrange to shape.
2.How to pay?
Telegraphic transfer (T/T or L/C.
3 how long is delivery time?
According to the quantity of the goods, it will be 10 to 30 days.
4 packaging?
We usually use carton or according to customer's requirement.
5.Do you arrange shipment?
Yes, we will arrange shipment for you, if necessary.
6.After the shipment of documents?
After shipment, we will put all documents sent to your E-mail, include packing list, commercial
invoice, bill of lading, certificate of other requirements of the customer.
7 do you have a warranty on glass fiber reinforced plastic products?
Glass fiber reinforced plastic grille has 10 years of guarantee.We will free replacement if broken.
