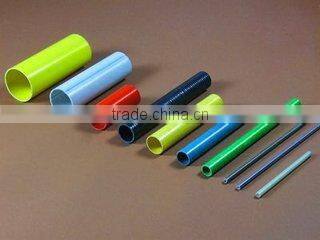

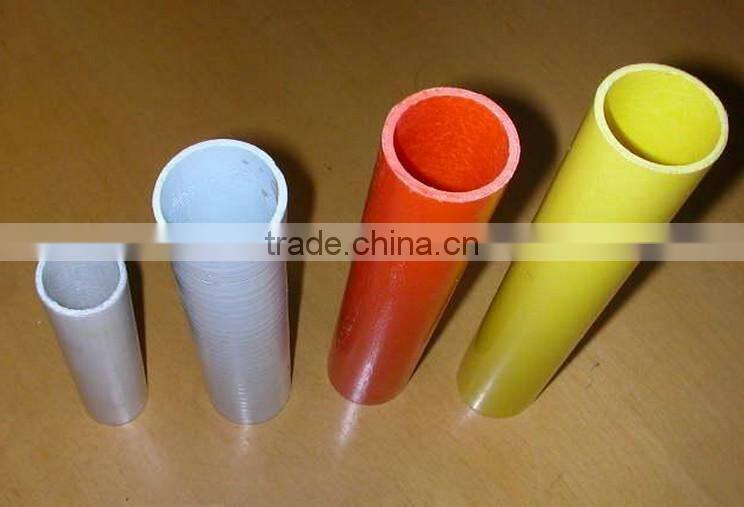

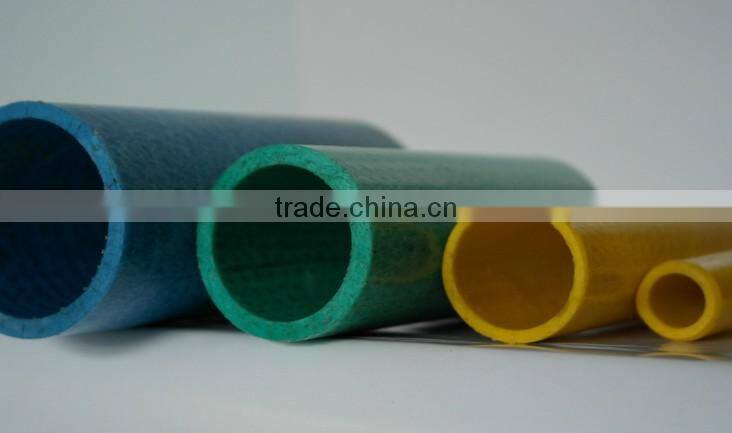

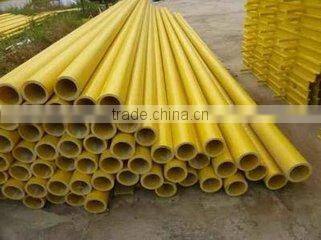

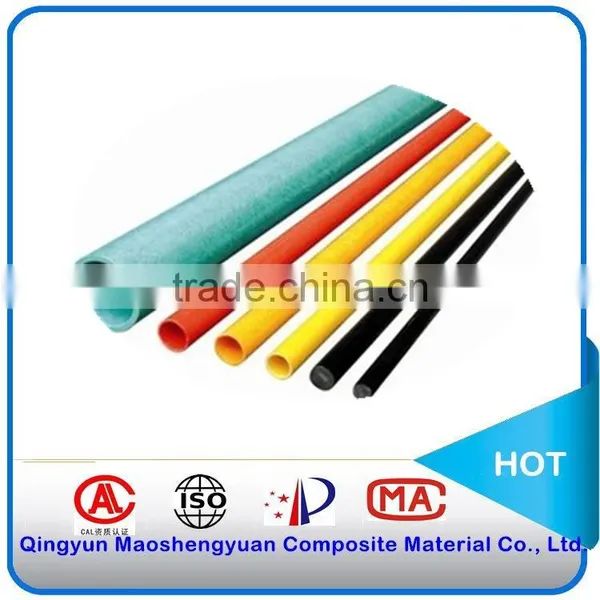

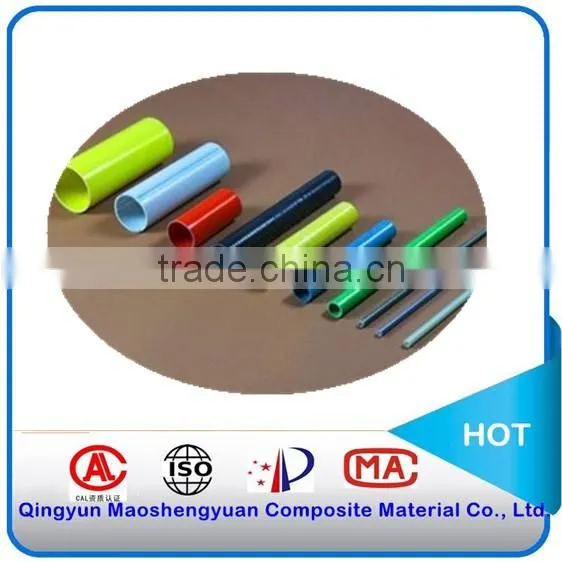

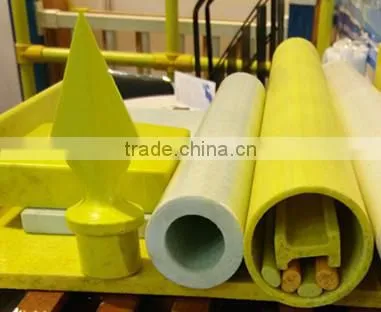

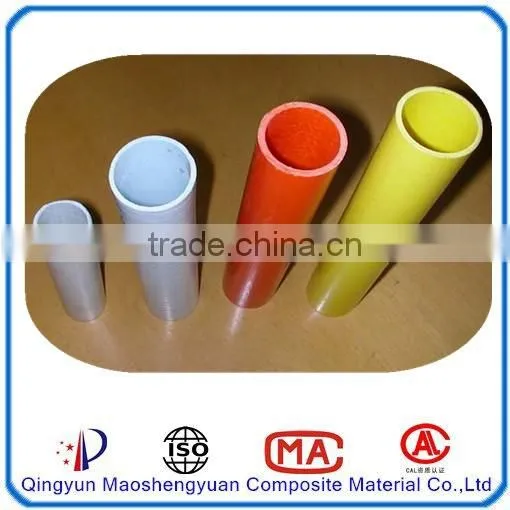

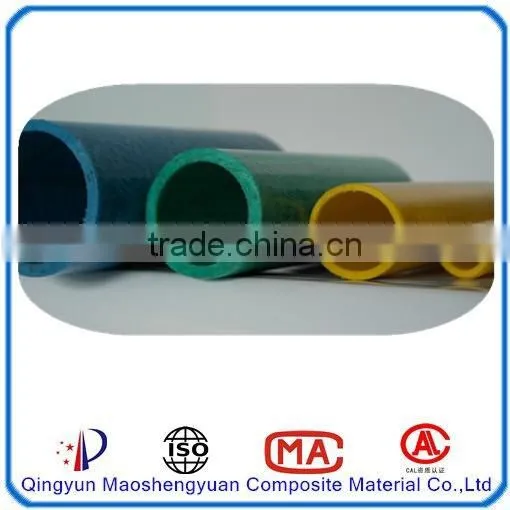

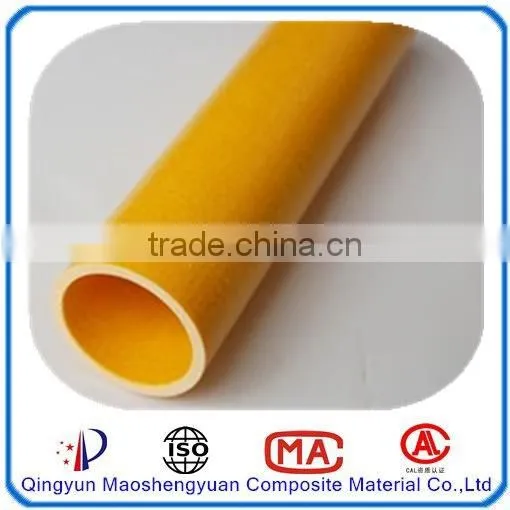

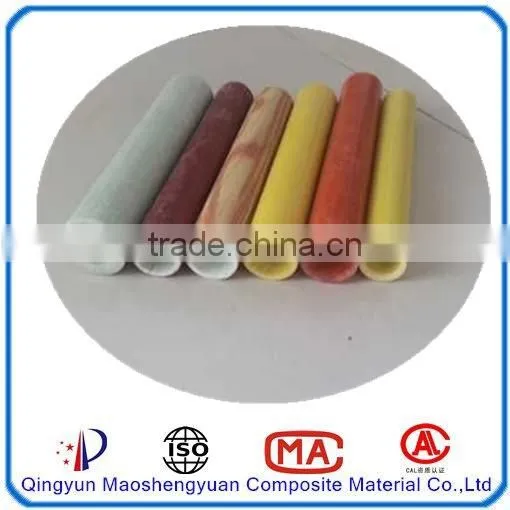

T9 frp circular tube/t5 circular tube/circular led tube
FRP pipe is made of unsaturated polyester resin, continuous glass fiber yarn and glass fiber mat, the pultrusion process control, the process is irreversible, it can't be melt or forming again again, so it has high strength, light weight, antiseptic, beautiful, impact resistance and other characteristics
Product specification
| Round Pipe | OD*ID(mm) | Weight(g/m) | OD*ID(mm) | Weight(g/m) | |
| 4*2 | 19 | 5*2 | 33 | ||
| 6*2 | 50 | 6.5*3 | 52 | ||
| 7*3 | 63 | 7.5*4 | 63 | ||
| 8*4 | 75 | 8.5*4 | 88 | ||
| 9*5 | 87 | 9.5*5 | 102 | ||
| 10*6 | 100 | 11*7 | 113 | ||
| 12*5 | 126 | 12.7*8 | 153 | ||
| 14*10 | 151 | 15*10.5 | 180 | ||
| 16*12 | 178 | 18*13 | 243 | ||
| 19*14.5 | 237 | 20*15 | 275 | ||
| 22*16 | 258 | 24*18 | 396 | ||
| 25*20 | 353 | 25.4*20 | 385 | ||
| 26*20 | 433 | 28*24 | 327 | ||
| 30*25 | 432 | 32*27 | 463 | ||
| 35*30 | 510 | 38*30 | 854 | ||
| 40*30 | 1099 | 50.8*40 | 1552 | ||
| 76*60 | 3416 | 100*90 | 2983 | ||
Product advantage
(1) high strength Pultrusion profiles is 150-300 mpa tensile strength, bending strength of 200-300 mpa, the 1000 h after artificial accelerated aging of bending strength retention rate can reach 78%.
(2) low deformation rate Glass fiber reinforced plastic pipe by 1000 h after artificial accelerated aging change in length is + 0.03%, the width of the rate of 0.07%.Therefore making products with the pultrusion profiles geometric shapes and sizes can keep the long-term stability.
(3) high thermal deformation temperature Pultrusion profiles of the thermal deformation temperature of 186 ℃, high temperature softening, 60 ℃ the same crisp, to ensure the normal use of various kinds of ambient temperature.
(4) the bibulous rate is low General purpose bibulous rate is less than 0.5%, and the bibulous rate of pultrusion profiles is only 0.257%, suitable for use in damp environment.
(5) low coefficient of heat preservation and heat insulation heat transfer coefficient of pultrusion profiles with hard PVC close, made of the single frame of the double glass window insulation thermal insulation coefficient of only 2.69 W/(m2K), and with the same type of steel, aluminum ingot the coefficient of heat preservation and heat insulation of the window is as high as 4.0 W/(m2K), shows that FRP doors and Windows of energy saving is obvious.
widely used in petroleum, chemical industry and other corrosion environment of stairs and railings, operating platform, corridor, bracket, etc.
company was founded in 1993, we introduced the most advanced fully automatic pultrusion production equipment, products and materials including instruments imported from the United States.In addition, the company all staff by the specialist training in the United States.For more than 20 years, through the efforts, we constantly innovation, enlarge the range of products.Our company has become one of the best production of FRP pultrusion products manufacturers.
1.Do you provide OEM service?
Yes, we do.Please send us your design draft to us, we will arrange to shape.
2.How to pay?
Telegraphic transfer (T/T or L/C.
3 how long is delivery time?
According to the quantity of the goods, it will be 10 to 30 days.
4 packaging?
We usually use carton or according to customer's requirement.
5.Do you arrange shipment?
Yes, we will arrange shipment for you, if necessary.
6.After the shipment of documents?
After shipment, we will put all documents sent to your E-mail, include packing list, commercial invoice, bill of lading, certificate of other requirements of the customer.
7 do you have a warranty on glass fiber reinforced plastic products?
Glass fiber reinforced plastic grille has 10 years of guarantee.We will free replacement if broken.
