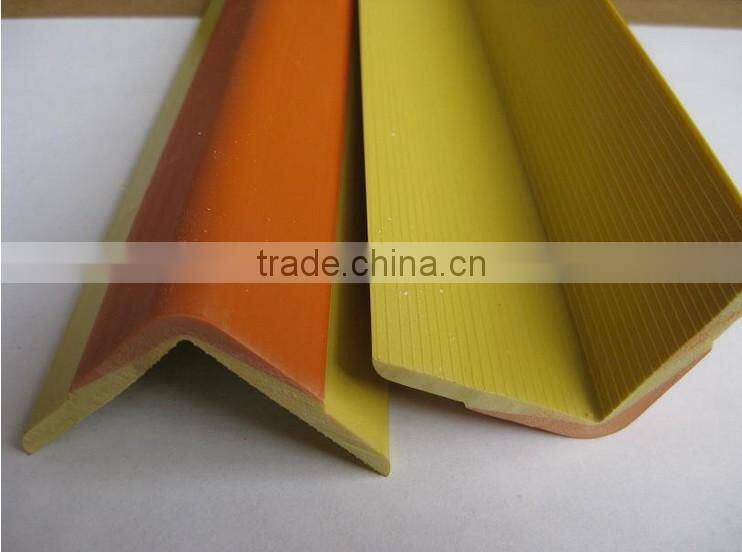

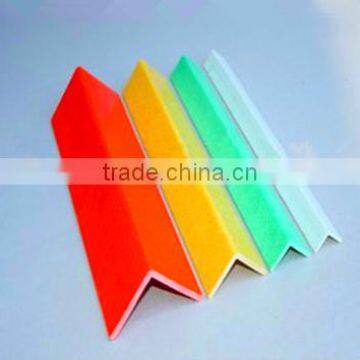

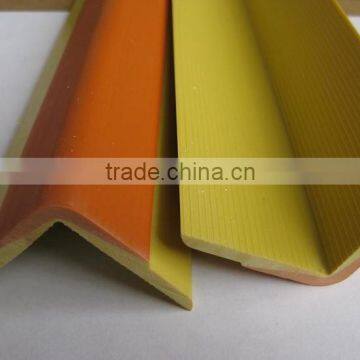

High strength FRP angle iron,fiberglass angle iron, fiberglass angle steel
Frp angle iron is a kind of glass fiber reinforced plastic products.Materials including glass fiber roving seam, continuous glass fiber mat, glass fiber mat and surface veil and unsaturated polyester resin, vinyl resin, phenolic resin as matrix material.fiberglass steel angles is constantly being formed after the high temperature heating.It can resist acid, alkali, corrosion and other gas or liquid, organic solvent and compounds.This product is a kind of new building structure framework, can also be used in industry, farming and other industries.
Molding process
During the pultrusion process, the raw material are pulled through a heated steel forming die using a continuous pulling device. when the reinforcements are saturated with the resin mixture in the resin bath and the wetted reinforcement package is wrapped in a surfacing veil. the completed package then goes into premolding stage that roughly forms the package into the appropriate shape to enter the heated trimming die for curing. the trimming die is the exact shape of the final part desired. upon exiting the trimming die, the part is over 90% processing and solid. Cutting in accordance with requirements of the length, the entire process is completed.
Product specification
Name |
Size |
Weight(kg/m) |
angle steel |
50*50*5 |
0.85 |
angle steel |
40*40*3 |
0.37 |
angle steel |
230*106*3 |
3.85 |
angle steel |
100*60*6 |
2.00 |
angle steel |
100*50*5 |
1.85 |
Company can also customize product according to customer requirements, such as perforation sizes, different shapes, different sizes, different load requirements, maximize meet customer demand, and reduce losses to a minimum, cost savings for customers.
Product advantage
1.No rust corrosion resistance, easy maintenance, long service life.
2.Light weight, high strength., only a quarter of the density of steel, light weight, easy to handle.
3. Fatigue resistance, allowing repeated bending without permanent deformation.
4.Which can effectively reduce the influence of ultraviolet (uv) radiation.
5. Fire prevention, flame retardant
6. Good electrical insulating materials. Suitable for magnetic sensitive equipment area, flammable and explosive place.
Product application
Fiberglass steel angles are often used in chemical processing plants, Marine construction, food and beverage processing, oil refining, paper industry, in areas such as sewage treatment and transport.Company can according to customer request a variety of, professional design, carefully produced to meet customer needs all kinds of profiles.Can reach the standard of GB, ASTM, ENISO, and mechanical performance test report issued to the customer.
Company was founded in 1993, we introduced the most advanced fully automatic pultrusion production equipment, products and materials including instruments imported from the United States.In addition, the company all staff by the specialist training in the United States.For more than 20 years, through the efforts, we constantly innovation, enlarge the range of products.Our company has become one of the best production of FRP pultrusion products manufacturers.
