Product Details
Place of Origin: | Hebei, China | Brand Name: | wzh group | Model Number: | YX |
Material: | Other, Sandwich Panel, Steel,Galvanized steel,Galvalume Steel | Use: | Carport, Hotel, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant |
Product Description

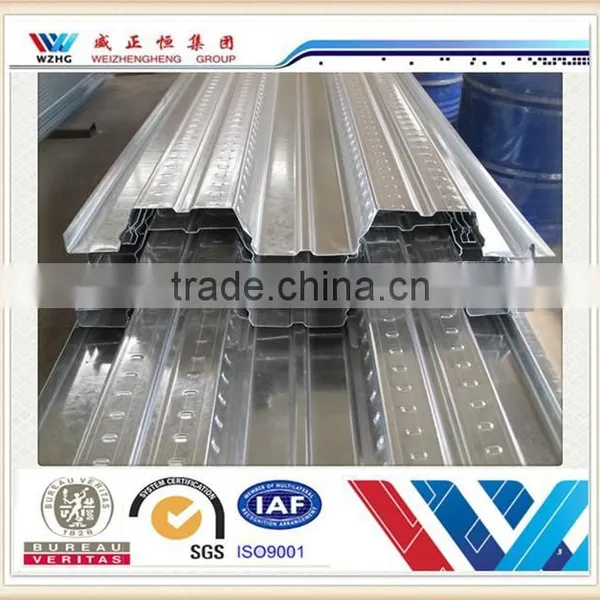

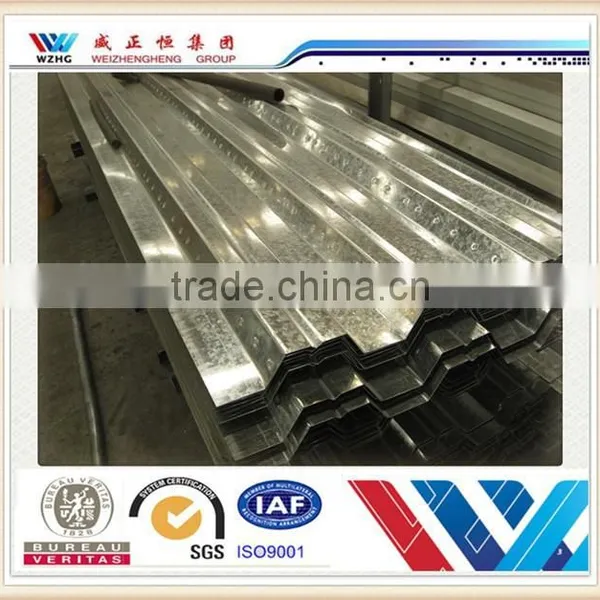

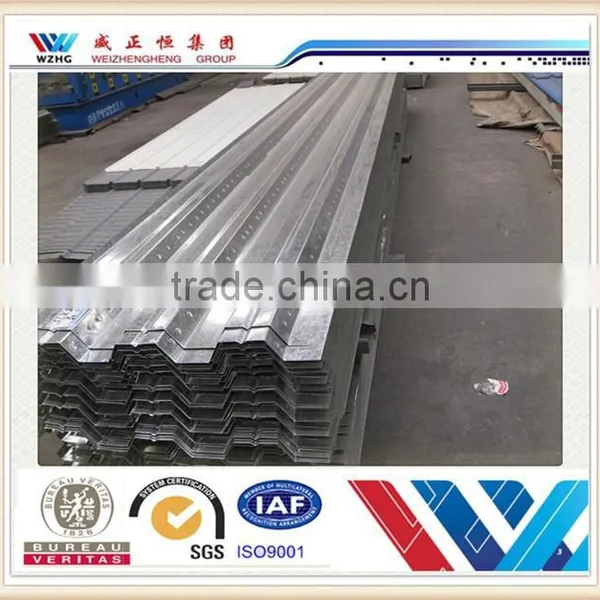

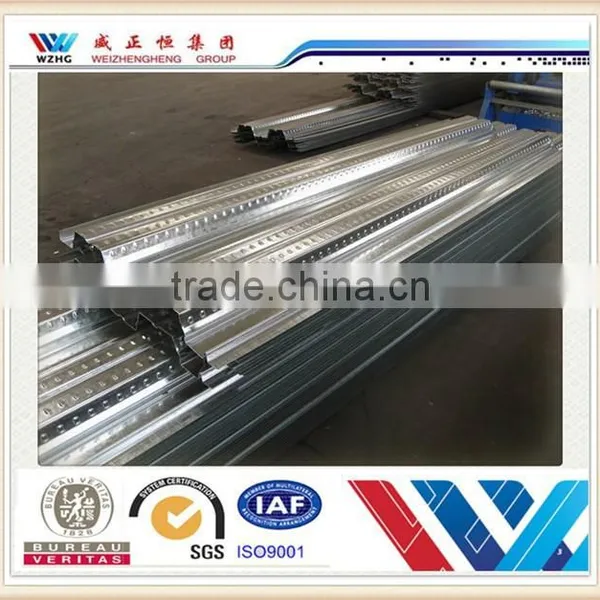

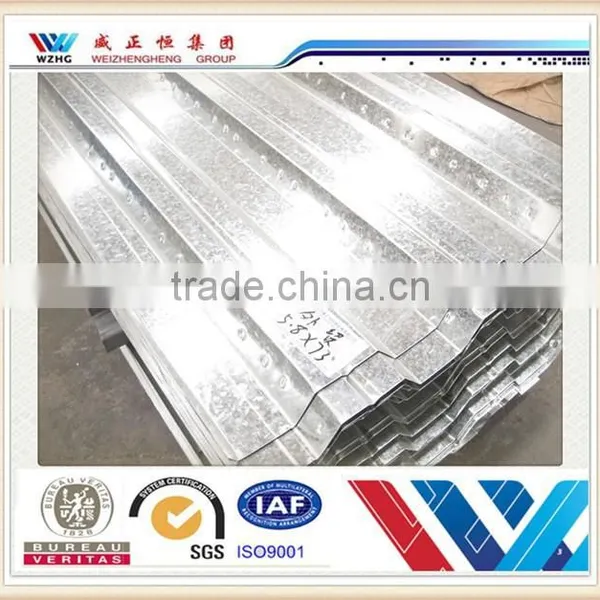

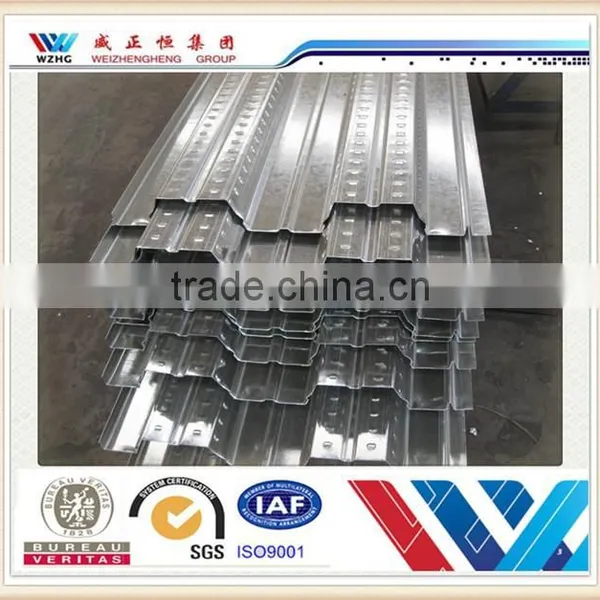

Made in China High tensile Decking Sheets steel floor decking steel sheet
Specification
1. High tensile structural grade steel
2. Thickness: 0.8 mm, 1 mm, 1.2 mm
3. Yield Strength: 240 Mpa, 350 Mpa, 550 Mpa
4. Pre coated galvanized under side giving durable
5. Attractive appearance and minimum future maintenance
Galvanized steel floor decking is the permanent upholding slab used in the steel structure buildings, bearing the construction load and concrete weight. In using stage, it will be fixed above the steel beam and used at the bottom of the reinforcing steel bar and will generated composite effect after concrete reaches the strength.
Model WZH-AC-2015-FD688
Tile: YX76-344-688
Total width: 688mm
Length: 1m to 11.8m
Zinc coating: 80g/m2 to 180g/m2
Standard: ASTM,JIS,GB,DX51D
wave pitch: 76mm
wave space: 344mm
Model WZH-AC-2015-FD720
Tile: YX51-240-720
Total width: 720mm
Length: 1m to 11.8m
Zinc coating: 80g/m2 to 180g/m2
Standard: ASTM,JIS,GB,DX51D
wave pitch: 51mm
wave space: 240mm
Model WZH-AC-2015-FD600
Tile: YX75-200-600
Total width: 600mm
Length: 1m to 11.8m
Zinc coating: 80g/m2 to 180g/m2
Standard: ASTM,JIS,GB,DX51D
wave pitch: 75mm
wave space: 200mm
Model WZH-AC-2015-FD1025
Tile: YX51-342-1025
Total width: 1025mm
Length: 1m to 11.8m
Zinc coating: 80g/m2 to 180g/m2
Standard: ASTM,JIS,GB,DX51D
wave pitch: 51mm
wave space: 342mm
YX750 | ||
Thickness | Section of inertia cm4/m | Section of resistance cm3/m |
0.7mm | 43.47 | 14.34 |
0.8mm | 46.69 | 16.39 |
1.0mm | 62.11 | 20.48 |
1.2mm | 74.53 | 24.59 |
YX688 | ||
Thickness | Section of inertia cm4/m | Section of resistance cm3/m |
0.7mm | 80.19 | 20.53 |
0.8mm | 91.62 | 23.46 |
1.0mm | 119.38 | 30.61 |
1.2mm | 142.01 | 36.98 |
Application:
Outdoor: roof, roof structure, surface sheet of balcony, frame of window, door, door of garage, roller shutter door, booth, Persian blinds, cabana, refrigerated wagon and so on.
Indoor: door, isolater, frame of door, light steel structure of house, sliding door, folding screen, ceiling, internal decoration of toilet and elevator.
Notes for processing of color coated steel sheet
Processing flow
Manual Uncoiler — Entry Beach — Roll Forming Machine — Automatic Shearing Mechanism — Computer Control Cabinet —Run-out Tables
The installation way:
A : By weldeding procedure, the steel decking floor sheet is fusion welded on the steel beam
B : The connections of steel floor decking hseet is fixed by clamp
C : Nails is fixed on the composite wind beam by welding gun
D : Department will meet with a gun fixation nail scissors
E : colligate steelfabric as the desgin requirement
F : bolt pouring
Advantages
1) light in weight, high intensity,huge loading capacity as well as good anti-earthquake capacity
2) simple in construction operation, easy to install
3) can take place of conventional templates and eliminate the disadvantages of the traditional
4) can act as a part of the structure of weight bearing, to reduce the cost of material
5) enable easy operation in reinforecement, wiring, piping floor decking steel sheet is roll formed by roll forming machine, mainly using galvanized steel, at thickness 0.8-1.2mm, simple shape with high rip and high strength.
6) Put the panel above the welded wire net, fill cement between them
Our service:We can supplier a service for the follow products Steel Structure,Prefabricated House,Galvanized Steel Coil,Galvalume Steel Coil,PPGI/PPGL,Galvanized Steel Sheet , Galvalume Steel Sheet,Cold Storage Panel,Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel,Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel the best service :
1.Sample free.the freight cost will be paid by customers.
2.You are very welcome to visit our factory before the order,or during the prodction or after the production before loading.
3.We are very professional in all kinds of different payment terms,FOB,CIF,CFR,CIP by sea container or by train.
4.For the steel frame you are very welcome to offer your own design,or you give us your ideas,we can supplies our design,the production,the loading all for you.
